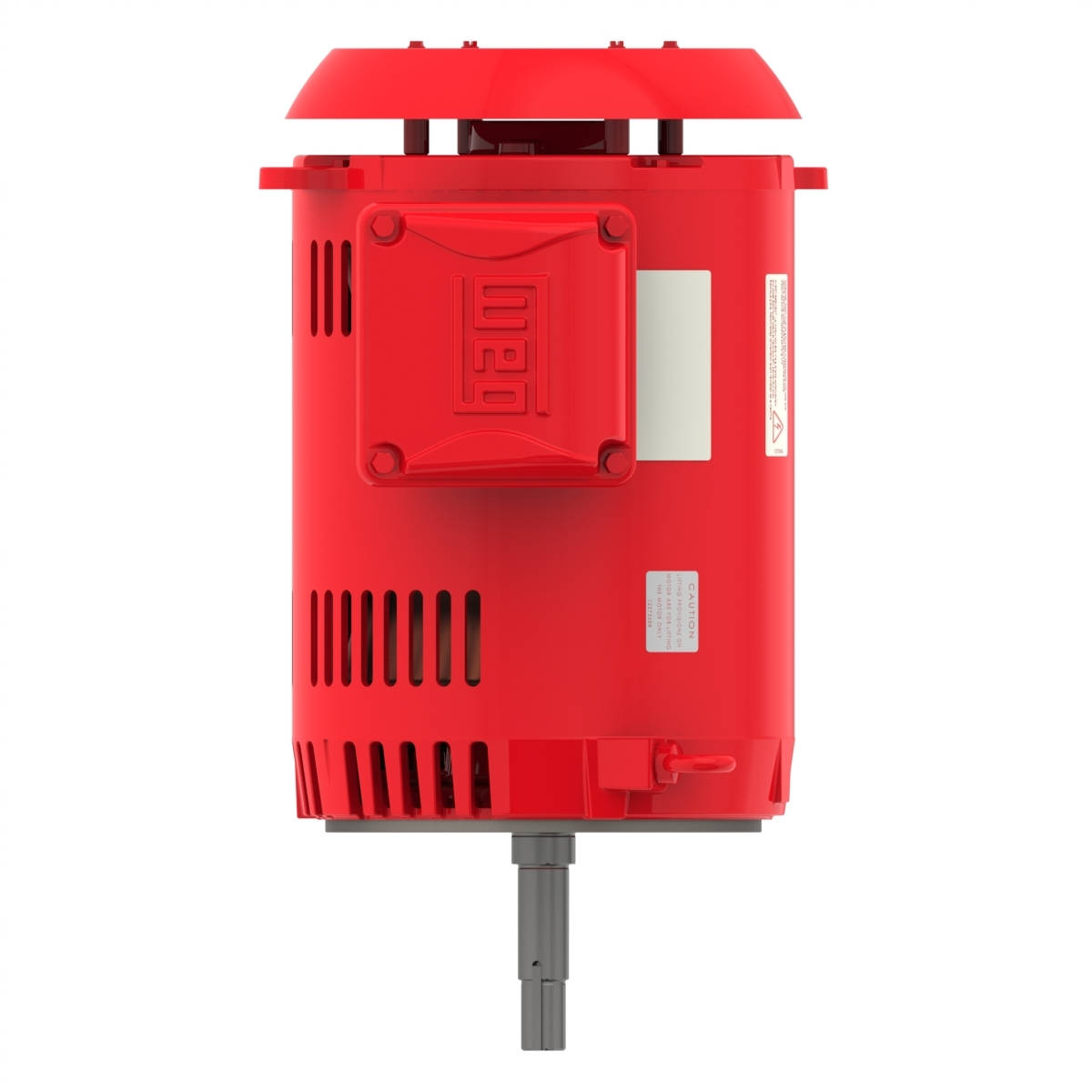

Motor/Control Division

Frame	254/6JM
Output	25 HP (18.5 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3530 rpm
Slip	1.94 %
Rated voltage	230/460 V
Rated current	58.0/29.0 A
L. R. Amperes	360/180 A
LRC	6.2x(Code G)
No load current	22.4/11.2 A
Rated torque	37.2 ft.lb
Locked rotor torque	180 %
Breakdown torque	280 %
Locked rotor time	16s (cold) 9s (hot)

Moment of inertia (J)	0.8718 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	W-6
Rotation?	Both (CW and CCW)
Noise level?	70.0 dB(A)
Approx. weight?	169 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
90.2	91.0	91.0

Power factor

50%	75%	100%
0.75	0.84	0.88

Frame	254/6JM
Output	25 HP (18.5 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2900 rpm
Slip	3.33 %
Rated voltage	190-220/380 V
Rated current	71.4-61.7/35.7 A
L. R. Amperes	371-321/186 A
LRC	5.2x(Code E)
No load current	21.7-18.8/10.9 A
Rated torque	45.3 ft.lb
Locked rotor torque	130 %
Breakdown torque	210 %
Locked rotor time	12s (cold) 7s (hot)

Moment of inertia (J)	0.8718 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	W-6
Rotation?	Both (CW and CCW)
Noise level?	68.0 dB(A)
Approx. weight?	169 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
90.3	89.5	87.6

Power factor

50%	75%	100%
0.81	0.88	0.90

Frame	254/6JM
Output	25 HP (18.5 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2920 rpm
Slip	2.67 %
Rated voltage	415 V
Rated current	33.4 A
L. R. Amperes	207 A
LRC	6.2x(Code G)
No load current	14.4 A
Rated torque	45.0 ft.lb
Locked rotor torque	160 %
Breakdown torque	250 %
Locked rotor time	10s (cold) 6s (hot)

Moment of inertia (J)	0.8718 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Enclosure	IC01 - ODP
Mounting	W-6
Rotation?	Both (CW and CCW)
Noise level?	68.0 dB(A)
Approx. weight?	169 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
89.6	89.8	88.7

Power factor

50%	75%	100%
0.71	0.82	0.87

Features

Frame Material	Rolled Steel
Impregnation Method	Dip and Bake Polyester
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	1.732"
Terminal Block	Without
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 3002 207N (ISO 12944 - C2)
Grounding Lugs	Superior
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	With
Resilient Base	Without
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	12
Fan material	Without fan
Screw cap	CARBON STEEL SAE 1010/20
NDE bearing Seal	Without Bearing Seal
DE bearing Seal	Without Bearing Seal
Cable Press Material	Sem
