02536OP3HFP256JMV-S WEG 25HP JM Close-Coupled Fire Pump Electric Motor, 3600RPM

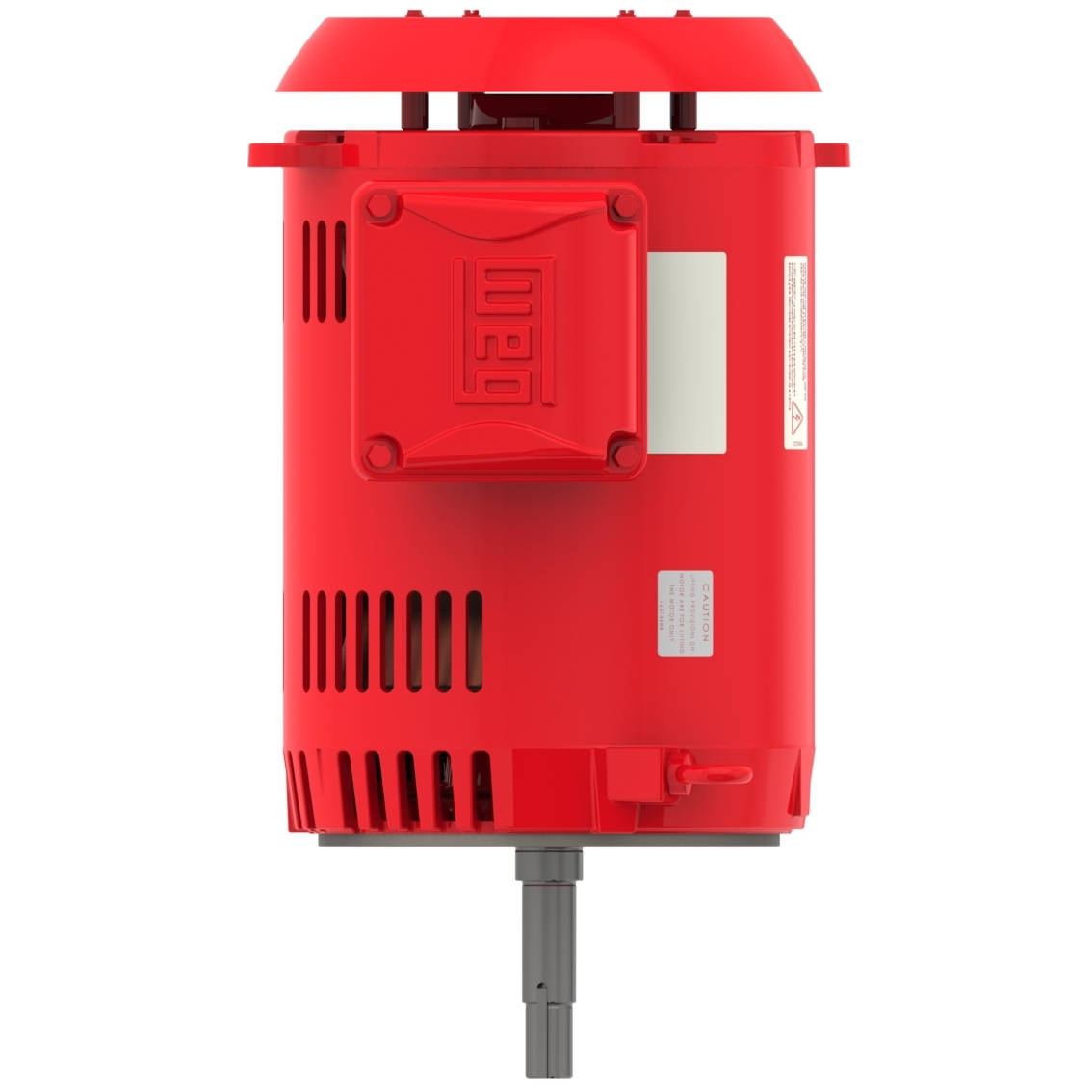

Enlarge Photo

Product ID: 02536OP3HFP256JMV-S

02536OP3HFP256JMV-S WEG 25HP JM Close-Coupled Fire Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 02536OP3HFP256JMV-S

Selected accessories will also be added to cart
$2,093.28 / Each
Quantity:
IC01 - ODP, 254JM/256JM Frame, 575VAC 60Hz 3 Phase, 13550955, High Efficiency, Footless, Rolled Steel

Electric Motors

Frame254/6JM
Output25 HP (18.5 kW)
Number of Poles2
Frequency60 Hz
Rated speed3530 rpm
Slip1.94 %
Rated voltage575 V
Rated current23.2 A
L. R. Amperes144 A
LRC6.2x(Code G)
No load current8.94 A
Rated torque37.2 ft.lb
Locked rotor torque180 %
Breakdown torque280 %
Locked rotor time16s (cold) 9s (hot)
Moment of inertia (J)0.8718 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
EnclosureIC01 - ODP
MountingW-6
Rotation?Both (CW and CCW)
Noise level?70.0 dB(A)
Approx. weight?225 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
90.2  91.0  91.0

Power factor

50%75%100%
0.75  0.84  0.88

Features

Frame MaterialRolled Steel
Impregnation MethodDip and Bake Polyester
Regreasing SystemAt Drive end and Non-drive end
Main terminal box hole1.732"
Terminal BlockWithout
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 3002 207N (ISO 12944 - C2)
Grounding LugsSuperior
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Balancing Method1/2 Key
Drip CoverWith
Resilient BaseWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity6

Bearing details

 Drive EndNon Drive End
Bearing type6309 Z C3 6208 Z C3
SealingSem veda??o Without Bearing Seal
Lubrication interval15797 h 20000 h
Lubricant amount13 g 8 g
Grease TypeMobil Polyrex EM

Foundation loads

Max. tractionMax. compression
387 lb 612 lb

Type
Electric Motor
Input Phase
3-Phase
Speed
3600RPM
Horsepower
25HP
Enclosure
ODP
Input Voltage
575VAC
Frame
254JM/256JM
Application
Fire Pump
