/Products/Electric Motors/3 Phase/WEG 3-Phase Electric Motors/Cast Iron, ODP, W40/Foot Mount/02536OT3E256T-W40 WEG 25HP, General Purpose Electric Motor, 3600RPM

Click Image to Expand

Previous Next

Product ID: 02536OT3E256T-W40

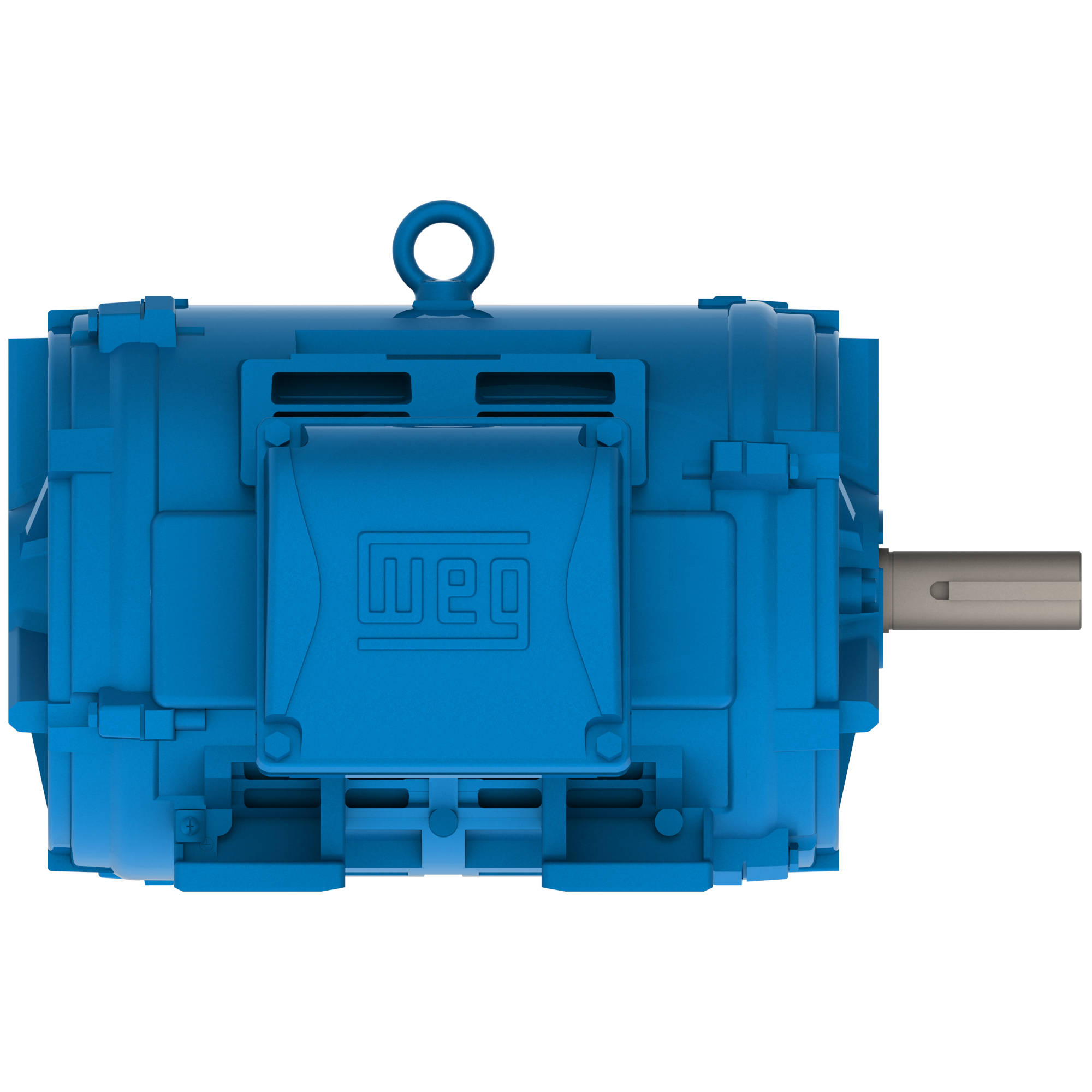

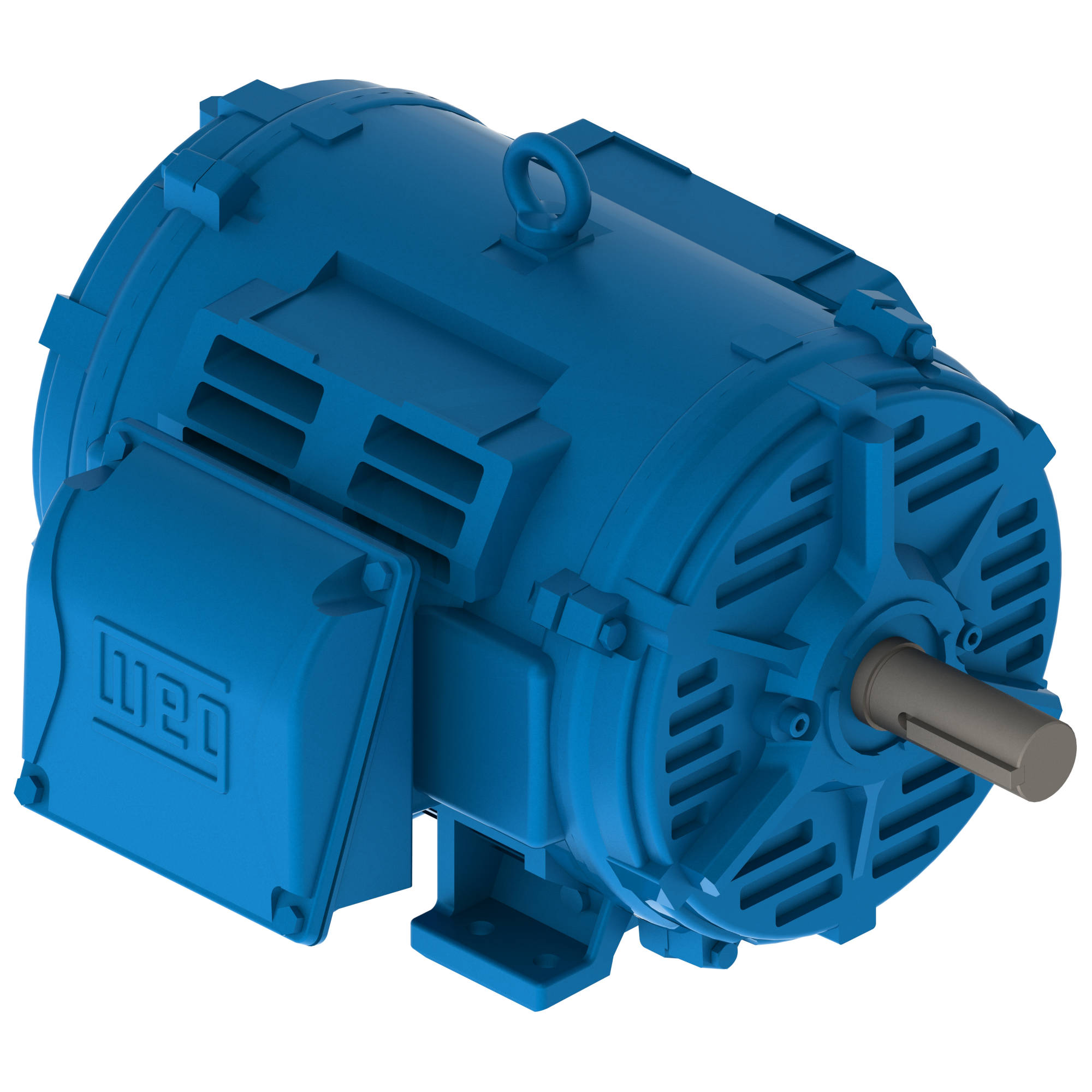

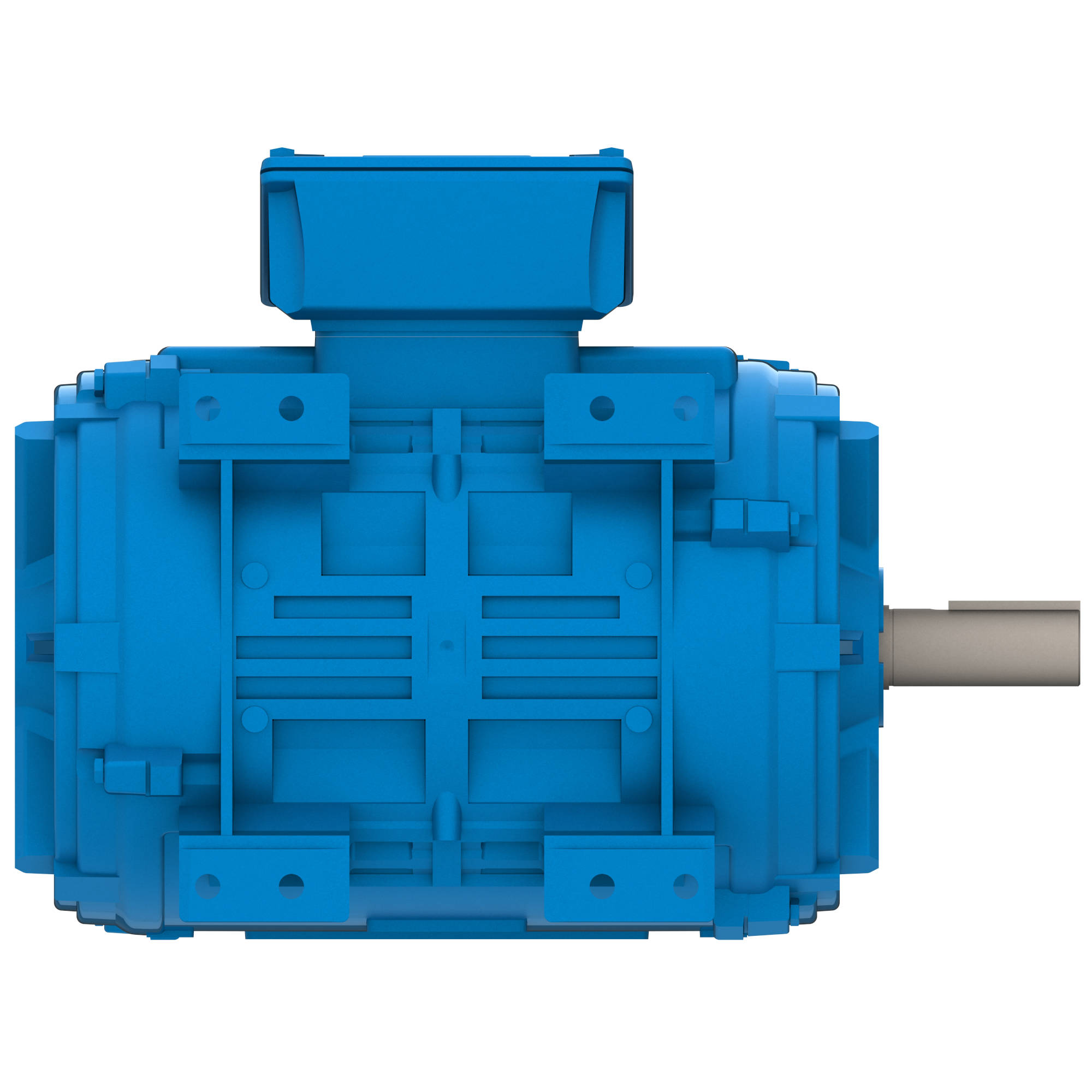

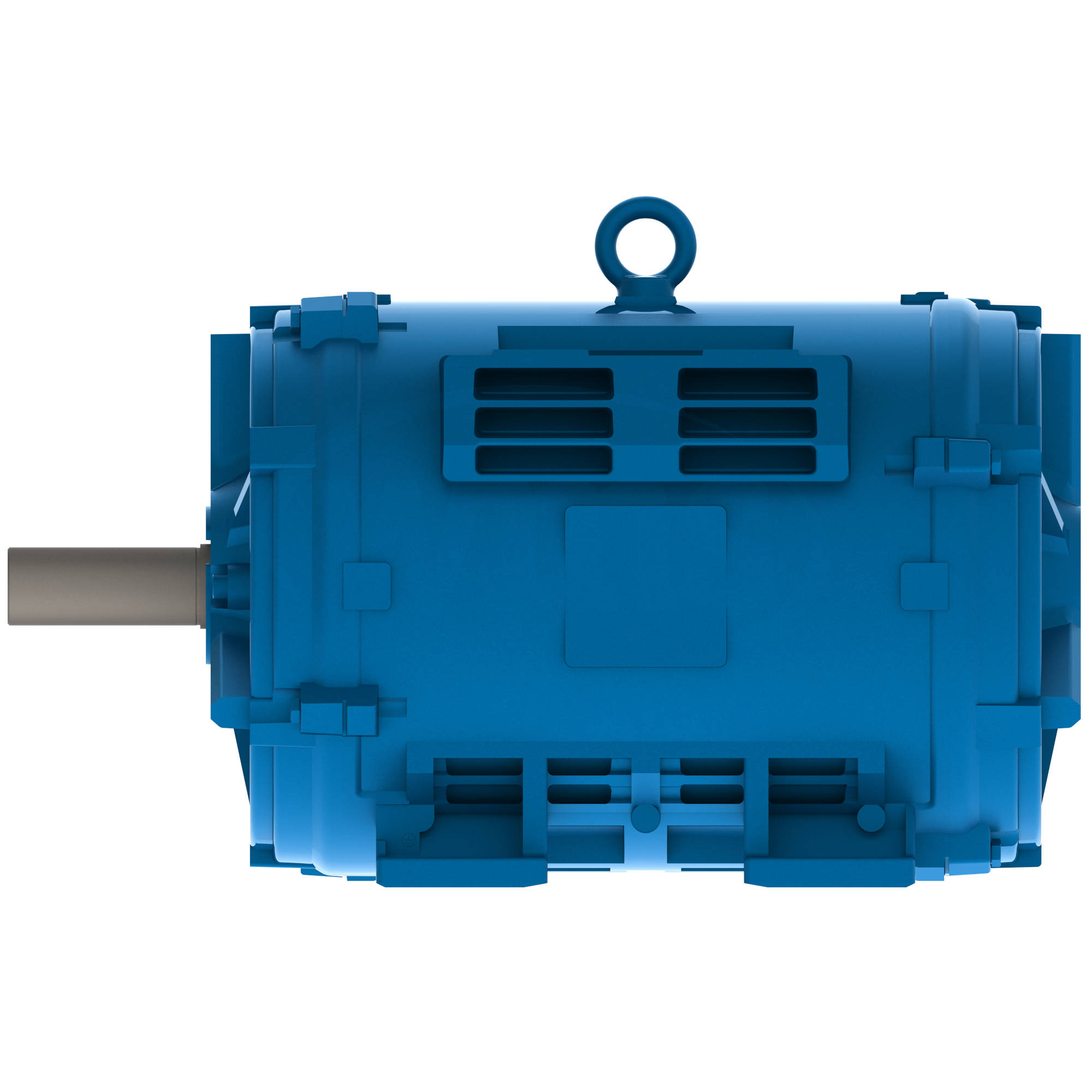

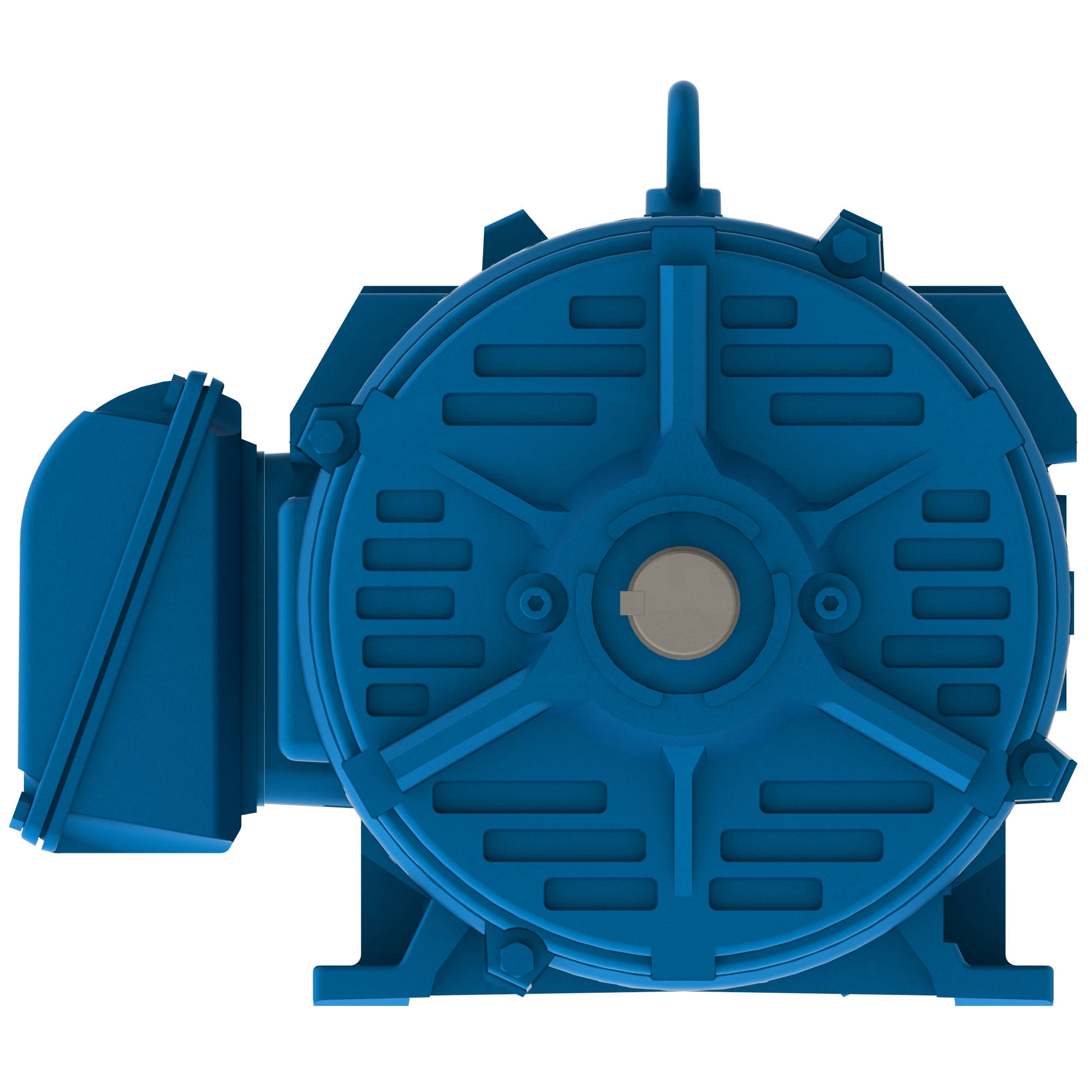

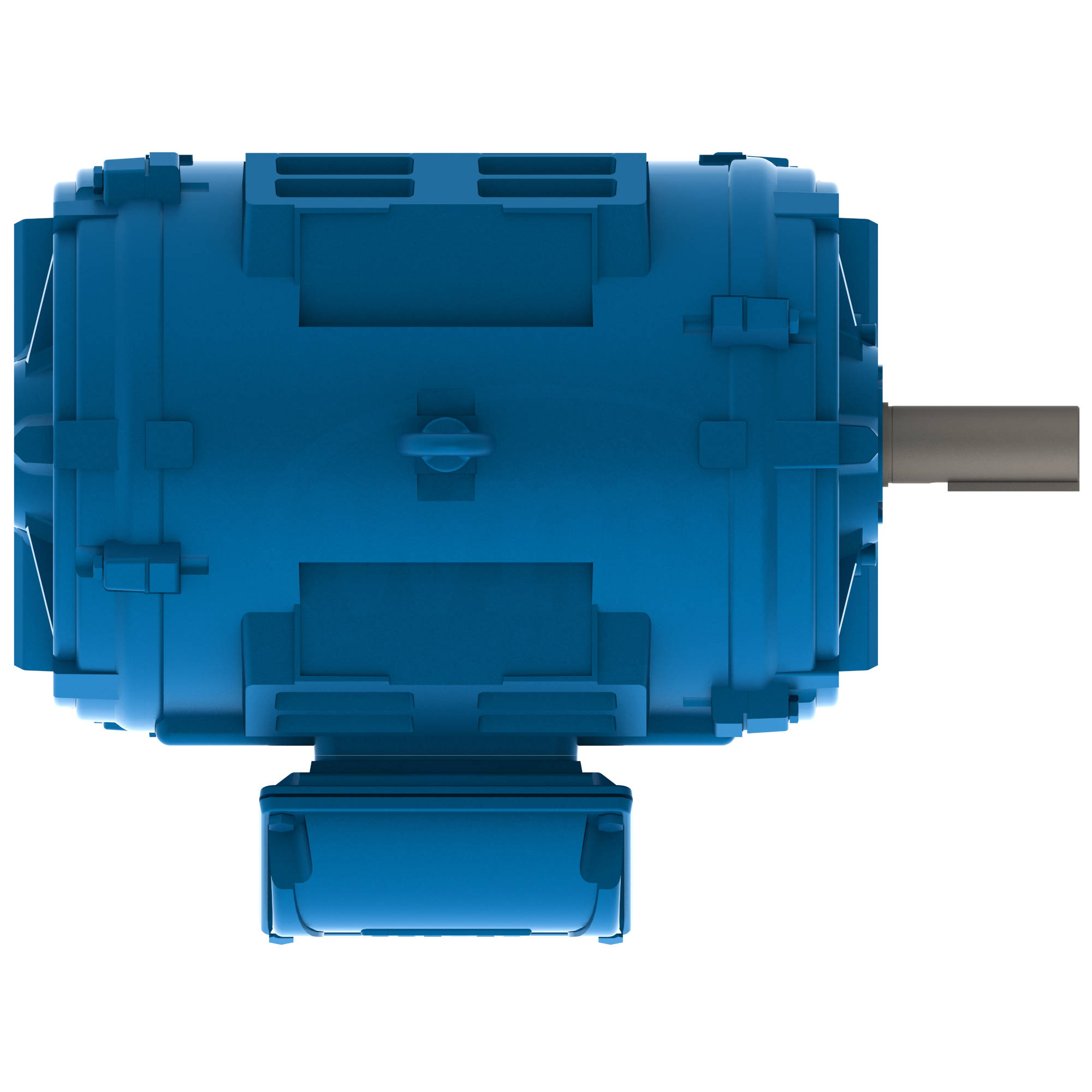

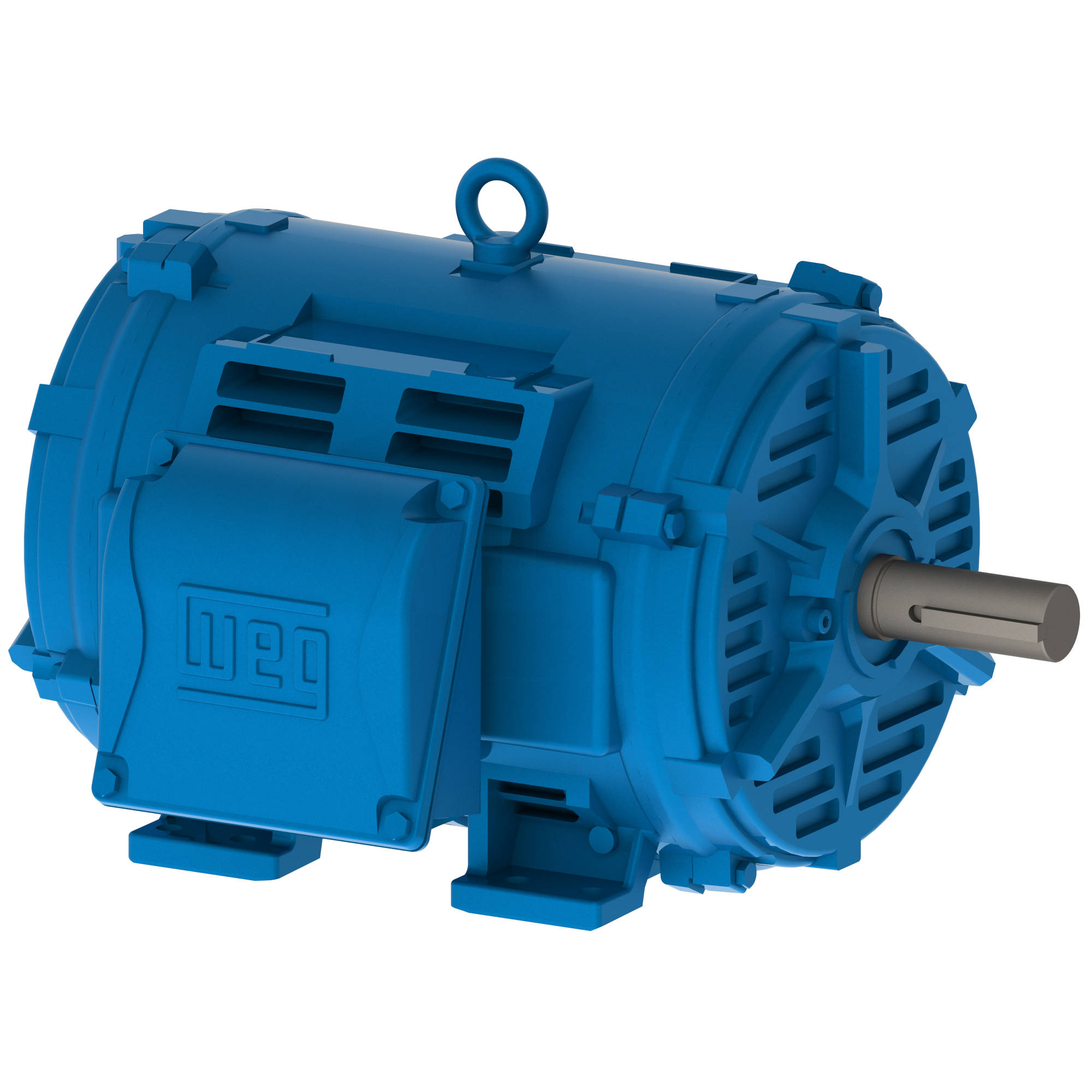

02536OT3E256T-W40 WEG 25HP, General Purpose Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 02536OT3E256T-W40

Selected accessories will also be added to cart

$1,903.71 / Each

Quantity:

IC01 - ODP, IP23, 254T/256T Frame, 230/460VAC 60Hz 3 Phase, 14366967, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 1-5/8" Keyed Shaft

Electric Motors

Frame	254/6T
Output	25 HP (18.5 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3535 rpm
Slip	1.81 %
Rated voltage	230/460 V
Rated current	57.6/28.8 A
L. R. Amperes	374/187 A
LRC	6.5x(Code G)
No load current	17.0/8.50 A
Rated torque	37.1 ft.lb
Locked rotor torque	200 %
Breakdown torque	280 %
Locked rotor time	19s (cold) 11s (hot)

Moment of inertia (J)	1.13 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation?	Both (CW and CCW)
Approx. weight?	237 lb

(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.0	91.7	91.7

Power factor

50%	75%	100%
0.77	0.85	0.88

Frame	254/6T
Output	20 HP (15 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2935 rpm
Slip	2.17 %
Rated voltage	380 V
Rated current	28.2 A
L. R. Amperes	192 A
LRC	6.8x(Code H)
No load current	8.20 A
Rated torque	35.8 ft.lb
Locked rotor torque	200 %
Breakdown torque	260 %
Locked rotor time	14s (cold) 8s (hot)

Moment of inertia (J)	1.13 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation?	Both (CW and CCW)
Approx. weight?	237 lb

(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
89.5	89.9	91.9

Power factor

50%	75%	100%
0.77	0.85	0.88

Frame	254/6T
Output	20 HP (15 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2945 rpm
Slip	1.83 %
Rated voltage	400 V
Rated current	27.4 A
L. R. Amperes	186 A
LRC	6.8x(Code H)
No load current	9.10 A
Rated torque	35.7 ft.lb
Locked rotor torque	220 %
Breakdown torque	300 %
Locked rotor time	18s (cold) 10s (hot)

Moment of inertia (J)	1.13 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation?	Both (CW and CCW)
Approx. weight?	237 lb

(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
89.6	90.1	91.9

Power factor

50%	75%	100%
0.73	0.82	0.86

Frame	254/6T
Output	20 HP (15 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2950 rpm
Slip	1.67 %
Rated voltage	415 V
Rated current	27.0 A
L. R. Amperes	200 A
LRC	7.4x(Code J)
No load current	10.0 A
Rated torque	35.6 ft.lb
Locked rotor torque	229 %
Breakdown torque	320 %
Locked rotor time	14s (cold) 8s (hot)

Moment of inertia (J)	1.13 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation?	Both (CW and CCW)
Approx. weight?	237 lb

(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
89.6	90.1	91.9

Power factor

50%	75%	100%
0.69	0.79	0.84

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	NPT 1 1/2"
Terminal Block	Without
Shaft Locking Device	Without
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	No-Without Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
