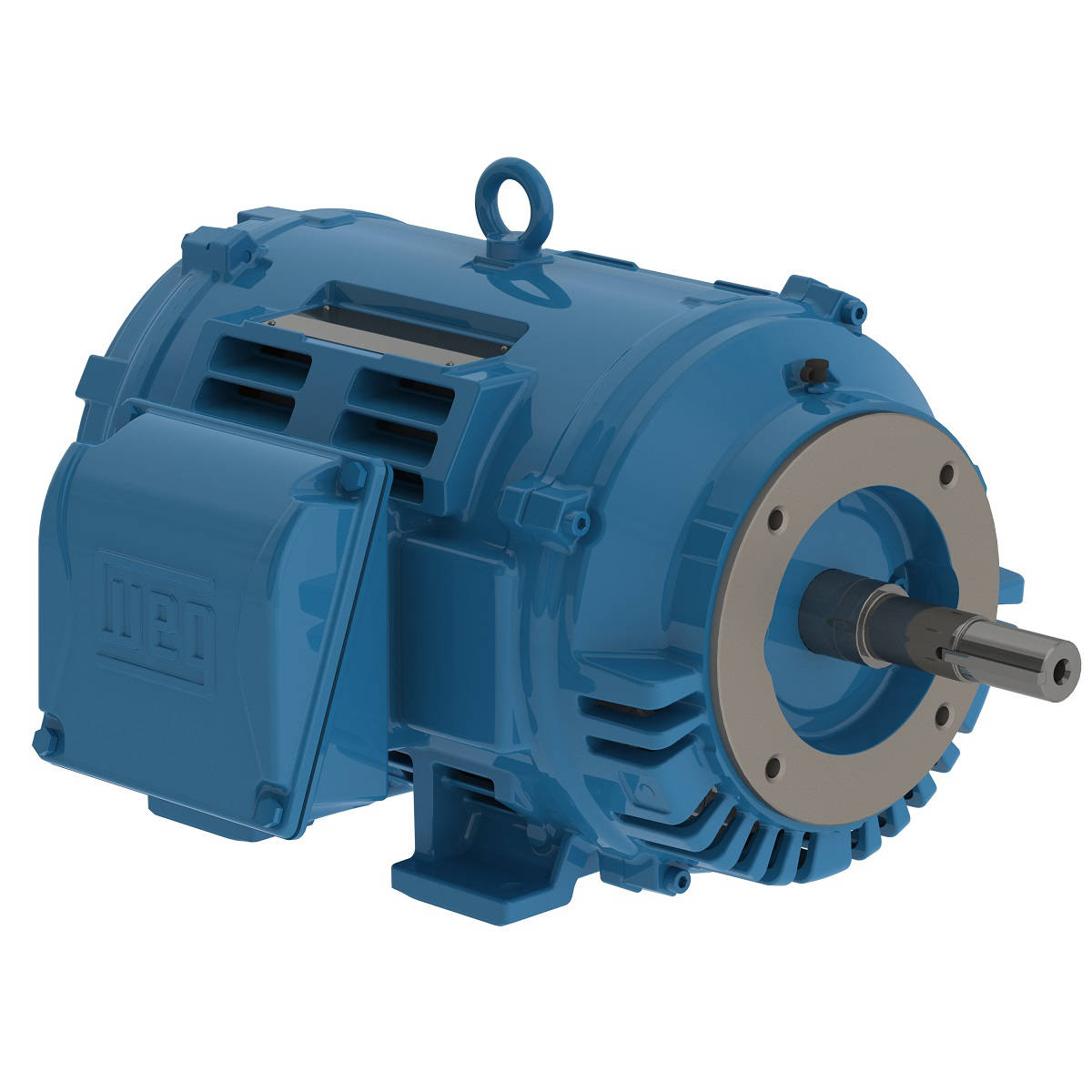

02536OT3H256JM-W40 WEG 25HP JM Close-Coupled Pump Electric Motor, 3600RPM
Enlarge Photo

Product ID: 02536OT3H256JM-W40

02536OT3H256JM-W40 WEG 25HP JM Close-Coupled Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 02536OT3H256JM-W40

Selected accessories will also be added to cart
$2,312.22 / Each
Quantity:
IC01 - ODP, IP23, 254JM/256JM Frame, 575VAC 60Hz 3 Phase, 14484688, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame

Electric Motors

Frame254/6JM
Output25 HP (18.5 kW)
Number of Poles2
Frequency60 Hz
Rated speed3535 rpm
Slip1.81 %
Rated voltage575 V
Rated current23.0 A
L. R. Amperes150 A
LRC6.5x(Code G)
No load current6.80 A
Rated torque37.1 ft.lb
Locked rotor torque200 %
Breakdown torque280 %
Locked rotor time19s (cold) 11s (hot)
Moment of inertia (J)1.13 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Approx. weight?263 lb

(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
91.0  91.7  91.7

Power factor

50%75%100%
0.77  0.85  0.88

Features

Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Regreasing SystemAt Drive end and Non-drive end
Main terminal box holeNPT 1 1/2"
Terminal BlockWithout
Shaft Locking DeviceWithout
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 203A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity6
Type
Electric Motor
Input Phase
3-Phase
Speed
3600RPM
Horsepower
25HP
Enclosure
ODP
Input Voltage
575VAC
Frame
254JM/256JM
