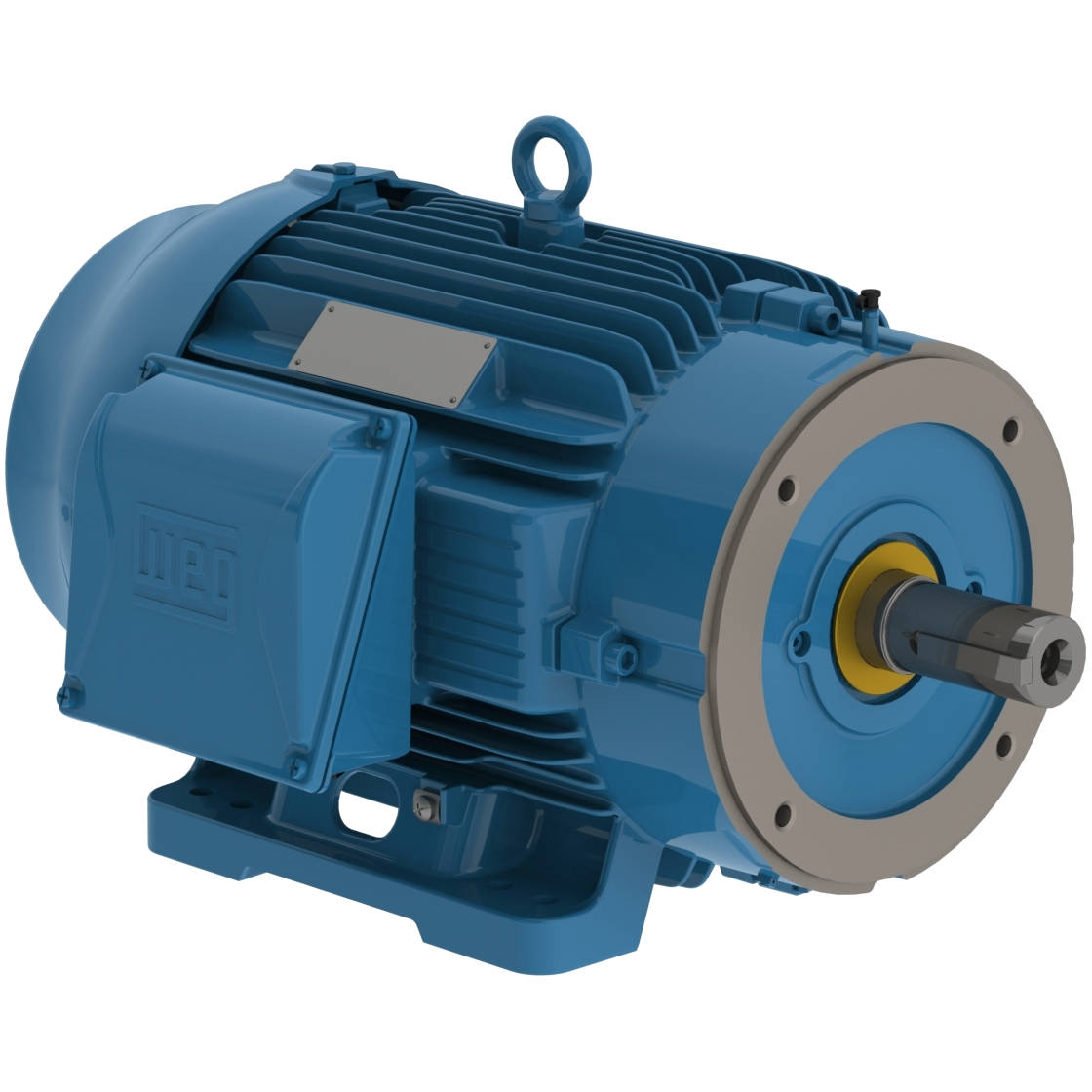

02536ST3QIE284TSC-W22 WEG 25HP Severe Duty Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 02536ST3QIE284TSC-W2

Selected accessories will also be added to cart

$3,175.52 / Each

Quantity:

IC411 - TEFC, IP55, 284TSC/286TSC Frame, 460VAC 60Hz 3 Phase, 13923290, NEMA Premium Efficiency, Foot Mounted, C-Face, Cast Iron Frame, IEEE 841, 1-5/8" Keyed Shaft

Electric Motors

Frame	284/6TSC
Output	25 HP (18.5 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3545 rpm
Slip	1.53 %
Rated voltage	460 V
Rated current	28.8 A
L. R. Amperes	181 A
LRC	6.3x(Code G)
No load current	8.00 A
Rated torque	37.0 ft.lb
Locked rotor torque	200 %
Breakdown torque	250 %
Locked rotor time	30s (cold) 17s (hot)

Moment of inertia (J)	2.69 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	72.0 dB(A)
Approx. weight?	391 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.0	91.7	91.7

Power factor

50%	75%	100%
0.79	0.86	0.88

Frame	284/6TSC
Output	20 HP (15 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2945 rpm
Slip	1.83 %
Rated voltage	380 V
Rated current	27.9 A
L. R. Amperes	173 A
LRC	6.2x(Code G)
No load current	8.00 A
Rated torque	35.7 ft.lb
Locked rotor torque	200 %
Breakdown torque	240 %
Locked rotor time	25s (cold) 14s (hot)

Moment of inertia (J)	2.69 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	67.0 dB(A)
Approx. weight?	391 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
90.2	90.7	91.9

Power factor

50%	75%	100%
0.79	0.86	0.89

Frame	284/6TSC
Output	20 HP (15 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2950 rpm
Slip	1.67 %
Rated voltage	400 V
Rated current	26.8 A
L. R. Amperes	185 A
LRC	6.9x(Code H)
No load current	8.50 A
Rated torque	35.6 ft.lb
Locked rotor torque	229 %
Breakdown torque	280 %
Locked rotor time	25s (cold) 14s (hot)

Moment of inertia (J)	2.69 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	67.0 dB(A)
Approx. weight?	391 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
90.3	91.1	91.9

Power factor

50%	75%	100%
0.77	0.85	0.88

Frame	284/6TSC
Output	20 HP (15 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2955 rpm
Slip	1.50 %
Rated voltage	415 V
Rated current	26.1 A
L. R. Amperes	193 A
LRC	7.4x(Code H)
No load current	9.00 A
Rated torque	35.5 ft.lb
Locked rotor torque	240 %
Breakdown torque	300 %
Locked rotor time	25s (cold) 14s (hot)

Moment of inertia (J)	2.69 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	67.0 dB(A)
Approx. weight?	391 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
89.8	91.1	91.9

Power factor

50%	75%	100%
0.75	0.83	0.87

Frame	284/6TSC
Output	25 HP (18.5 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2910 rpm
Slip	3.00 %
Rated voltage	380 V
Rated current	34.9 A
L. R. Amperes	171 A
LRC	4.9x(Code E)
No load current	8.00 A
Rated torque	45.1 ft.lb
Locked rotor torque	160 %
Breakdown torque	200 %
Locked rotor time	25s (cold) 14s (hot)

Moment of inertia (J)	2.69 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	67.0 dB(A)
Approx. weight?	391 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.0	90.2	89.5

Power factor

50%	75%	100%
0.83	0.88	0.90

Frame	284/6TSC
Output	25 HP (18.5 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2930 rpm
Slip	2.33 %
Rated voltage	400 V
Rated current	33.3 A
L. R. Amperes	183 A
LRC	5.5x(Code F)
No load current	8.50 A
Rated torque	44.8 ft.lb
Locked rotor torque	180 %
Breakdown torque	220 %
Locked rotor time	25s (cold) 14s (hot)

Moment of inertia (J)	2.69 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	67.0 dB(A)
Approx. weight?	391 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.0	91.0	90.2

Power factor

50%	75%	100%
0.81	0.87	0.89

Frame	284/6TSC
Output	25 HP (18.5 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2935 rpm
Slip	2.17 %
Rated voltage	415 V
Rated current	31.8 A
L. R. Amperes	191 A
LRC	6.0x(Code F)
No load current	9.00 A
Rated torque	44.7 ft.lb
Locked rotor torque	190 %
Breakdown torque	240 %
Locked rotor time	25s (cold) 14s (hot)

Moment of inertia (J)	2.69 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	67.0 dB(A)
Approx. weight?	391 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.0	91.0	91.0

Power factor

50%	75%	100%
0.80	0.86	0.89

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Regreasing System	Stainless Steel, at Drive end and Non-drive end
Main terminal box hole	NPT 1 1/2"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Type T, Threaded
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs	Double
Fan Cover material	Cast Iron
Tropicalized Painting	According to IEEE-841 (96h)
Joints Seal	Molykote
Foot flatness	(0.005 pol) 0.127 mm
Fan material	Conductive Plastic
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
