/Products/Electric Motors/3 Phase/WEG 3-Phase Electric Motors/WEG 3-Phase Cast Iron, ODP, W40 Electric Motors/Foot Mount/03012OT3E326T-W40 WEG 30HP, General Purpose Electric Motor, 1200RPM

Product ID: 03012OT3E326T-W40

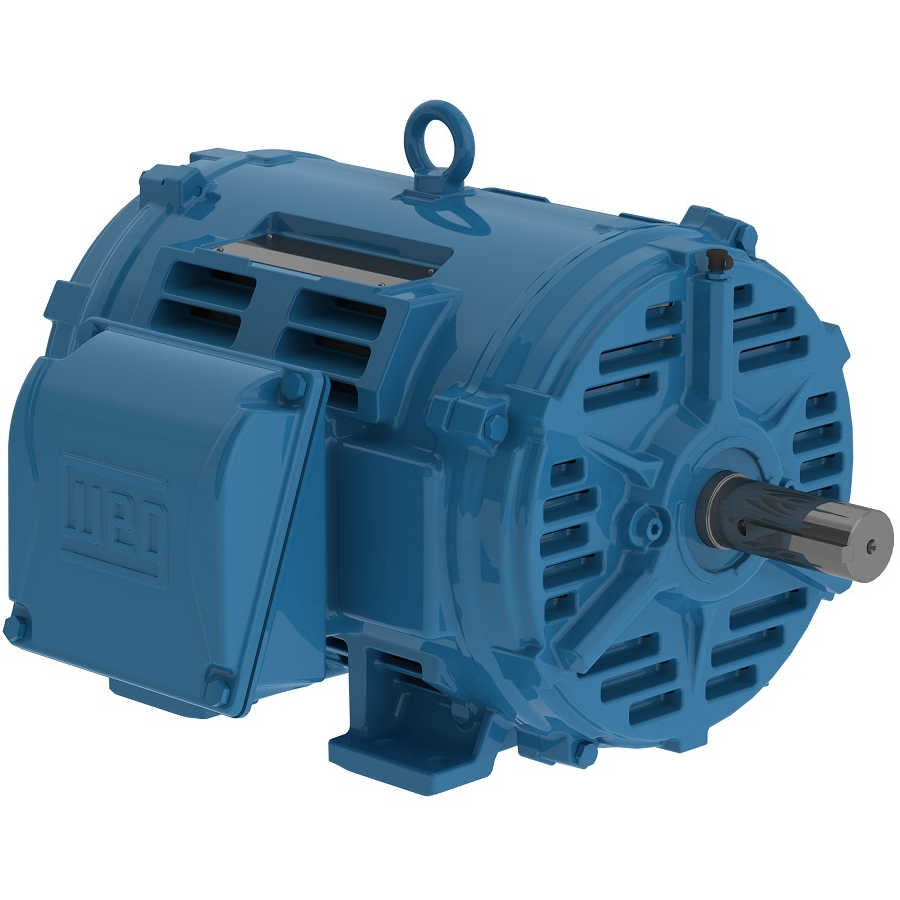

03012OT3E326T-W40 WEG 30HP, General Purpose Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: 03012OT3E326T-W40

Selected accessories will also be added to cart

$3,462.10 / Each

Quantity:

IC01 - ODP, IP23, 324T/326T Frame, 230/460/380VAC 50/60Hz 3 Phase, 14495600, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 2-1/8" Keyed Shaft

Electric Motors

Frame	324/6T
Output	30 HP (22 kW)
Number of Poles	6
Frequency	60 Hz
Rated speed	1182 rpm
Slip	1.50 %
Rated voltage	230/460 V
Rated current	72.0/36.0 A
L. R. Amperes	454/227 A
LRC	6.3x(Code G)
No load current	29.6/14.8 A
Rated torque	133 ft.lb
Locked rotor torque	200 %
Breakdown torque	240 %
Locked rotor time	30s (cold) 17s (hot)

Moment of inertia (J)	9.56 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	62.0 dB(A)
Approx. weight?	516 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
92.4	93.0	93.6

Power factor

50%	75%	100%
0.70	0.79	0.82

Frame	324/6T
Output	25 HP (18.5 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	980 rpm
Slip	2.00 %
Rated voltage	380 V
Rated current	36.5 A
L. R. Amperes	223 A
LRC	6.1x(Code G)
No load current	14.6 A
Rated torque	134 ft.lb
Locked rotor torque	160 %
Breakdown torque	229 %
Locked rotor time	25s (cold) 14s (hot)

Moment of inertia (J)	9.56 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	62.0 dB(A)
Approx. weight?	516 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.4	91.8	91.8

Power factor

50%	75%	100%
0.70	0.80	0.84

Frame	324/6T
Output	25 HP (18.5 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	980 rpm
Slip	2.00 %
Rated voltage	400 V
Rated current	35.5 A
L. R. Amperes	238 A
LRC	6.7x(Code H)
No load current	15.8 A
Rated torque	134 ft.lb
Locked rotor torque	180 %
Breakdown torque	260 %
Locked rotor time	23s (cold) 13s (hot)

Moment of inertia (J)	9.56 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	62.0 dB(A)
Approx. weight?	516 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.4	91.8	91.8

Power factor

50%	75%	100%
0.66	0.77	0.82

Frame	324/6T
Output	25 HP (18.5 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	980 rpm
Slip	2.00 %
Rated voltage	415 V
Rated current	34.6 A
L. R. Amperes	235 A
LRC	6.8x(Code H)
No load current	16.8 A
Rated torque	134 ft.lb
Locked rotor torque	200 %
Breakdown torque	280 %
Locked rotor time	23s (cold) 13s (hot)

Moment of inertia (J)	9.56 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	62.0 dB(A)
Approx. weight?	516 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.6	91.8	91.8

Power factor

50%	75%	100%
0.63	0.75	0.81

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	NPT 2"
Terminal Block	Without
Shaft Locking Device	Without
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	12
