03018OP3HFP286JMV-W40 WEG 30HP JM Fire Pump Electric Motor, 1800RPM

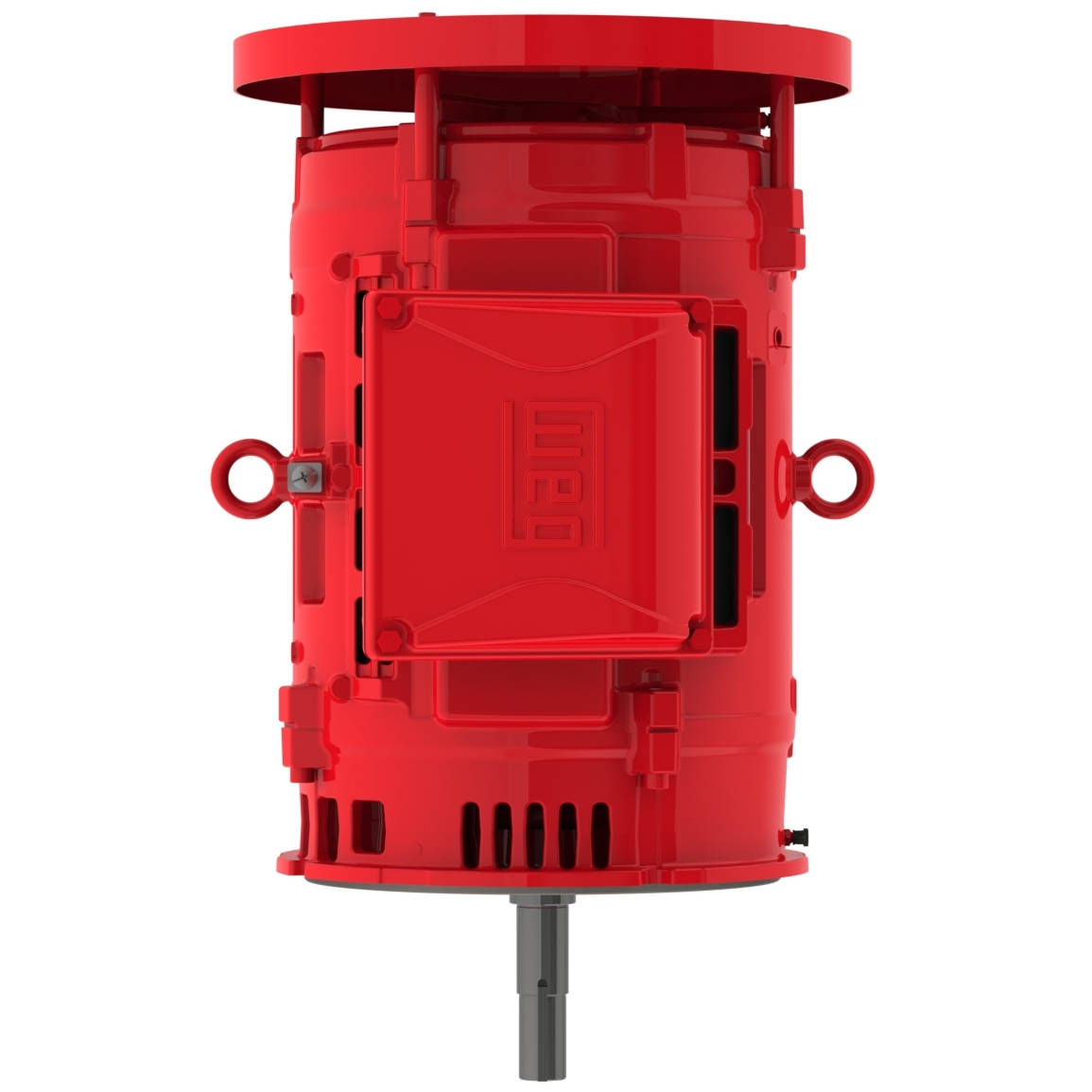

Enlarge Photo

Product ID: 03018OP3HFP286JMV-W4

03018OP3HFP286JMV-W40 WEG 30HP JM Fire Pump Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 03018OP3HFP286JMV-W4

Selected accessories will also be added to cart
$3,028.67 / Each
Quantity:
IC01 - ODP, IP23, 284JM/286JM Frame, 575VAC 60Hz 3 Phase, 14832408, High Efficiency, Footless, Vertical Mount, Cast Iron Frame

Electric Motors

Frame284/6JM
Output30 HP (22 kW)
Number of Poles4
Frequency60 Hz
Rated speed1765 rpm
Slip1.94 %
Rated voltage575 V
Rated current28.5 A
L. R. Amperes168 A
LRC5.9x(Code F)
No load current8.80 A
Rated torque89.3 ft.lb
Locked rotor torque250 %
Breakdown torque250 %
Locked rotor time39s (cold) 22s (hot)
Moment of inertia (J)3.70 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingW-6
Rotation?Both (CW and CCW)
Approx. weight?390 lb

(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
91.7  92.4  92.4

Power factor

50%75%100%
0.71  0.80  0.84

Features

Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Regreasing SystemAt Drive end and Non-drive end
Main terminal box holeNPT 1 1/2"
Terminal BlockWithout
Shaft Locking DeviceWithout
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 3002 203A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Balancing Method1/2 Key
Drip CoverWith
Overload protector (phenolic)Without overload protector

Bearing details

 Drive EndNon Drive End
Bearing type6311 Z C3 6211 Z C3
SealingSem veda??o Without Bearing Seal
Lubrication interval20000 h 20000 h
Lubricant amount18 g 11 g
Grease TypeMobil Polyrex EM

Type
Electric Motor
Input Phase
3-Phase
Speed
1800RPM
Horsepower
30HP
Enclosure
ODP
Input Voltage
575VAC
Frame
284JM/286JM
Application
Fire Pump
