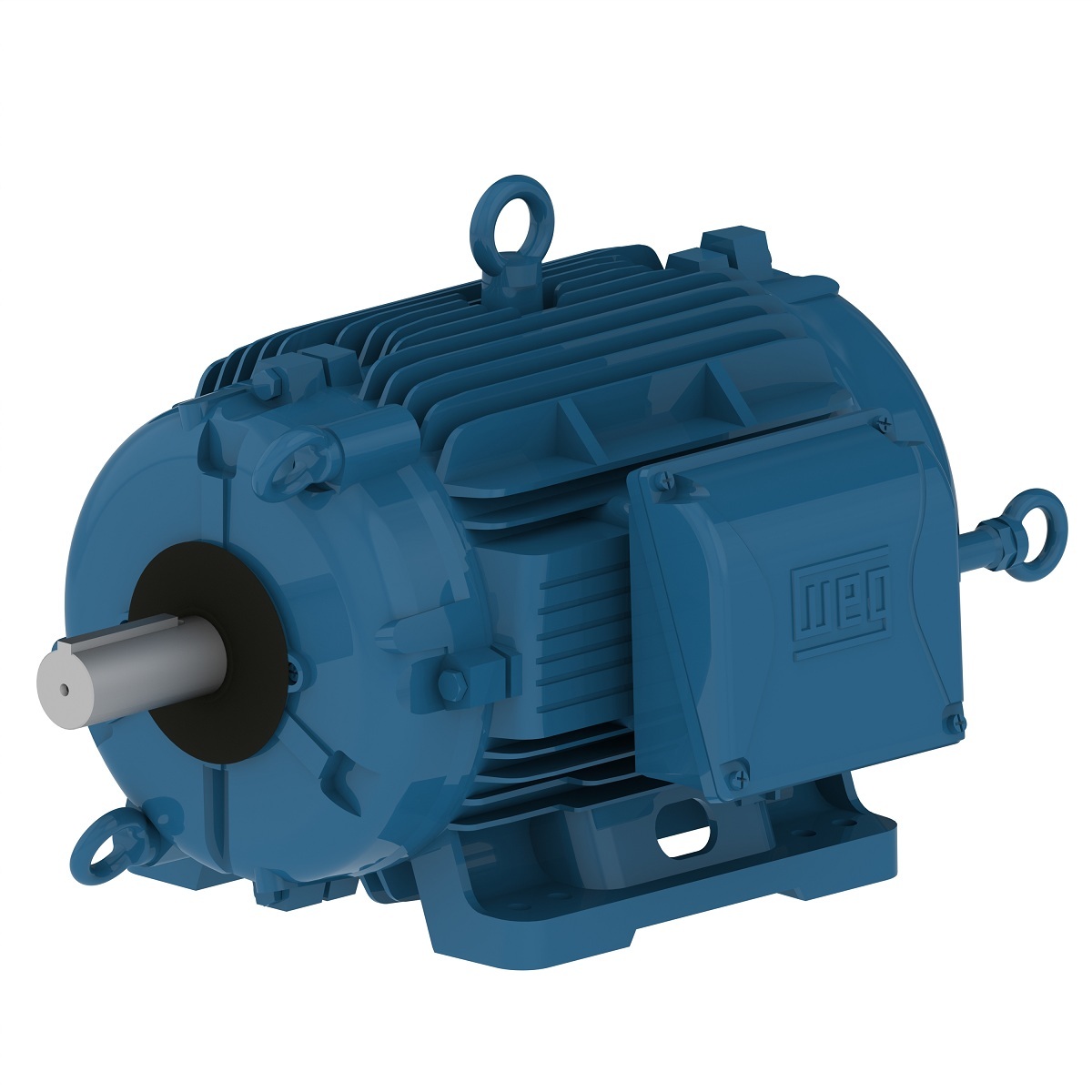

03018AT3PCT286T-W22 WEG 30HP Cooling Tower Electric Motor, 1800RPM
Enlarge Photo

Product ID: 03018AT3PCT286T-W22

03018AT3PCT286T-W22 WEG 30HP Cooling Tower Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 03018AT3PCT286T-W22

Selected accessories will also be added to cart
$3,426.50 / Each
Quantity:
IC410 - TEAO, IP55, 284T/286T Frame, 200V 3-Phase 60Hz, Foot Mount, NEMA Premium Efficiency, 12127069

Electric Motors

Frame284/6T
Output30 HP (22 kW)
Number of Poles4
Frequency60 Hz
Rated speed1765 rpm
Slip1.94 %
Rated voltage200 V
Rated current80.7 A
L. R. Amperes492 A
LRC6.1x(Code G)
No load current29.9 A
Rated torque88.1 ft.lb
Locked rotor torque240 %
Breakdown torque240 %
Locked rotor time36s (cold) 20s (hot)
Moment of inertia (J)5.85 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC410 - TEAO
MountingF-2
Rotation?Both (CW and CCW)
Noise level?63.0 dB(A)
Approx. weight?443 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
93.0  93.0  93.6

Power factor

50%75%100%
0.70  0.80  0.84

Features

Frame MaterialCast Iron
Impregnation MethodDouble impregnation polyester
Space Heater Voltage110-127/200-240 V
Main terminal box holeNPT 1 1/2"
Terminal BlockWithout
Shaft Locking DeviceWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 202E (ISO 12944 - C4)
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingComplete (200h)
Joints SealPermatex
Fan materialWithout fan
Bearing capYes- Bearing Cap
Drip CoverWithout

Bearing details

 Drive EndNon Drive End
Bearing type6311 2RS C3 6211 2RS C3
SealingV'Ring V'Ring
Lubrication interval- -
Lubricant amount- -
Grease TypeMobil Polyrex EM

Foundation loads

Max. tractionMax. compression
712 lb 1156 lb
Type
Electric Motor
Input Phase
3-Phase
Speed
1800RPM
Application
Cooling Tower
Horsepower
30HP
Enclosure
TEAO
Frame
284T/286T
