/Products/Electric Motors/3 Phase/WEG 3-Phase Electric Motors/Fire Pump/Foot Mount, Cast Iron/03018OP3EFP286TS-W40 WEG 30HP Fire Pump Electric Motor, 1800RPM

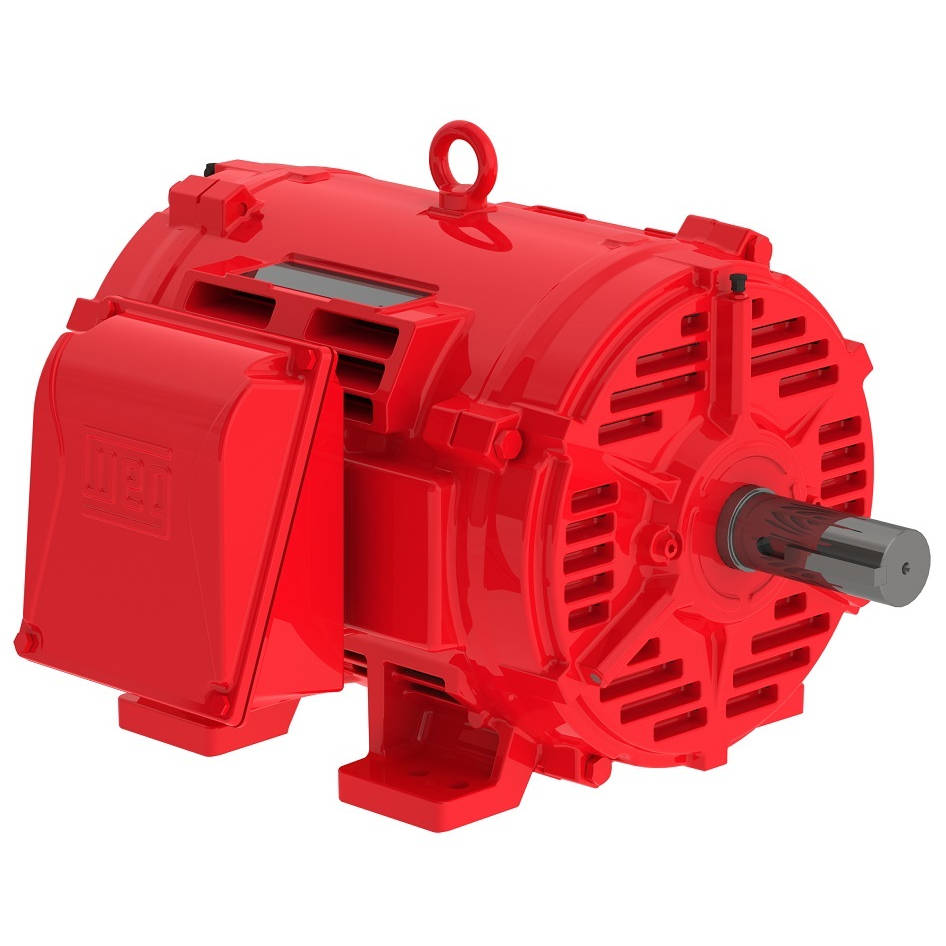

03018OP3EFP286TS-W40 WEG 30HP Fire Pump Electric Motor, 1800RPM
Enlarge Photo

Product ID: 03018OP3EFP286TS-W40

03018OP3EFP286TS-W40 WEG 30HP Fire Pump Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 03018OP3EFP286TS-W40

Selected accessories will also be added to cart
$1,876.12 / Each
Quantity:
IC01 - ODP, IP23, 284TS/286TS Frame, 230/460VAC 60Hz 3 Phase, 14490659, High Efficiency, Foot Mounted, Cast Iron Frame, 1-5/8" Keyed Shaft

Electric Motors

Frame284/6TS
Output30 HP (22 kW)
Number of Poles4
Frequency60 Hz
Rated speed1765 rpm
Slip1.94 %
Rated voltage230/460 V
Rated current71.2/35.6 A
L. R. Amperes420/210 A
LRC5.9x(Code F)
No load current22.0/11.0 A
Rated torque89.3 ft.lb
Locked rotor torque250 %
Breakdown torque250 %
Locked rotor time39s (cold) 22s (hot)
Moment of inertia (J)3.70 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Approx. weight?383 lb

(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
91.7  92.4  92.4

Power factor

50%75%100%
0.71  0.80  0.84
Frame284/6TS
Output30 HP (22 kW)
Number of Poles4
Frequency50 Hz
Rated speed1440 rpm
Slip4.00 %
Rated voltage380 V
Rated current42.3 A
L. R. Amperes233 A
LRC5.5x(Code F)
No load current11.0 A
Rated torque109 ft.lb
Locked rotor torque160 %
Breakdown torque180 %
Locked rotor time25s (cold) 14s (hot)
Moment of inertia (J)3.70 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Approx. weight?383 lb
(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
90.2  90.8  90.8

Power factor

50%75%100%
0.76  0.84  0.87
Frame284/6TS
Output30 HP (22 kW)
Number of Poles4
Frequency50 Hz
Rated speed1450 rpm
Slip3.33 %
Rated voltage400 V
Rated current40.4 A
L. R. Amperes250 A
LRC6.2x(Code G)
No load current13.0 A
Rated torque109 ft.lb
Locked rotor torque180 %
Breakdown torque200 %
Locked rotor time23s (cold) 13s (hot)
Moment of inertia (J)3.70 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Approx. weight?383 lb
(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
90.9  91.0  91.3

Power factor

50%75%100%
0.73  0.82  0.86
Frame284/6TS
Output30 HP (22 kW)
Number of Poles4
Frequency50 Hz
Rated speed1455 rpm
Slip3.00 %
Rated voltage415 V
Rated current39.8 A
L. R. Amperes243 A
LRC6.1x(Code G)
No load current14.0 A
Rated torque108 ft.lb
Locked rotor torque190 %
Breakdown torque210 %
Locked rotor time25s (cold) 14s (hot)
Moment of inertia (J)3.70 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Approx. weight?383 lb
(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
91.0  91.6  91.6

Power factor

50%75%100%
0.70  0.80  0.84

Features

Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Regreasing SystemAt Drive end and Non-drive end
Main terminal box holeNPT 1 1/2"
Terminal BlockWithout
Shaft Locking DeviceWithout
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 3002 203A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capNo-Without Bearing Cap
Bolt MaterialCarbon Steel
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Type
Electric Motor
Input Phase
3-Phase
Speed
1800RPM
Horsepower
30HP
Enclosure
ODP
Input Voltage
230VAC
Input Voltage
460VAC
Frame
284TS/286TS
Application
Fire Pump
