/Products/Electric Motors/3 Phase Explosion Proof/WEG 3-Phase Explosion Proof Electric Motors/C-Face, Foot Mount/03018XT3E286TC WEG 30HP Explosion Proof Electric Motor, 1800RPM

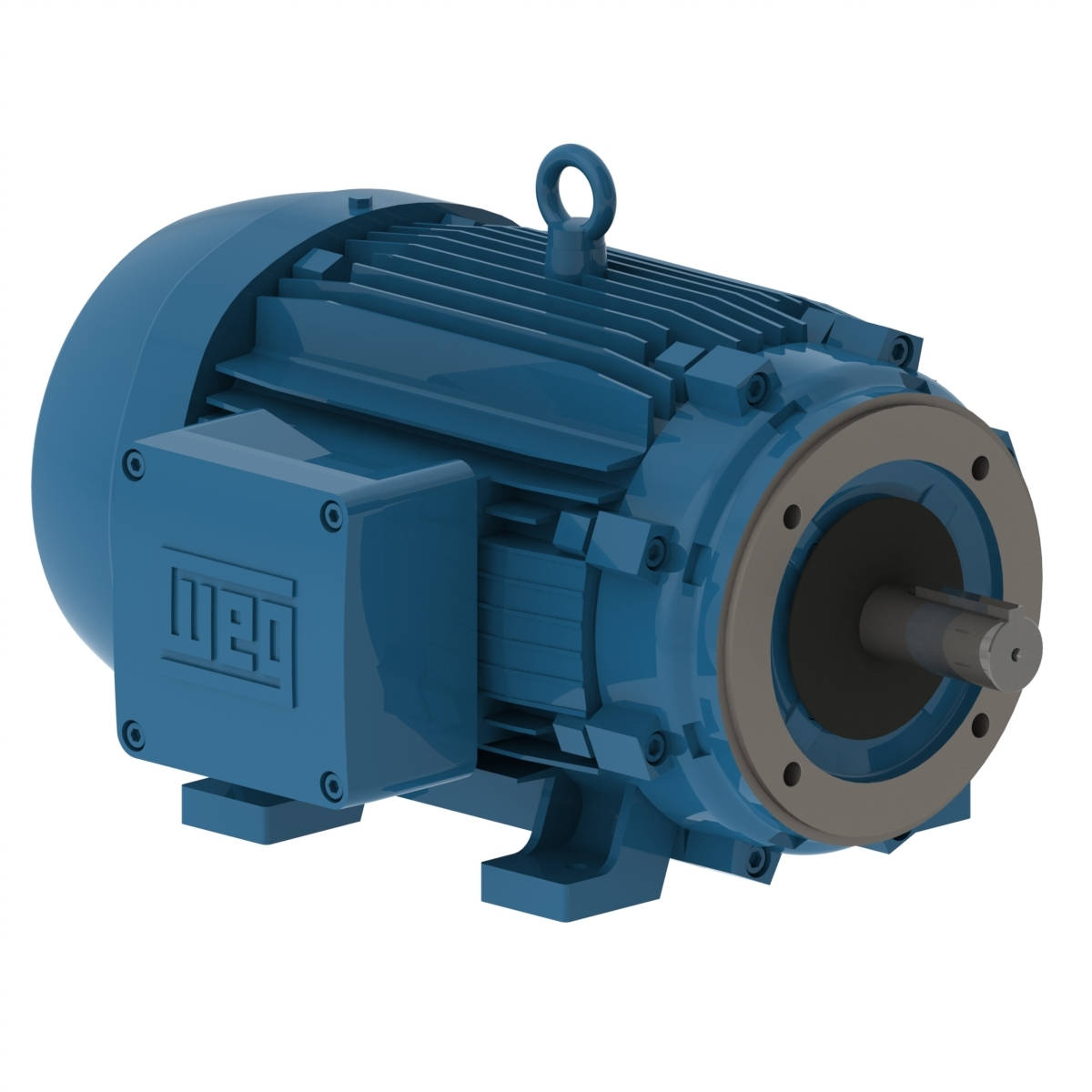

03018XT3E286TC WEG 30HP Explosion Proof Electric Motor, 1800RPM
Enlarge Photo

Product ID: 03018XT3E286TC

03018XT3E286TC WEG 30HP Explosion Proof Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 03018XT3E286TC

Selected accessories will also be added to cart
$4,158.08 / Each
Quantity:
IC411 - TEFC, IP55, 286TC Frame, 230/460/380VAC 50/60Hz 3 Phase, 14407014, NEMA Premium Efficiency, Foot Mounted, C-Face, Cast Iron Frame

Electric Motors

Frame286TC
Output30 HP (22 kW)
Number of Poles4
Frequency60 Hz
Rated speed1770 rpm
Slip1.67 %
Rated voltage230/460 V
Rated current70.2/35.1 A
L. R. Amperes428/214 A
LRC6.1x(Code G)
No load current24.6/12.3 A
Rated torque89.0 ft.lb
Locked rotor torque240 %
Breakdown torque240 %
Locked rotor time30s (cold) 17s (hot)
Moment of inertia (J)5.16 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?68.0 dB(A)
Approx. weight?505 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
93.0  93.0  93.6

Power factor

50%75%100%
0.70  0.80  0.84
Frame286TC
Output30 HP (22 kW)
Number of Poles4
Frequency50 Hz
Rated speed1455 rpm
Slip3.00 %
Rated voltage380 V
Rated current43.4 A
L. R. Amperes230 A
LRC5.3x(Code F)
No load current12.2 A
Rated torque108 ft.lb
Locked rotor torque170 %
Breakdown torque200 %
Locked rotor time23s (cold) 13s (hot)
Moment of inertia (J)5.16 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?64.0 dB(A)
Approx. weight?505 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
90.0  90.2  90.2

Power factor

50%75%100%
0.76  0.83  0.86
Frame286TC
Output30 HP (22 kW)
Number of Poles4
Frequency50 Hz
Rated speed1460 rpm
Slip2.67 %
Rated voltage400 V
Rated current41.1 A
L. R. Amperes247 A
LRC6.0x(Code G)
No load current13.1 A
Rated torque108 ft.lb
Locked rotor torque190 %
Breakdown torque220 %
Locked rotor time23s (cold) 13s (hot)
Moment of inertia (J)5.16 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?64.0 dB(A)
Approx. weight?505 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
90.5  91.0  91.0

Power factor

50%75%100%
0.73  0.82  0.85
Frame286TC
Output30 HP (22 kW)
Number of Poles4
Frequency50 Hz
Rated speed1465 rpm
Slip2.33 %
Rated voltage415 V
Rated current39.7 A
L. R. Amperes238 A
LRC6.0x(Code G)
No load current13.8 A
Rated torque108 ft.lb
Locked rotor torque220 %
Breakdown torque240 %
Locked rotor time21s (cold) 12s (hot)
Moment of inertia (J)5.16 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?64.0 dB(A)
Approx. weight?505 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
91.2  91.7  91.7

Power factor

50%75%100%
0.70  0.80  0.84

Features

Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Regreasing SystemAt Drive end and Non-drive end
Main terminal box holeNPT 1 1/2"
Terminal BlockWithout
Shaft Locking DeviceWithout
DrainSinterized, Exd
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 202P (ISO 12944 - C4)
Grounding LugsSingle
Fan Cover materialCast Iron
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Winding thermal protectionThermostat - 2 wires 1 per phase 155?C
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity12
Type
Electric Motor
Input Phase
3-Phase
Speed
1800RPM
Horsepower
30HP
Frame
286TC
Enclosure
TEFC
Enclosure
TEFC
