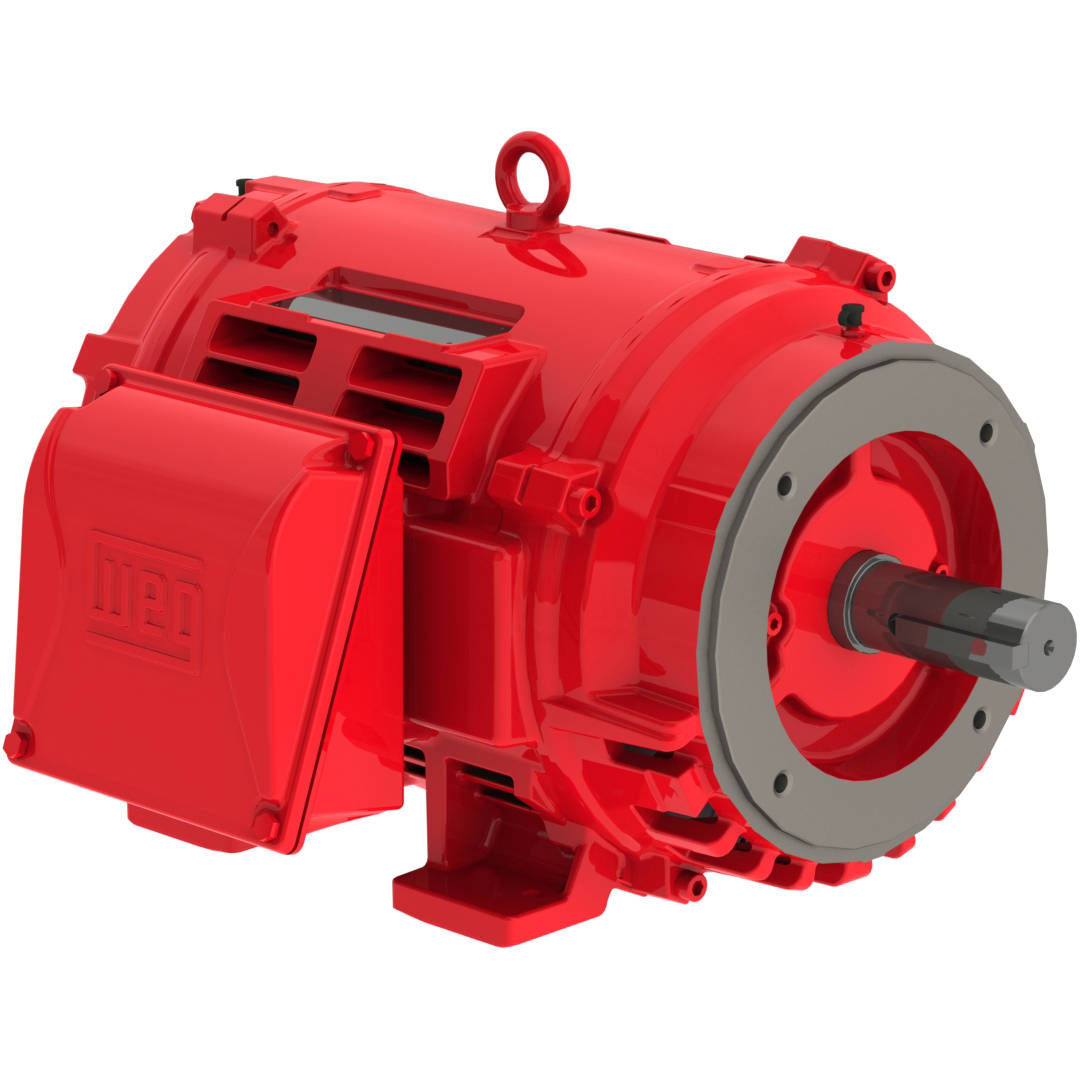

03036OP3EFP284TSC-W40 WEG 30HP Fire Pump Electric Motor, 3600RPM
Enlarge Photo

Product ID: 03036OP3EFP284TSC-W4

03036OP3EFP284TSC-W40 WEG 30HP Fire Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 03036OP3EFP284TSC-W4

Selected accessories will also be added to cart
$1,809.37 / Each
Quantity:
IC01 - ODP, IP23, 284TSC Frame, 230/460/380VAC 50/60Hz 3 Phase, 14491854, High Efficiency, Foot Mounted, C-Face, Cast Iron Frame, 1-5/8" Keyed Shaft

Electric Motors

Frame284TSC
Output30 HP (22 kW)
Number of Poles2
Frequency60 Hz
Rated speed3545 rpm
Slip1.53 %
Rated voltage230/460 V
Rated current69.8/34.9 A
L. R. Amperes433/216 A
LRC6.2x(Code G)
No load current22.0/11.0 A
Rated torque44.4 ft.lb
Locked rotor torque170 %
Breakdown torque260 %
Locked rotor time28s (cold) 16s (hot)
Moment of inertia (J)1.59 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Approx. weight?311 lb

(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
90.2  91.0  91.0

Power factor

50%75%100%
0.74  0.83  0.87
Frame284TSC
Output30 HP (22 kW)
Number of Poles2
Frequency50 Hz
Rated speed2920 rpm
Slip2.67 %
Rated voltage380 V
Rated current41.7 A
L. R. Amperes242 A
LRC5.8x(Code F)
No load current10.0 A
Rated torque54.0 ft.lb
Locked rotor torque130 %
Breakdown torque200 %
Locked rotor time16s (cold) 9s (hot)
Moment of inertia (J)1.59 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Approx. weight?311 lb
(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
89.5  90.0  90.0

Power factor

50%75%100%
0.80  0.86  0.89
Frame284TSC
Output30 HP (22 kW)
Number of Poles2
Frequency50 Hz
Rated speed2930 rpm
Slip2.33 %
Rated voltage400 V
Rated current40.3 A
L. R. Amperes250 A
LRC6.2x(Code G)
No load current11.0 A
Rated torque53.8 ft.lb
Locked rotor torque130 %
Breakdown torque210 %
Locked rotor time16s (cold) 9s (hot)
Moment of inertia (J)1.59 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Approx. weight?311 lb
(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
90.1  90.2  90.6

Power factor

50%75%100%
0.76  0.84  0.87
Frame284TSC
Output30 HP (22 kW)
Number of Poles2
Frequency50 Hz
Rated speed2935 rpm
Slip2.17 %
Rated voltage415 V
Rated current39.2 A
L. R. Amperes259 A
LRC6.6x(Code G)
No load current12.0 A
Rated torque53.7 ft.lb
Locked rotor torque150 %
Breakdown torque229 %
Locked rotor time18s (cold) 10s (hot)
Moment of inertia (J)1.59 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Approx. weight?311 lb
(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
90.2  90.8  90.8

Power factor

50%75%100%
0.72  0.82  0.86

Features

Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Regreasing SystemAt Drive end and Non-drive end
Main terminal box holeNPT 1 1/2"
Terminal BlockWithout
Shaft Locking DeviceWithout
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 3002 203A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity12
Type
Electric Motor
Input Phase
3-Phase
Speed
3600RPM
Horsepower
30HP
Frame
284TSC
Enclosure
ODP
Application
Fire Pump
