/Products/Electric Motors/3 Phase/WEG 3-Phase Electric Motors/Fire Pump/Foot Mount, Cast Iron/03036OP3HFP284TS-W40 WEG 30HP Fire Pump Electric Motor, 3600RPM

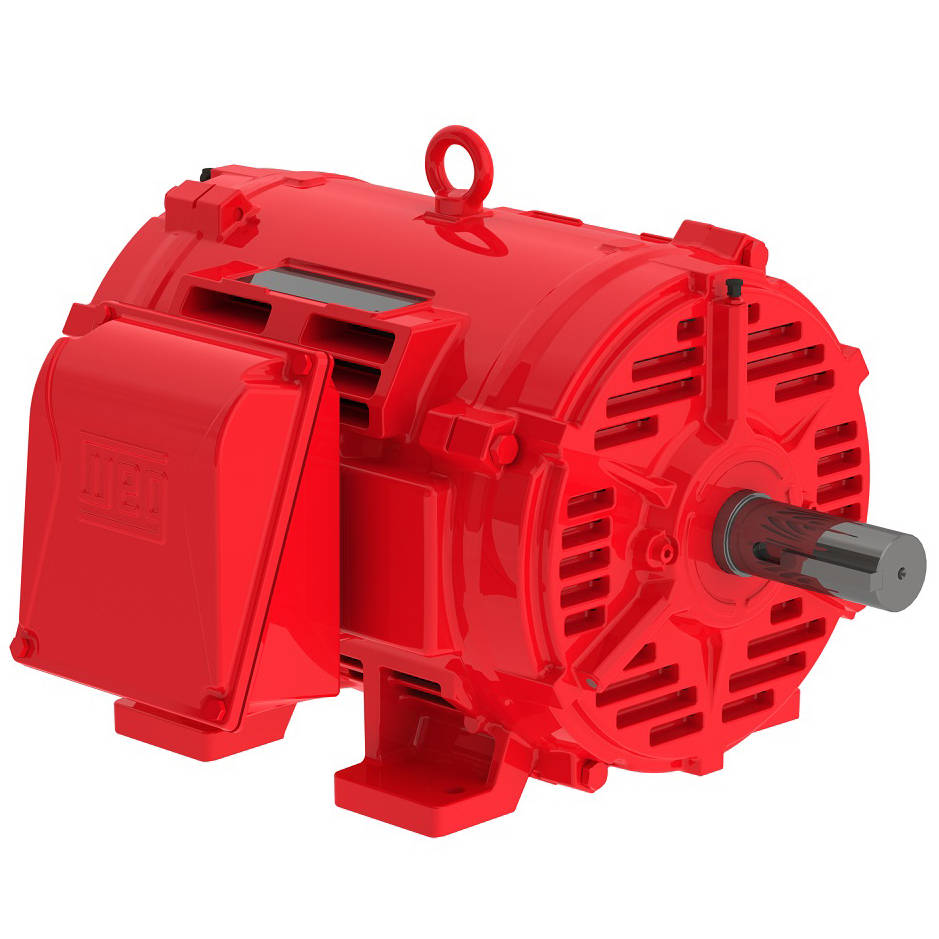

03036OP3HFP284TS-W40 WEG 30HP Fire Pump Electric Motor, 3600RPM
Enlarge Photo

Product ID: 03036OP3HFP284TS-W40

03036OP3HFP284TS-W40 WEG 30HP Fire Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 03036OP3HFP284TS-W40

Selected accessories will also be added to cart
$1,809.37 / Each
Quantity:
IC01 - ODP, IP23, 284TS Frame, 575VAC 60Hz 3 Phase, 14490718, High Efficiency, Foot Mounted, Cast Iron Frame, 1-5/8" Keyed Shaft

Electric Motors

Frame284TS
Output30 HP (22 kW)
Number of Poles2
Frequency60 Hz
Rated speed3540 rpm
Slip1.67 %
Rated voltage575 V
Rated current27.9 A
L. R. Amperes173 A
LRC6.2x(Code G)
No load current8.80 A
Rated torque44.5 ft.lb
Locked rotor torque170 %
Breakdown torque260 %
Locked rotor time28s (cold) 16s (hot)
Moment of inertia (J)1.59 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Approx. weight?300 lb

(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
90.2  91.0  91.0

Power factor

50%75%100%
0.74  0.83  0.87

Features

Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Regreasing SystemAt Drive end and Non-drive end
Main terminal box holeNPT 1 1/2"
Terminal BlockWithout
Shaft Locking DeviceWithout
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 3002 203A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capNo-Without Bearing Cap
Bolt MaterialCarbon Steel
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Type
Electric Motor
Input Phase
3-Phase
Speed
3600RPM
Horsepower
30HP
Enclosure
ODP
Input Voltage
575VAC
Frame
284TS
Application
Fire Pump
