Product ID: 04009ET3E365T-W22

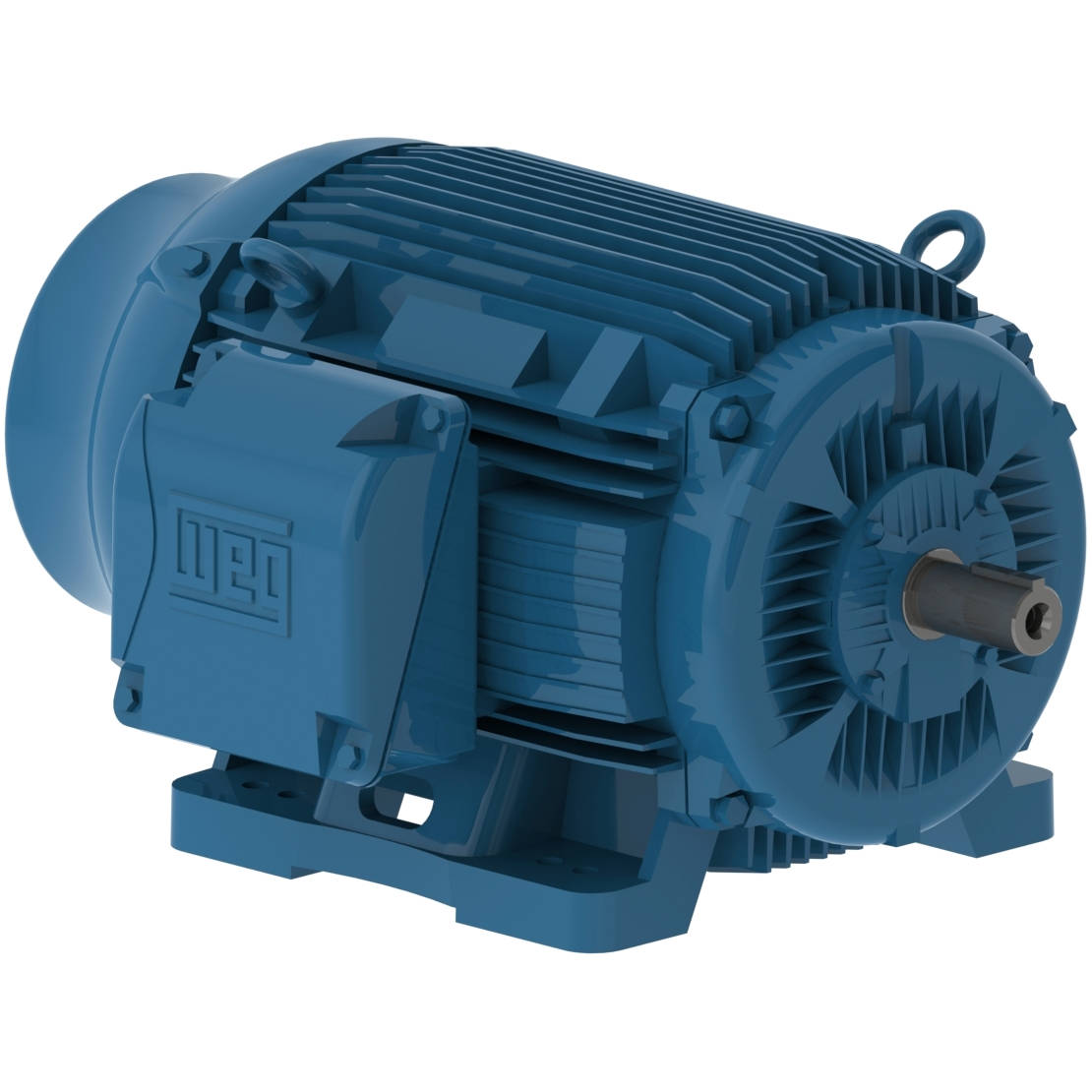

04009ET3E365T-W22 WEG 40HP Severe Duty Electric Motor, 900RPM

MFG: WEG Electric Corporation
MFG Part Number: 04009ET3E365T-W22

Selected accessories will also be added to cart

$10,852.66 / Each

Quantity:

IC411 - TEFC, IP55, 364T/365T Frame, 230/460/380VAC 50/60Hz 3 Phase, 11355727, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 2-3/8" Keyed Shaft

Electric Motors

Frame	364/5T
Output	40 HP (30 kW)
Number of Poles	8
Frequency	60 Hz
Rated speed	882 rpm
Slip	2.00 %
Rated voltage	230/460 V
Rated current	102/50.9 A
L. R. Amperes	601/300 A
LRC	5.9x(Code G)
No load current	43.0/21.5 A
Rated torque	238 ft.lb
Locked rotor torque	170 %
Breakdown torque	210 %
Locked rotor time	46s (cold) 26s (hot)

Moment of inertia (J)	29.0 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	60.0 dB(A)
Approx. weight?	863 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
92.4	93.0	92.4

Power factor

50%	75%	100%
0.65	0.75	0.80

Frame	364/5T
Output	30 HP (22 kW)
Number of Poles	8
Frequency	50 Hz
Rated speed	735 rpm
Slip	2.00 %
Rated voltage	380 V
Rated current	47.8 A
L. R. Amperes	292 A
LRC	6.1x(Code H)
No load current	20.7 A
Rated torque	214 ft.lb
Locked rotor torque	600 %
Breakdown torque	240 %
Locked rotor time	81s (cold) 45s (hot)

Moment of inertia (J)	29.0 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	56.0 dB(A)
Approx. weight?	863 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.5	91.6	90.9

Power factor

50%	75%	100%
0.60	0.71	0.77

Frame	364/5T
Output	30 HP (22 kW)
Number of Poles	8
Frequency	50 Hz
Rated speed	736 rpm
Slip	1.87 %
Rated voltage	400 V
Rated current	46.3 A
L. R. Amperes	310 A
LRC	6.7x(Code J)
No load current	22.2 A
Rated torque	214 ft.lb
Locked rotor torque	210 %
Breakdown torque	270 %
Locked rotor time	52s (cold) 29s (hot)

Moment of inertia (J)	29.0 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	56.0 dB(A)
Approx. weight?	863 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.5	91.9	91.5

Power factor

50%	75%	100%
0.55	0.68	0.75

Frame	364/5T
Output	30 HP (22 kW)
Number of Poles	8
Frequency	50 Hz
Rated speed	737 rpm
Slip	1.73 %
Rated voltage	415 V
Rated current	45.7 A
L. R. Amperes	324 A
LRC	7.1x(Code J)
No load current	23.4 A
Rated torque	214 ft.lb
Locked rotor torque	229 %
Breakdown torque	300 %
Locked rotor time	52s (cold) 29s (hot)

Moment of inertia (J)	29.0 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	56.0 dB(A)
Approx. weight?	863 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
90.9	91.8	91.7

Power factor

50%	75%	100%
0.52	0.65	0.73

Frame	364/5T
Output	40 HP (30 kW)
Number of Poles	8
Frequency	50 Hz
Rated speed	725 rpm
Slip	3.33 %
Rated voltage	380 V
Rated current	62.9 A
L. R. Amperes	283 A
LRC	4.5x(Code E)
No load current	20.7 A
Rated torque	290 ft.lb
Locked rotor torque	140 %
Breakdown torque	180 %
Locked rotor time	32s (cold) 18s (hot)

Moment of inertia (J)	29.0 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	56.0 dB(A)
Approx. weight?	863 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.7	91.0	89.5

Power factor

50%	75%	100%
0.70	0.78	0.81

Frame	364/5T
Output	40 HP (30 kW)
Number of Poles	8
Frequency	50 Hz
Rated speed	727 rpm
Slip	3.07 %
Rated voltage	400 V
Rated current	60.0 A
L. R. Amperes	300 A
LRC	5.0x(Code F)
No load current	22.2 A
Rated torque	289 ft.lb
Locked rotor torque	160 %
Breakdown torque	200 %
Locked rotor time	32s (cold) 18s (hot)

Moment of inertia (J)	29.0 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	56.0 dB(A)
Approx. weight?	863 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.7	91.7	90.2

Power factor

50%	75%	100%
0.66	0.76	0.80

Frame	364/5T
Output	40 HP (30 kW)
Number of Poles	8
Frequency	50 Hz
Rated speed	730 rpm
Slip	2.67 %
Rated voltage	415 V
Rated current	58.1 A
L. R. Amperes	320 A
LRC	5.5x(Code G)
No load current	23.4 A
Rated torque	288 ft.lb
Locked rotor torque	170 %
Breakdown torque	210 %
Locked rotor time	32s (cold) 18s (hot)

Moment of inertia (J)	29.0 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	56.0 dB(A)
Approx. weight?	863 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.7	91.7	91.0

Power factor

50%	75%	100%
0.62	0.74	0.79

Features

Frame Material	Cast Iron
Impregnation Method	Constant Resin Flow
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	NPT 3"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 203A (ISO 12944 - C3)
Grounding Lugs	Double
Fan Cover material	Cast Iron
Tropicalized Painting	Without
Bearing cap	Yes- Bearing Cap
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	12
Fan material	Plastic
Screw cap	CARBON STEEL SAE 1010/20
NDE bearing Seal	WSeal
DE bearing Seal	WSeal
Cable Press Material	Sem
