/Products/Electric Motors/3 Phase/WEG/W22 General Purpose, TEFC/Foot Mount, AEGIS SGR/04012ET3E364T-W22G WEG 40HP Severe Duty Electric Motor, 1200RPM

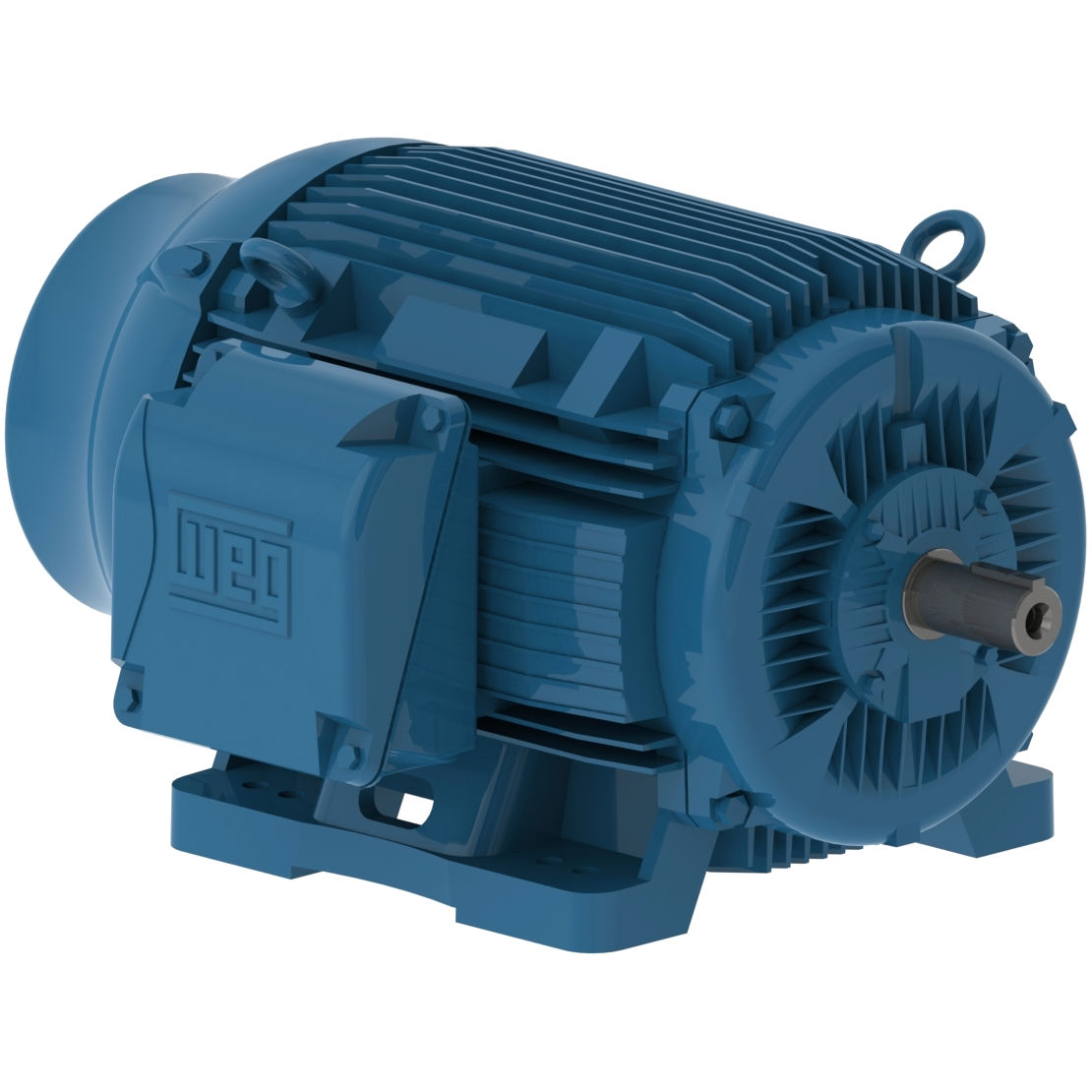

04012ET3E364T-W22G WEG 40HP Severe Duty Electric Motor, 1200RPM
Enlarge Photo

Product ID: 04012ET3E364T-W22G

04012ET3E364T-W22G WEG 40HP Severe Duty Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: 04012ET3E364T-W22G

Selected accessories will also be added to cart
$6,093.00 / Each
Quantity:
IC411 - TEFC, IP55, 364T/365T Frame, 230/460/380VAC 50/60Hz 3 Phase, 12769959, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, AEGIS Shaft Grounding Ring, 2-3/8" Keyed Shaft

Electric Motors

Frame 364/5T
Output 40 HP (30 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1185 rpm
Slip 1.25 %
Rated voltage 230/460 V
Rated current 93.0/46.5 A
L. R. Amperes 595/298 A
LRC 6.4x(Code G)
No load current 34.0/17.0 A
Rated torque 177 ft.lb
Locked rotor torque 200 %
Breakdown torque 240 %
Locked rotor time 37s (cold) 21s (hot)
Moment of inertia (J) 21.8 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 66.0 dB(A)
Approx. weight³ 892 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
93.6  93.6  94.1

Power factor

50% 75% 100%
0.73  0.82  0.86
Frame 364/5T
Output 30 HP (22 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 985 rpm
Slip 1.50 %
Rated voltage 380 V
Rated current 42.0 A
L. R. Amperes 269 A
LRC 6.4x(Code G)
No load current 16.8 A
Rated torque 160 ft.lb
Locked rotor torque 210 %
Breakdown torque 250 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 21.8 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 892 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
92.4  92.8  92.5

Power factor

50% 75% 100%
0.68  0.80  0.86
Frame 364/5T
Output 30 HP (22 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 985 rpm
Slip 1.50 %
Rated voltage 400 V
Rated current 40.2 A
L. R. Amperes 289 A
LRC 7.2x(Code H)
No load current 17.9 A
Rated torque 160 ft.lb
Locked rotor torque 240 %
Breakdown torque 280 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 21.8 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 892 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
92.3  93.1  93.0

Power factor

50% 75% 100%
0.66  0.79  0.85
Frame 364/5T
Output 30 HP (22 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 990 rpm
Slip 1.00 %
Rated voltage 415 V
Rated current 39.6 A
L. R. Amperes 305 A
LRC 7.7x(Code J)
No load current 18.7 A
Rated torque 159 ft.lb
Locked rotor torque 270 %
Breakdown torque 310 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 21.8 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 892 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
91.9  93.0  93.2

Power factor

50% 75% 100%
0.63  0.76  0.83
Frame 364/5T
Output 40 HP (30 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 980 rpm
Slip 2.00 %
Rated voltage 380 V
Rated current 56.5 A
L. R. Amperes 277 A
LRC 4.9x(Code E)
No load current 16.8 A
Rated torque 214 ft.lb
Locked rotor torque 160 %
Breakdown torque 190 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 21.8 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 892 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
93.0  92.4  91.7

Power factor

50% 75% 100%
0.78  0.85  0.88
Frame 364/5T
Output 40 HP (30 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 980 rpm
Slip 2.00 %
Rated voltage 400 V
Rated current 53.9 A
L. R. Amperes 296 A
LRC 5.5x(Code F)
No load current 17.9 A
Rated torque 214 ft.lb
Locked rotor torque 180 %
Breakdown torque 210 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 21.8 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 892 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
93.0  93.0  92.4

Power factor

50% 75% 100%
0.76  0.84  0.87
Frame 364/5T
Output 40 HP (30 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 985 rpm
Slip 1.50 %
Rated voltage 415 V
Rated current 52.2 A
L. R. Amperes 313 A
LRC 6.0x(Code G)
No load current 18.7 A
Rated torque 213 ft.lb
Locked rotor torque 200 %
Breakdown torque 229 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 21.8 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 892 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
93.0  93.0  93.0

Power factor

50% 75% 100%
0.73  0.82  0.86

Features

Frame Material Cast Iron
Impregnation Method Constant Resin Flow
Regreasing System At Drive end and Non-drive end
Main terminal box hole NPT 3"
Terminal Block Without
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs Double
Fan Cover material Cast Iron
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 12
