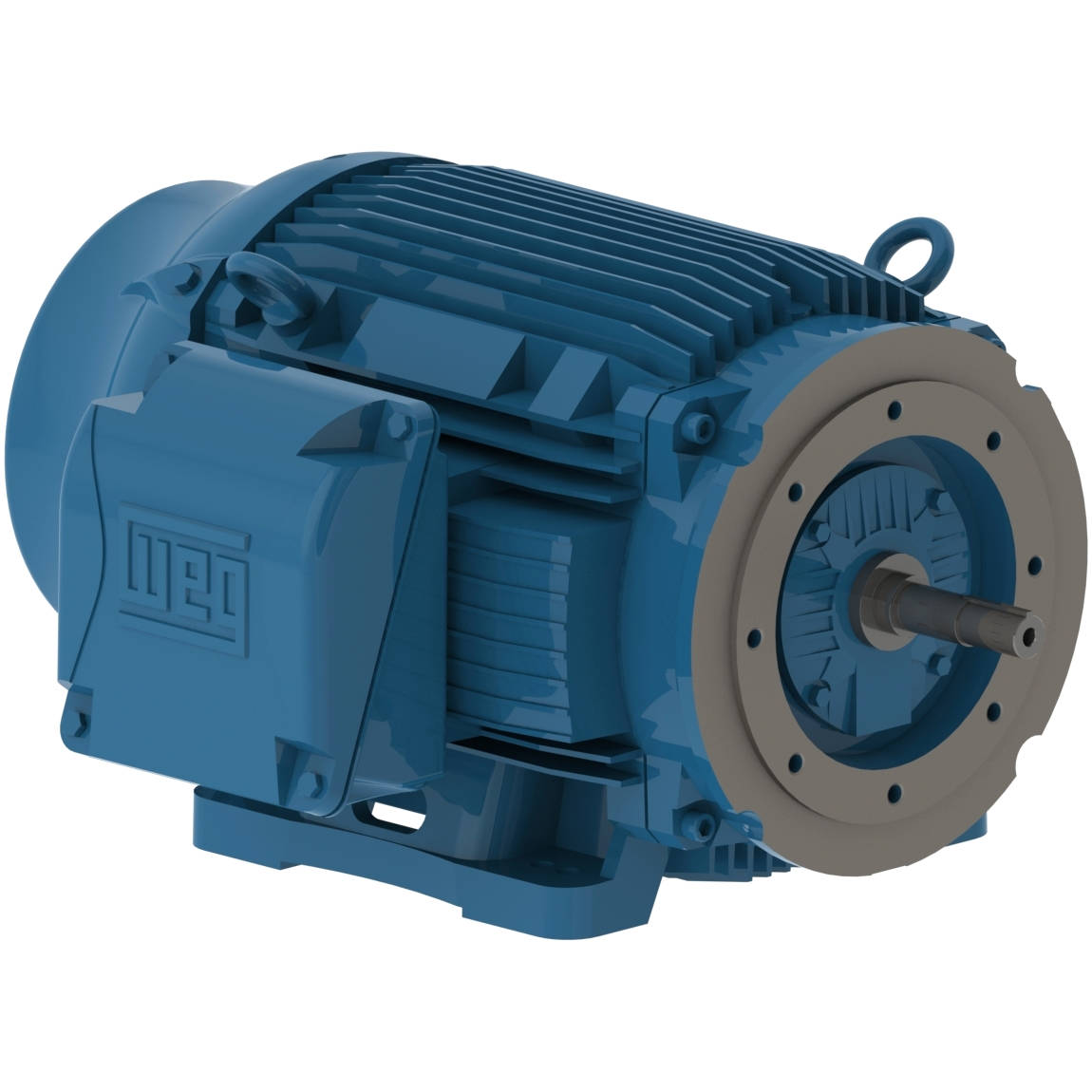

04012ET3E364JM-W22 WEG 40HP JM Close Coupled Pump Electric Motor, 1200RPM
Enlarge Photo

Product ID: 04012ET3E364JM-W22

04012ET3E364JM-W22 WEG 40HP JM Close Coupled Pump Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: 04012ET3E364JM-W22

Selected accessories will also be added to cart
$7,838.23 / Each
Quantity:
IC411 - TEFC, IP55, 364JM/365JM Frame, 230/460/380VAC 50/60Hz 3 Phase, 13485861, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame

Electric Motors

Frame364/5JM
Output40 HP (30 kW)
Number of Poles6
Frequency60 Hz
Rated speed1185 rpm
Slip1.25 %
Rated voltage230/460 V
Rated current93.0/46.5 A
L. R. Amperes595/298 A
LRC6.4x(Code G)
No load current34.0/17.0 A
Rated torque177 ft.lb
Locked rotor torque200 %
Breakdown torque240 %
Locked rotor time37s (cold) 21s (hot)
Moment of inertia (J)21.8 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?66.0 dB(A)
Approx. weight?915 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
93.6  93.6  94.1

Power factor

50%75%100%
0.73  0.82  0.86
Frame364/5JM
Output30 HP (22 kW)
Number of Poles6
Frequency50 Hz
Rated speed985 rpm
Slip1.50 %
Rated voltage380 V
Rated current42.0 A
L. R. Amperes269 A
LRC6.4x(Code G)
No load current16.8 A
Rated torque160 ft.lb
Locked rotor torque210 %
Breakdown torque250 %
Locked rotor time32s (cold) 18s (hot)
Moment of inertia (J)21.8 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?63.0 dB(A)
Approx. weight?915 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
92.4  92.8  92.5

Power factor

50%75%100%
0.68  0.80  0.86
Frame364/5JM
Output30 HP (22 kW)
Number of Poles6
Frequency50 Hz
Rated speed985 rpm
Slip1.50 %
Rated voltage400 V
Rated current40.2 A
L. R. Amperes289 A
LRC7.2x(Code H)
No load current17.9 A
Rated torque160 ft.lb
Locked rotor torque240 %
Breakdown torque280 %
Locked rotor time32s (cold) 18s (hot)
Moment of inertia (J)21.8 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?63.0 dB(A)
Approx. weight?915 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
92.3  93.1  93.0

Power factor

50%75%100%
0.66  0.79  0.85
Frame364/5JM
Output30 HP (22 kW)
Number of Poles6
Frequency50 Hz
Rated speed990 rpm
Slip1.00 %
Rated voltage415 V
Rated current39.6 A
L. R. Amperes305 A
LRC7.7x(Code J)
No load current18.7 A
Rated torque159 ft.lb
Locked rotor torque270 %
Breakdown torque310 %
Locked rotor time32s (cold) 18s (hot)
Moment of inertia (J)21.8 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?63.0 dB(A)
Approx. weight?915 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
91.9  93.0  93.2

Power factor

50%75%100%
0.63  0.76  0.83
Frame364/5JM
Output40 HP (30 kW)
Number of Poles6
Frequency50 Hz
Rated speed980 rpm
Slip2.00 %
Rated voltage380 V
Rated current56.5 A
L. R. Amperes277 A
LRC4.9x(Code E)
No load current16.8 A
Rated torque214 ft.lb
Locked rotor torque160 %
Breakdown torque190 %
Locked rotor time32s (cold) 18s (hot)
Moment of inertia (J)21.8 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?63.0 dB(A)
Approx. weight?915 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
93.0  92.4  91.7

Power factor

50%75%100%
0.78  0.85  0.88
Frame364/5JM
Output40 HP (30 kW)
Number of Poles6
Frequency50 Hz
Rated speed980 rpm
Slip2.00 %
Rated voltage400 V
Rated current53.9 A
L. R. Amperes296 A
LRC5.5x(Code F)
No load current17.9 A
Rated torque214 ft.lb
Locked rotor torque180 %
Breakdown torque210 %
Locked rotor time32s (cold) 18s (hot)
Moment of inertia (J)21.8 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?63.0 dB(A)
Approx. weight?915 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
93.0  93.0  92.4

Power factor

50%75%100%
0.76  0.84  0.87
Frame364/5JM
Output40 HP (30 kW)
Number of Poles6
Frequency50 Hz
Rated speed985 rpm
Slip1.50 %
Rated voltage415 V
Rated current52.2 A
L. R. Amperes313 A
LRC6.0x(Code G)
No load current18.7 A
Rated torque213 ft.lb
Locked rotor torque200 %
Breakdown torque229 %
Locked rotor time32s (cold) 18s (hot)
Moment of inertia (J)21.8 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?63.0 dB(A)
Approx. weight?915 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
93.0  93.0  93.0

Power factor

50%75%100%
0.73  0.82  0.86

Features

Frame MaterialCast Iron
Impregnation MethodConstant Resin Flow
Regreasing SystemAt Drive end and Non-drive end
Main terminal box holeNPT 3"
Terminal BlockWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 203A (ISO 12944 - C2)
Grounding LugsDouble
Fan Cover materialCast Iron
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capYes- Bearing Cap
Drip CoverWithout
Pump SealMechanical Seal
Overload protector (phenolic)Without overload protector
Connection Cables Quantity12
Type
Electric Motor
Input Phase
3-Phase
Speed
1200RPM
Application
Close Coupled Pump
Enclosure
TEFC
Enclosure
TEFC
Horsepower
40HP
Frame
364JM/365JM
