/Products/Electric Motors/3 Phase/WEG 3-Phase Electric Motors/W22 General Purpose, TEFC/Foot Mount, AEGIS SGR/04012ET3H364T-W22G WEG 40HP Severe Duty Electric Motor, 1200RPM

Product ID: 04012ET3H364T-W22G

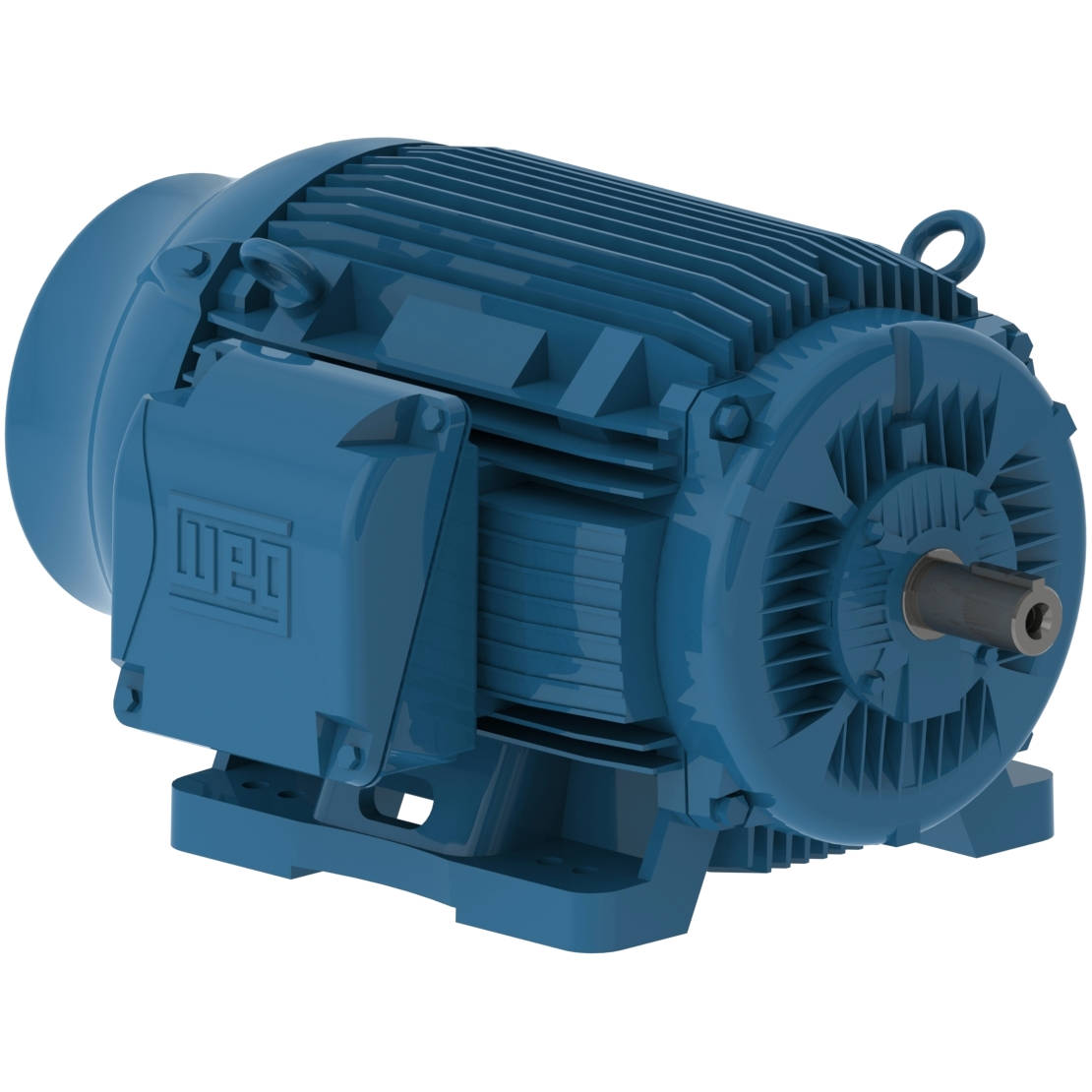

04012ET3H364T-W22G WEG 40HP Severe Duty Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: 04012ET3H364T-W22G

Selected accessories will also be added to cart

$7,230.36 / Each

Quantity:

IC411 - TEFC, IP55, 364T/365T Frame, 575VAC 60Hz 3 Phase, 14387172, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 2-3/8" Keyed Shaft, AEGIS Shaft Grounding Ring

Electric Motors

Frame	364/5T
Output	40 HP (30 kW)
Number of Poles	6
Frequency	60 Hz
Rated speed	1185 rpm
Slip	1.25 %
Rated voltage	575 V
Rated current	37.2 A
L. R. Amperes	238 A
LRC	6.4x(Code G)
No load current	13.6 A
Rated torque	177 ft.lb
Locked rotor torque	200 %
Breakdown torque	240 %
Locked rotor time	37s (cold) 21s (hot)

Moment of inertia (J)	21.8 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	66.0 dB(A)
Approx. weight?	833 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
93.6	93.6	94.1

Power factor

50%	75%	100%
0.73	0.82	0.86

Features

Frame Material	Cast Iron
Impregnation Method	Constant Resin Flow
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	NPT 3"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs	Double
Fan Cover material	Cast Iron
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	6
