Motor/Control Division

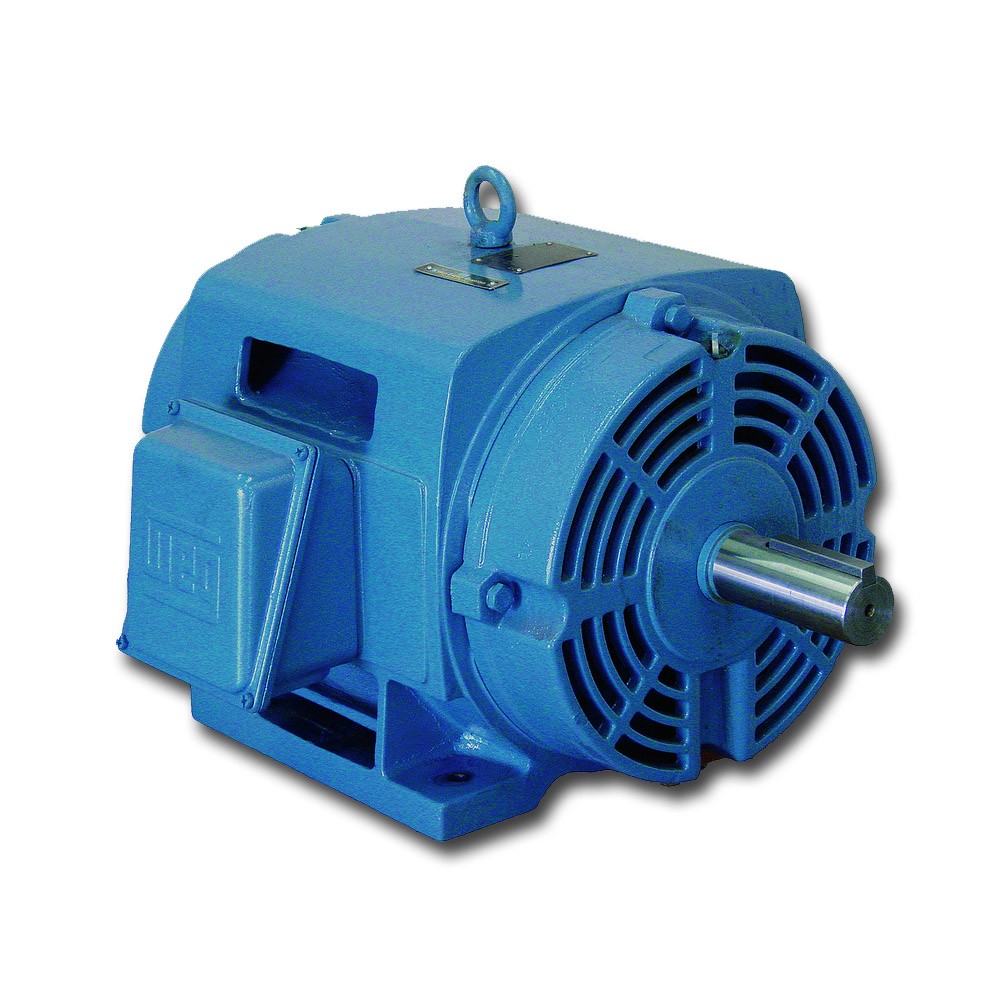

Frame	324TS
Output	40 HP (30 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1775 rpm
Slip	1.39 %
Rated voltage	208-230/460 V
Rated current	107-96.4/48.2 A
L. R. Amperes	661-598/299 A
LRC	6.2x(Code G)
No load current	31.9-37.0/18.5 A
Rated torque	117 ft.lb
Locked rotor torque	220 %
Breakdown torque	229 %
Locked rotor time	50s (cold) 28s (hot)

Moment of inertia (J)	6.05 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	64.0 dB(A)
Approx. weight?	477 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
93.6	94.1	94.1

Power factor

50%	75%	100%
0.68	0.78	0.83

Frame	324TS
Output	30 HP (22 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1475 rpm
Slip	1.67 %
Rated voltage	380 V
Rated current	42.8 A
L. R. Amperes	270 A
LRC	6.3x(Code G)
No load current	15.4 A
Rated torque	105 ft.lb
Locked rotor torque	240 %
Breakdown torque	340 %
Locked rotor time	36s (cold) 20s (hot)

Moment of inertia (J)	6.05 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	64.0 dB(A)
Approx. weight?	477 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
90.1	91.7	93.0

Power factor

50%	75%	100%
0.70	0.80	0.84

Frame	324TS
Output	30 HP (22 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1475 rpm
Slip	1.67 %
Rated voltage	400 V
Rated current	41.6 A
L. R. Amperes	291 A
LRC	7.0x(Code H)
No load current	16.8 A
Rated torque	105 ft.lb
Locked rotor torque	270 %
Breakdown torque	370 %
Locked rotor time	32s (cold) 18s (hot)

Moment of inertia (J)	6.05 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	64.0 dB(A)
Approx. weight?	477 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
89.9	91.7	93.0

Power factor

50%	75%	100%
0.66	0.77	0.82

Frame	324TS
Output	30 HP (22 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1480 rpm
Slip	1.33 %
Rated voltage	415 V
Rated current	41.1 A
L. R. Amperes	312 A
LRC	7.6x(Code J)
No load current	18.1 A
Rated torque	105 ft.lb
Locked rotor torque	290 %
Breakdown torque	400 %
Locked rotor time	30s (cold) 17s (hot)

Moment of inertia (J)	6.05 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	64.0 dB(A)
Approx. weight?	477 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
89.8	92.0	93.0

Power factor

50%	75%	100%
0.63	0.74	0.80

Frame	324TS
Output	40 HP (30 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1465 rpm
Slip	2.33 %
Rated voltage	380 V
Rated current	58.1 A
L. R. Amperes	279 A
LRC	4.8x(Code E)
No load current	15.4 A
Rated torque	141 ft.lb
Locked rotor torque	180 %
Breakdown torque	250 %
Locked rotor time	36s (cold) 20s (hot)

Moment of inertia (J)	6.05 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	64.0 dB(A)
Approx. weight?	477 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.7	91.7	92.3

Power factor

50%	75%	100%
0.77	0.84	0.85

Frame	324TS
Output	40 HP (30 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1470 rpm
Slip	2.00 %
Rated voltage	400 V
Rated current	55.8 A
L. R. Amperes	301 A
LRC	5.4x(Code F)
No load current	16.8 A
Rated torque	141 ft.lb
Locked rotor torque	200 %
Breakdown torque	280 %
Locked rotor time	32s (cold) 18s (hot)

Moment of inertia (J)	6.05 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	64.0 dB(A)
Approx. weight?	477 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.7	91.7	92.3

Power factor

50%	75%	100%
0.74	0.82	0.84

Frame	324TS
Output	40 HP (30 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1475 rpm
Slip	1.67 %
Rated voltage	415 V
Rated current	54.4 A
L. R. Amperes	321 A
LRC	5.9x(Code G)
No load current	18.1 A
Rated torque	140 ft.lb
Locked rotor torque	220 %
Breakdown torque	300 %
Locked rotor time	30s (cold) 17s (hot)

Moment of inertia (J)	6.05 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	64.0 dB(A)
Approx. weight?	477 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
