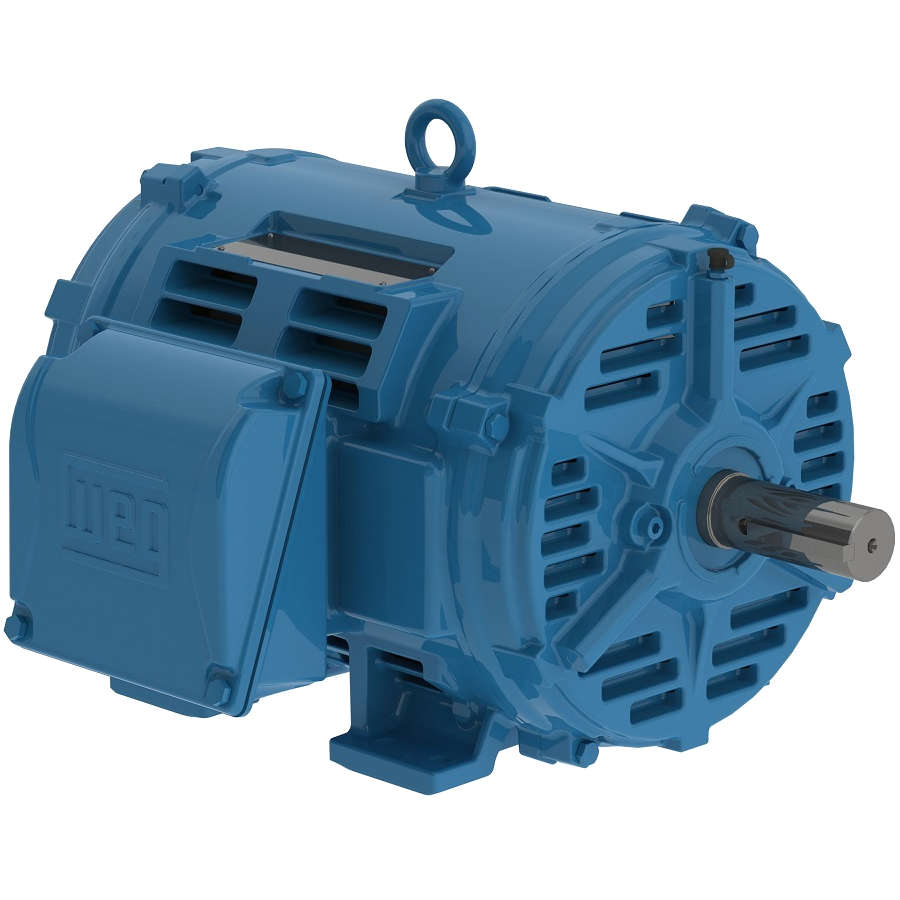

04018OT3H324T-W40 WEG 40HP, General Purpose Electric Motor, 1800RPM
Enlarge Photo

Product ID: 04018OT3H324T-W40

04018OT3H324T-W40 WEG 40HP, General Purpose Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 04018OT3H324T-W40

Selected accessories will also be added to cart
$2,754.55 / Each
Quantity:
IC01 - ODP, IP23, 324T Frame, 575VAC 60Hz 3 Phase, 14496820, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 2-1/8" Keyed Shaft

Electric Motors

Frame324T
Output40 HP (30 kW)
Number of Poles4
Frequency60 Hz
Rated speed1775 rpm
Slip1.39 %
Rated voltage575 V
Rated current38.1 A
L. R. Amperes236 A
LRC6.2x(Code G)
No load current14.8 A
Rated torque118 ft.lb
Locked rotor torque200 %
Breakdown torque240 %
Locked rotor time23s (cold) 13s (hot)
Moment of inertia (J)5.69 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Noise level?66.0 dB(A)
Approx. weight?447 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
93.6  94.1  94.1

Power factor

50%75%100%
0.70  0.80  0.84

Features

Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Regreasing SystemAt Drive end and Non-drive end
Main terminal box holeNPT 2"
Terminal BlockWithout
Shaft Locking DeviceWithout
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 203A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity6
Type
Electric Motor
Input Phase
3-Phase
Speed
1800RPM
Enclosure
ODP
Horsepower
40HP
Input Voltage
575VAC
Frame
324T
