/Products/Electric Motors/3 Phase/WEG 3-Phase Electric Motors/Fire Pump/Foot Mount, Cast Iron/04018OP3VFP324TS-W40 WEG 40HP Fire Pump Electric Motor, 1800RPM
04018OP3VFP324TS-W40 WEG 40HP Fire Pump Electric Motor, 1800RPM

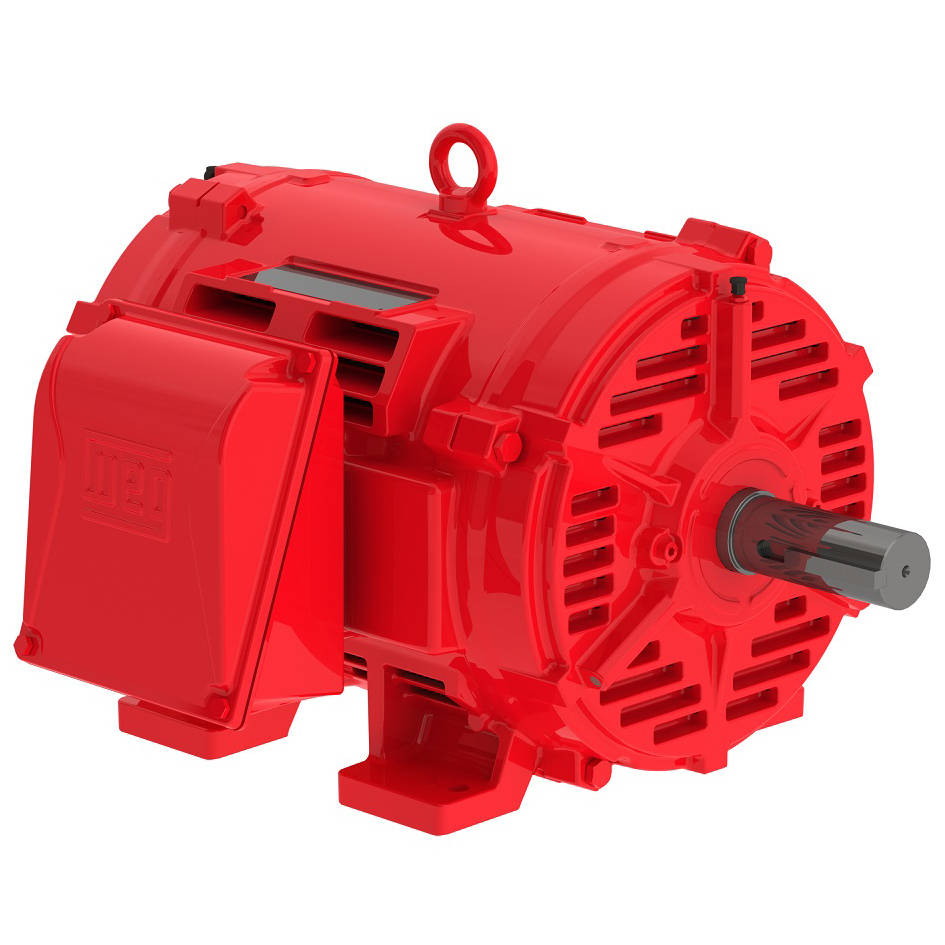

Enlarge Photo

Product ID: 04018OP3VFP324TS-W40

04018OP3VFP324TS-W40 WEG 40HP Fire Pump Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 04018OP3VFP324TS-W40

Selected accessories will also be added to cart
$2,360.28 / Each
Quantity:
IC01 - ODP, IP23, 324TS Frame, 200/400VAC 60Hz 3 Phase, 14490814, High Efficiency, Foot Mounted, Cast Iron Frame, 1-7/8" Keyed Shaft

Electric Motors

Frame324TS
Output40 HP (30 kW)
Number of Poles4
Frequency60 Hz
Rated speed1775 rpm
Slip1.39 %
Rated voltage200/400 V
Rated current111/55.4 A
L. R. Amperes665/333 A
LRC6.0x(Code G)
No load current36.8/18.4 A
Rated torque118 ft.lb
Locked rotor torque180 %
Breakdown torque210 %
Locked rotor time36s (cold) 20s (hot)
Moment of inertia (J)5.37 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Approx. weight?435 lb

(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
92.4  93.0  93.0

Power factor

50%75%100%
0.72  0.81  0.84

Features

Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Regreasing SystemAt Drive end and Non-drive end
Main terminal box holeNPT 2"
Terminal BlockWithout
Shaft Locking DeviceWithout
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 3002 203A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Type
Electric Motor
Input Phase
3-Phase
Speed
1800RPM
Enclosure
ODP
Horsepower
40HP
Frame
324TS
Input Voltage
200VAC
Input Voltage
400VAC
Application
Fire Pump
