/Products/Electric Motors/3 Phase/WEG/W22 General Purpose, TEFC/Foot Mount/575V/04036ET3H324TS-W22 WEG 40HP Severe Duty Electric Motor, 3600RPM

Product ID: 04036ET3H324TS-W22

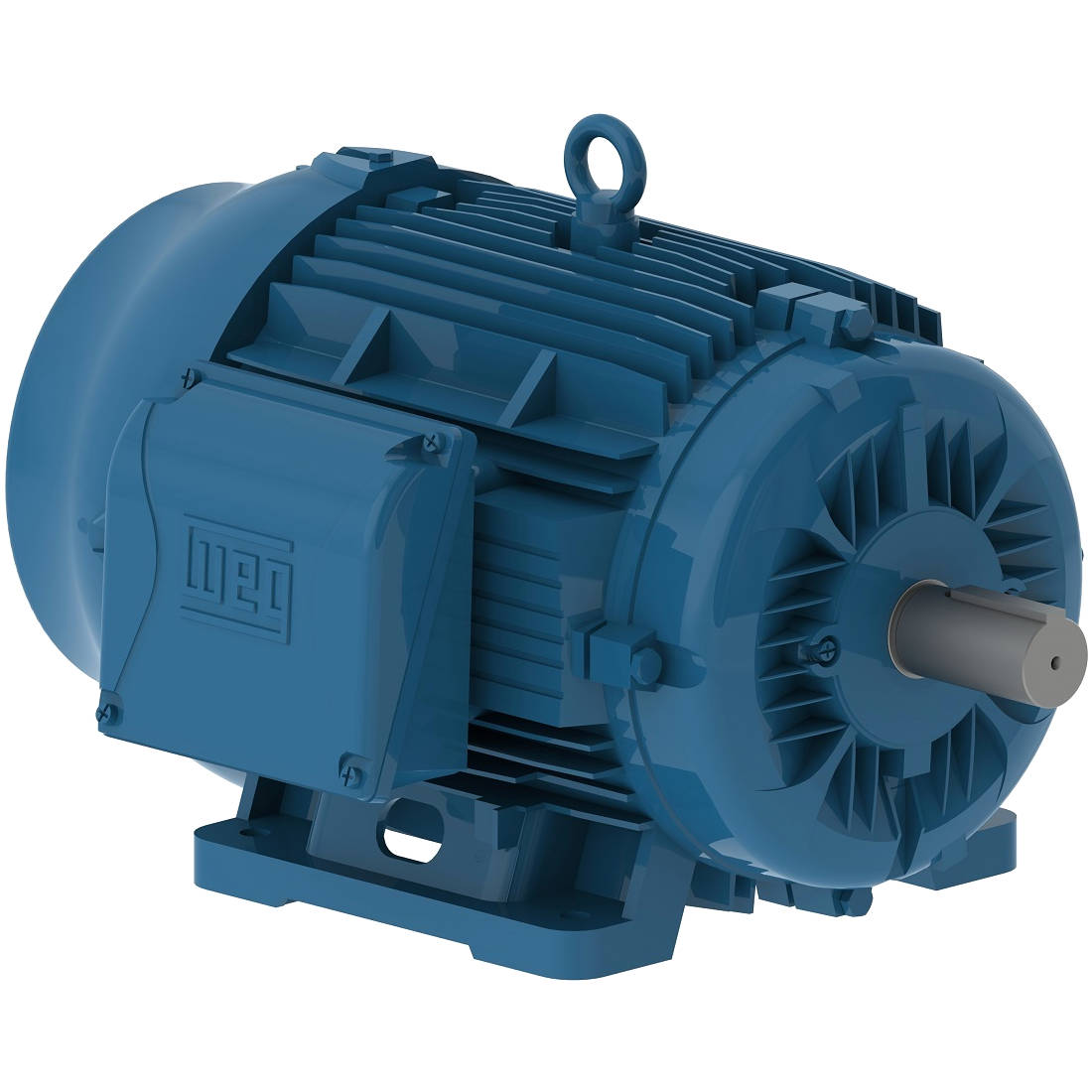

04036ET3H324TS-W22 WEG 40HP Severe Duty Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 04036ET3H324TS-W22

Selected accessories will also be added to cart

$3,543.75 / Each

Quantity:

IC411 - TEFC, IP55, 324TS/326TS Frame, 575VAC 60Hz 3 Phase, 12448183, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 1-7/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	324/6TS
Output	40 HP (30 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3560 rpm
Slip	1.11 %
Rated voltage	575 V
Rated current	37.0 A
L. R. Amperes	233 A
LRC	6.3x(Code G)
No load current	10.4 A
Rated torque	59.0 ft.lb
Locked rotor torque	250 %
Breakdown torque	240 %
Locked rotor time	39s (cold) 22s (hot)

Moment of inertia (J)	4.90 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	76.0 dB(A)
Approx. weight³	537 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.7	92.4	92.4

Power factor

50%	75%	100%
0.80	0.86	0.88

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	NPT 2"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Cast Iron
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	6
