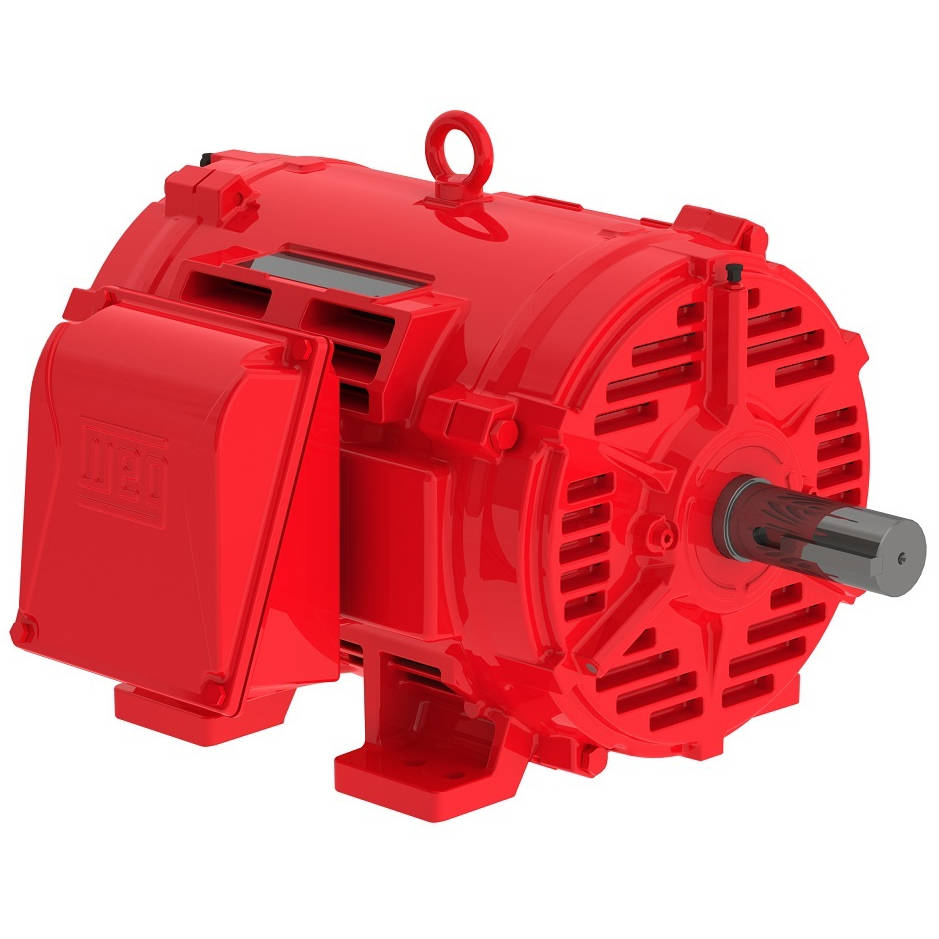

04036OP3VFP286TS-W40 WEG 40HP Fire Pump Electric Motor, 3600RPM
Enlarge Photo

Product ID: 04036OP3VFP286TS-W40

04036OP3VFP286TS-W40 WEG 40HP Fire Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 04036OP3VFP286TS-W40

Selected accessories will also be added to cart
$2,453.73 / Each
Quantity:
IC01 - ODP, IP23, 284TS/286TS Frame, 200/400VAC 60Hz 3 Phase, 14490912, High Efficiency, Foot Mounted, Cast Iron Frame, 1-5/8" Keyed Shaft

Electric Motors

Frame284/6TS
Output40 HP (30 kW)
Number of Poles2
Frequency60 Hz
Rated speed3535 rpm
Slip1.81 %
Rated voltage200/400 V
Rated current109/54.3 A
L. R. Amperes662/331 A
LRC6.1x(Code G)
No load current32.2/16.1 A
Rated torque59.4 ft.lb
Locked rotor torque170 %
Breakdown torque250 %
Locked rotor time18s (cold) 10s (hot)
Moment of inertia (J)1.91 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Approx. weight?335 lb

(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
91.0  91.7  91.7

Power factor

50%75%100%
0.78  0.86  0.87

Features

Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Regreasing SystemAt Drive end and Non-drive end
Main terminal box holeNPT 1 1/2"
Terminal BlockWithout
Shaft Locking DeviceWithout
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 3002 203A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capNo-Without Bearing Cap
Bolt MaterialCarbon Steel
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Type
Electric Motor
Input Phase
3-Phase
Speed
3600RPM
Enclosure
ODP
Horsepower
40HP
Frame
284TS/286TS
Input Voltage
200VAC
Input Voltage
400VAC
Application
Fire Pump
