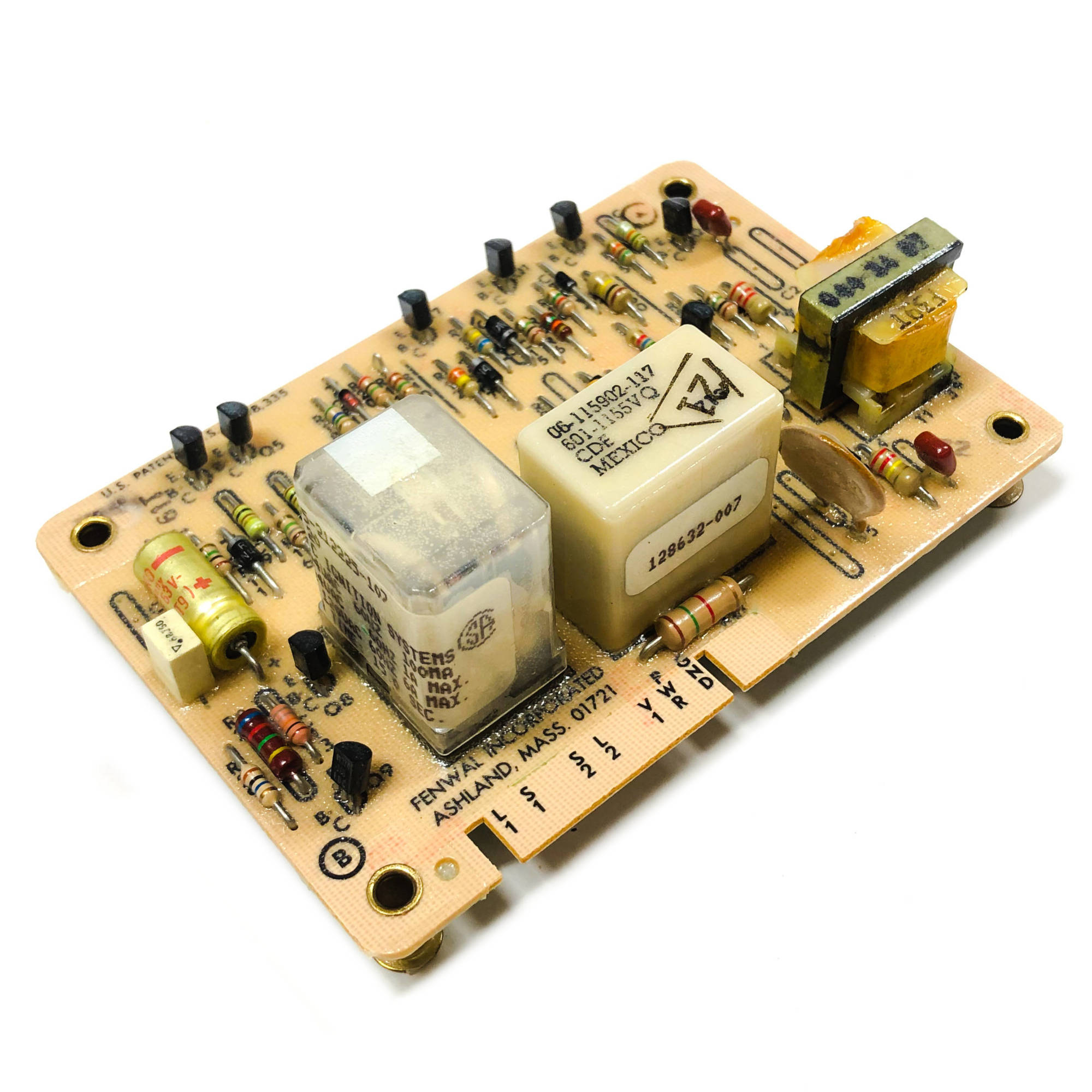

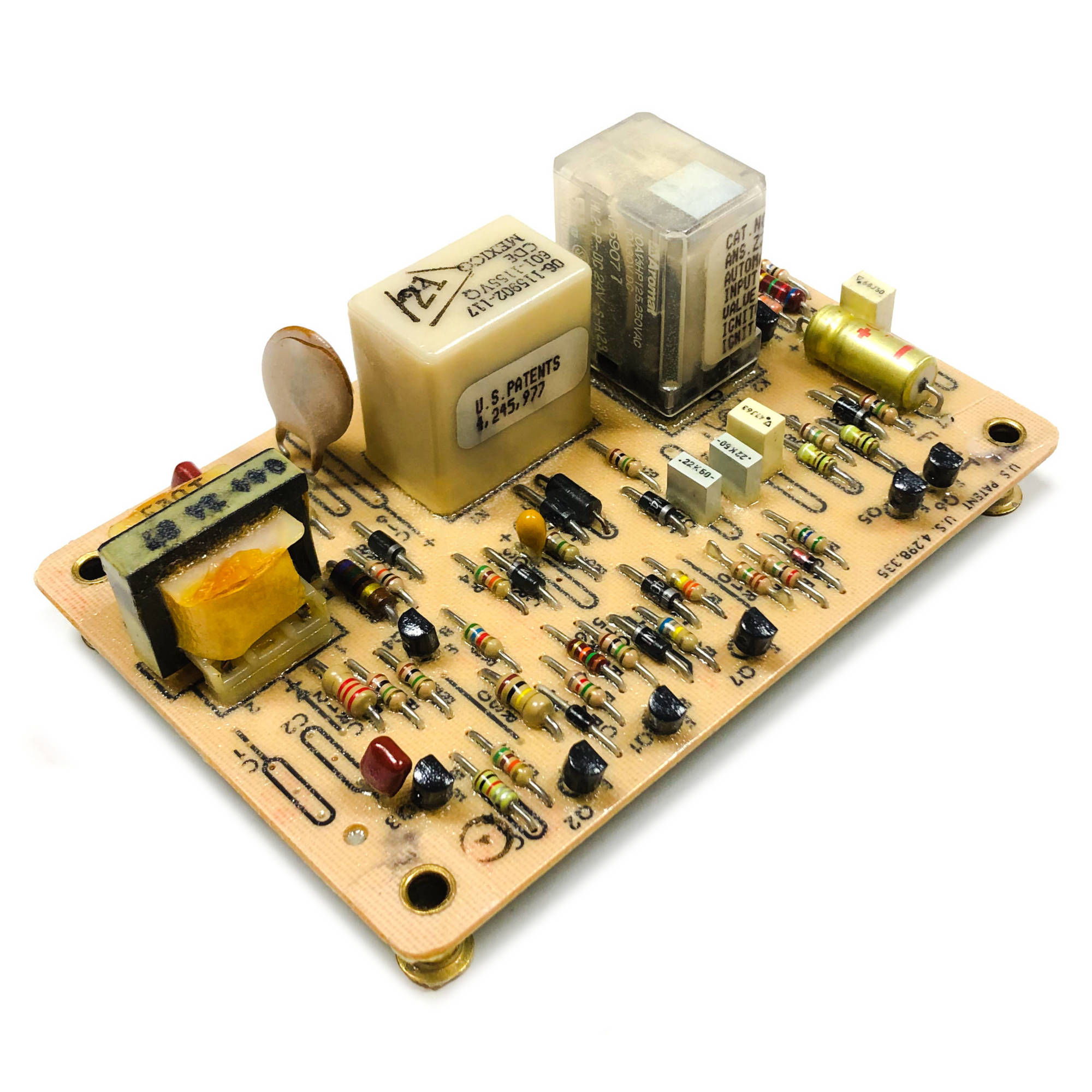

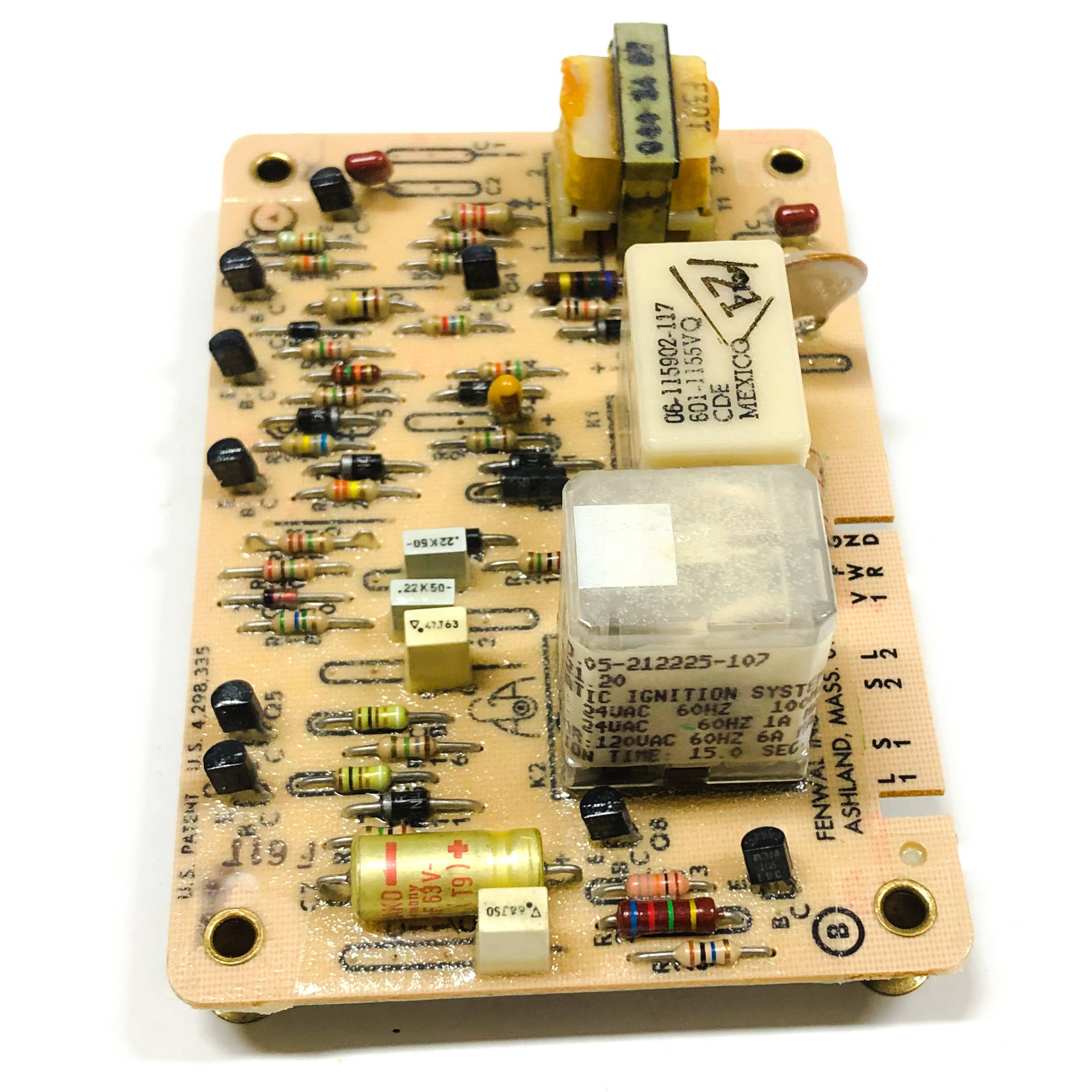

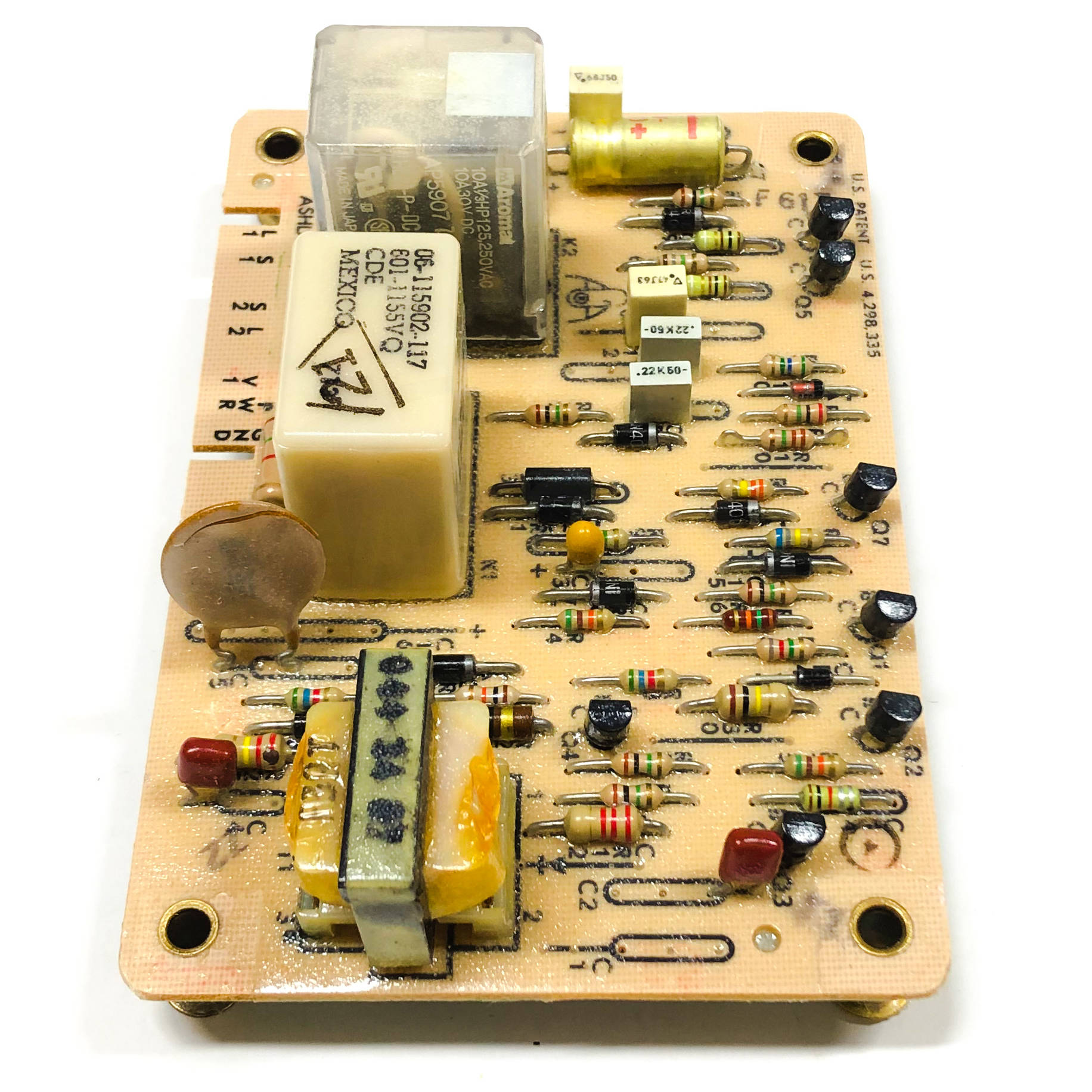

05-212225-107 Fenwal Silicon Carbide Ignition Control System
without case
15.0 Second Trial-for-Ignition (Nominal)
Interrupted Ignition
Flame Failure Response Time: Less than 0.8 Seconds
Input Voltage: 120 & 240VAC 60Hz
Input Current: 100mA Max
For Natural Gas/LP
Operating Temperature Range: -40°F to 150°F
replaced by 35-655802-007
