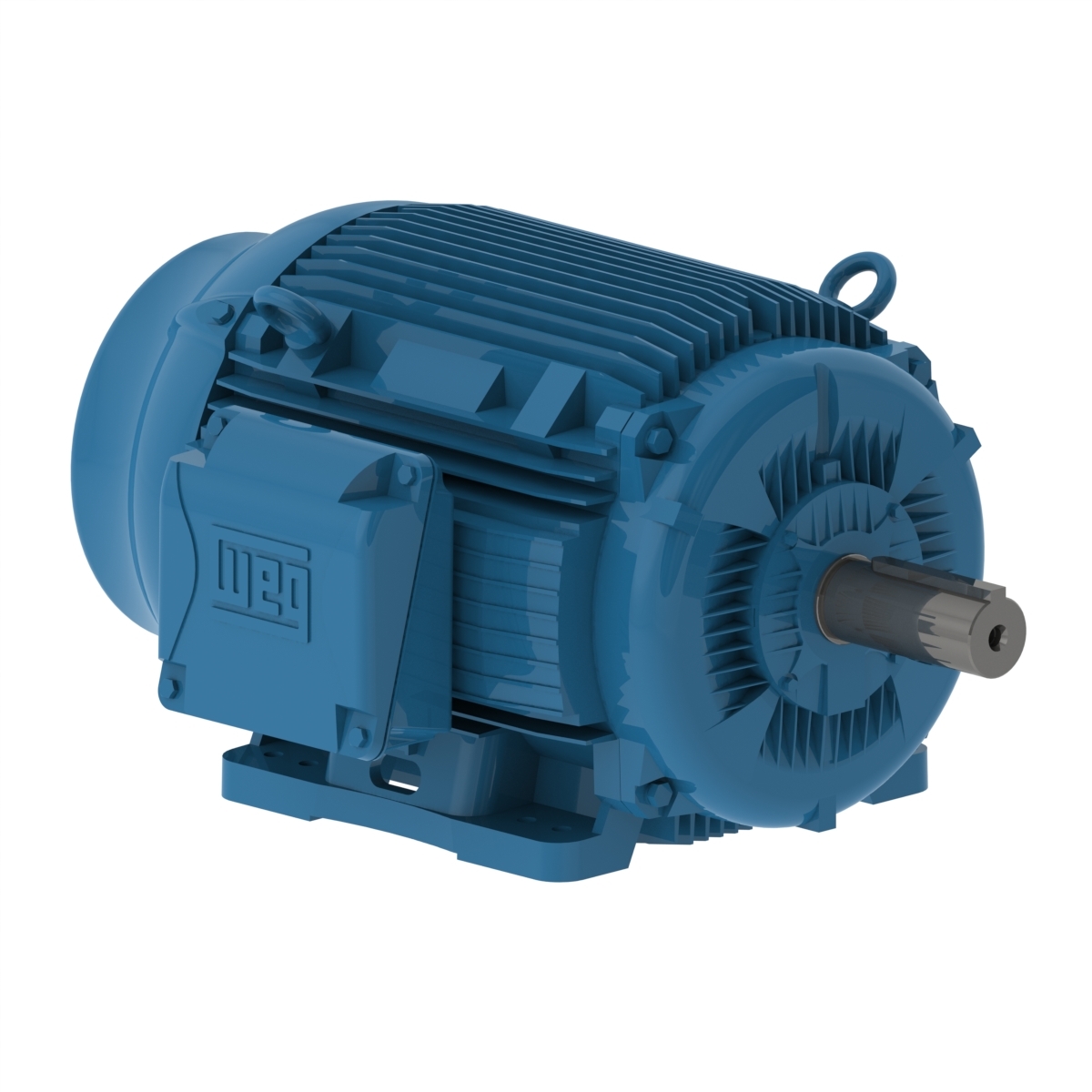

05009ET3EKD404T-W22 WEG 50HP Crusher Duty Electric Motor, 900RPM
Enlarge Photo

Product ID: 05009ET3EKD404T-W22

05009ET3EKD404T-W22 WEG 50HP Crusher Duty Electric Motor, 900RPM

MFG: WEG Electric Corporation
MFG Part Number: 05009ET3EKD404T-W22

Selected accessories will also be added to cart
$15,706.72 / Each
Quantity:
IC411 - TEFC, IP55, 404T/405T Frame, 208-230/460VAC 60Hz 3 Phase, 13500516, Cast Iron Frame, NEMA Premium Efficiency, Foot Mounted, 2-7/8" Keyed Shaft

Electric Motors

Frame404/5T
Output50 HP (37 kW)
Number of Poles8
Frequency60 Hz
Rated speed880 rpm
Slip2.22 %
Rated voltage208-230/460 V
Rated current133-120/60.0 A
L. R. Amperes904-816/408 A
LRC6.8x(Code H)
No load current43.1-50.0/25.0 A
Rated torque298 ft.lb
Locked rotor torque170 %
Breakdown torque260 %
Locked rotor time27s (cold) 15s (hot)
DesignA
Insulation ClassF
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?60.0 dB(A)
Approx. weight?1012 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
93.0  93.0  93.0

Power factor

50%75%100%
0.68  0.78  0.83
Frame404/5T
Output50 HP (37 kW)
Number of Poles8
Frequency50 Hz
Rated speed720 rpm
Slip4.00 %
Rated voltage380 V
Rated current73.3 A
L. R. Amperes374 A
LRC5.1x(Code E)
No load current24.7 A
Rated torque365 ft.lb
Locked rotor torque140 %
Breakdown torque200 %
Locked rotor time21s (cold) 12s (hot)
DesignA
Insulation ClassF
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?56.0 dB(A)
Approx. weight?1012 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
92.4  91.7  90.2

Power factor

50%75%100%
0.74  0.82  0.85

Features

Frame MaterialCast Iron
Impregnation MethodConstant Resin Flow
Regreasing SystemAt Drive end and Non-drive end
Main terminal box holeNPT 3"
Terminal BlockBMC - 6 pins
Shaft Locking DeviceWith
DrainRubber, automatic
Shaft MaterialSAE 4140 Carbon Steel
PaintingRAL 5009 203A (ISO 12944 - C2)
Grounding LugsDouble
Fan Cover materialCast Iron
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capYes- Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Type
Electric Motor
Input Phase
3-Phase
Horsepower
50HP
Enclosure
TEFC
Speed
900RPM
Application
Crusher
Input Voltage
208VAC
Input Voltage
230VAC
Input Voltage
460VAC
Frame
404T
Frame
405T
