/Products/Electric Motors/3 Phase/WEG 3-Phase Electric Motors/IEEE 841/Foot Mount, C-Face/05009ST3QIE404TC-W22 WEG 50HP Severe Duty Electric Motor, 900RPM

Product ID: 05009ST3QIE404TC-W22

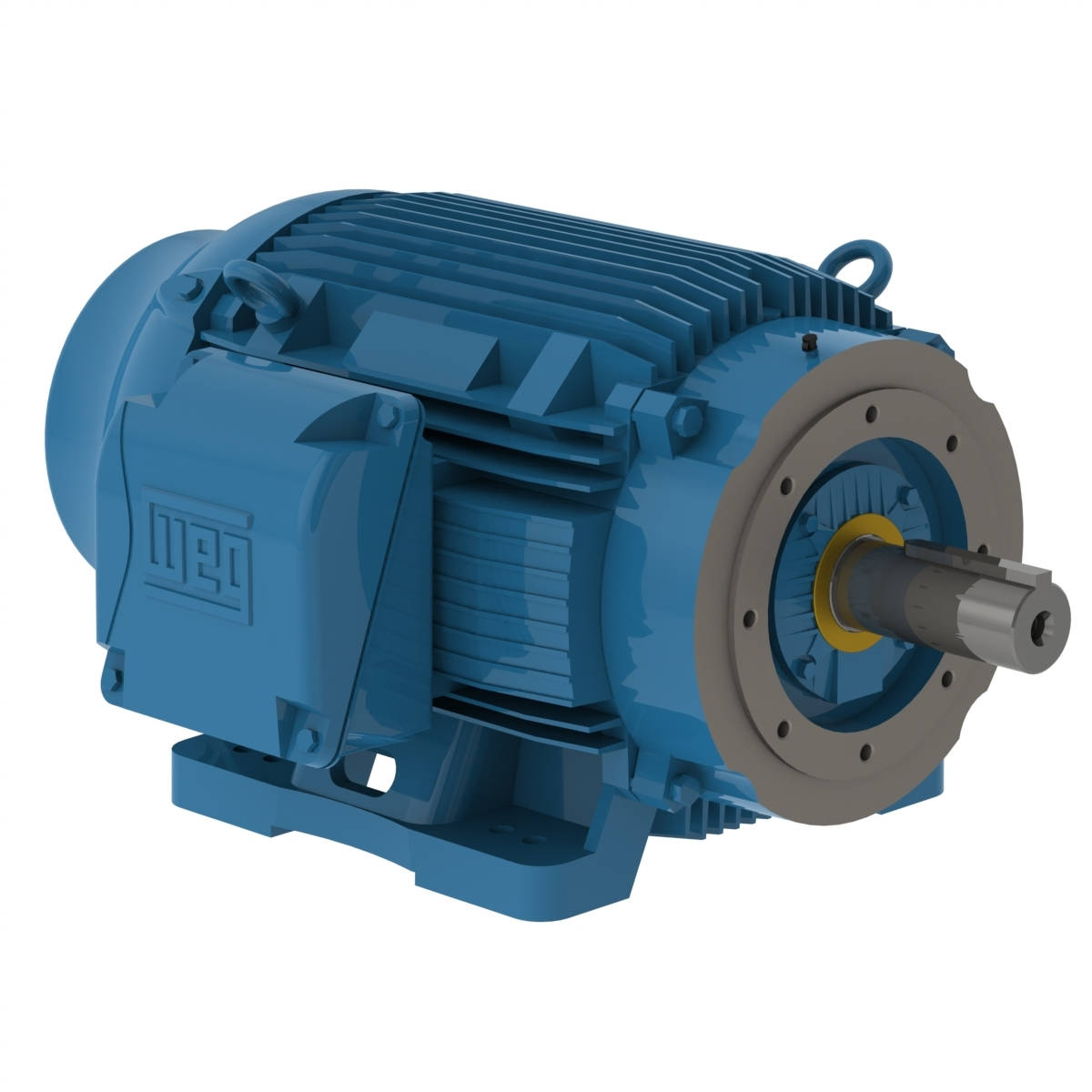

05009ST3QIE404TC-W22 WEG 50HP Severe Duty Electric Motor, 900RPM

MFG: WEG Electric Corporation
MFG Part Number: 05009ST3QIE404TC-W22

Selected accessories will also be added to cart

$17,671.84 / Each

Quantity:

IC411 - TEFC, IP55, 404TC/405TC Frame, 460VAC 60Hz 3 Phase, 14325582, IEEE 841, NEMA Premium Efficiency, Cast Iron Frame, C-Face, Foot Mount, 2-7/8" Keyed Shaft

Electric Motors

Frame	404/5TC
Output	50 HP (37 kW)
Number of Poles	8
Frequency	60 Hz
Rated speed	880 rpm
Slip	2.22 %
Rated voltage	460 V
Rated current	60.2 A
L. R. Amperes	433 A
LRC	7.2x(Code H)
No load current	24.5 A
Rated torque	298 ft.lb
Locked rotor torque	170 %
Breakdown torque	260 %
Locked rotor time	52s (cold) 29s (hot)

Moment of inertia (J)	34.6 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	60.0 dB(A)
Approx. weight³	1012 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
93.0	93.0	93.0

Power factor

50%	75%	100%
0.68	0.78	0.83

Frame	404/5TC
Output	40 HP (30 kW)
Number of Poles	8
Frequency	50 Hz
Rated speed	730 rpm
Slip	2.67 %
Rated voltage	380 V
Rated current	59.4 A
L. R. Amperes	404 A
LRC	6.8x(Code H)
No load current	23.5 A
Rated torque	288 ft.lb
Locked rotor torque	170 %
Breakdown torque	240 %
Locked rotor time	57s (cold) 32s (hot)

Moment of inertia (J)	34.6 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	56.0 dB(A)
Approx. weight³	1012 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
92.9	92.3	91.3

Power factor

50%	75%	100%
0.65	0.78	0.84

Frame	404/5TC
Output	40 HP (30 kW)
Number of Poles	8
Frequency	50 Hz
Rated speed	733 rpm
Slip	2.27 %
Rated voltage	400 V
Rated current	57.6 A
L. R. Amperes	420 A
LRC	7.3x(Code J)
No load current	25.0 A
Rated torque	287 ft.lb
Locked rotor torque	200 %
Breakdown torque	290 %
Locked rotor time	54s (cold) 30s (hot)

Moment of inertia (J)	34.6 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	56.0 dB(A)
Approx. weight³	1012 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.8	92.2	91.7

Power factor

50%	75%	100%
0.63	0.76	0.82

Frame	404/5TC
Output	40 HP (30 kW)
Number of Poles	8
Frequency	50 Hz
Rated speed	735 rpm
Slip	2.00 %
Rated voltage	415 V
Rated current	56.8 A
L. R. Amperes	443 A
LRC	7.8x(Code J)
No load current	26.0 A
Rated torque	286 ft.lb
Locked rotor torque	229 %
Breakdown torque	310 %
Locked rotor time	50s (cold) 28s (hot)

Moment of inertia (J)	34.6 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	56.0 dB(A)
Approx. weight³	1012 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.8	92.2	91.8

Power factor

50%	75%	100%
0.60	0.73	0.80

Frame	404/5TC
Output	50 HP (37 kW)
Number of Poles	8
Frequency	50 Hz
Rated speed	720 rpm
Slip	4.00 %
Rated voltage	380 V
Rated current	73.3 A
L. R. Amperes	403 A
LRC	5.5x(Code F)
No load current	23.0 A
Rated torque	365 ft.lb
Locked rotor torque	140 %
Breakdown torque	200 %
Locked rotor time	36s (cold) 20s (hot)

Moment of inertia (J)	34.6 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	56.0 dB(A)
Approx. weight³	1012 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
92.4	91.7	90.2

Power factor

50%	75%	100%
0.74	0.82	0.85

Frame	404/5TC
Output	50 HP (37 kW)
Number of Poles	8
Frequency	50 Hz
Rated speed	725 rpm
Slip	3.33 %
Rated voltage	400 V
Rated current	69.9 A
L. R. Amperes	419 A
LRC	6.0x(Code G)
No load current	25.0 A
Rated torque	362 ft.lb
Locked rotor torque	160 %
Breakdown torque	229 %
Locked rotor time	37s (cold) 21s (hot)

Moment of inertia (J)	34.6 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	56.0 dB(A)
Approx. weight³	1012 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
92.4	91.7	91.0

Power factor

50%	75%	100%
0.71	0.80	0.84

Frame	404/5TC
Output	50 HP (37 kW)
Number of Poles	8
Frequency	50 Hz
Rated speed	725 rpm
Slip	3.33 %
Rated voltage	415 V
Rated current	68.2 A
L. R. Amperes	443 A
LRC	6.5x(Code H)
No load current	26.0 A
Rated torque	362 ft.lb
Locked rotor torque	180 %
Breakdown torque	250 %
Locked rotor time	36s (cold) 20s (hot)

Moment of inertia (J)	34.6 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	56.0 dB(A)
Approx. weight³	1012 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
92.4	91.7	91.0

Power factor

50%	75%	100%
0.68	0.78	0.83

Features

Frame Material	Cast Iron
Impregnation Method	Constant Resin Flow
Regreasing System	Extended in Stainless Steel, at Drive end and Non-drive end
Main terminal box hole	NPT 3"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Type T, Threaded
Shaft Material	SAE 4140 Carbon Steel
Painting	RAL 5009 202E (ISO 12944 - C4)
Grounding Lugs	Double
Fan Cover material	Cast Iron
Tropicalized Painting	According to IEEE-841 (96h)
Joints Seal	Molykote
Foot flatness	(0.005 pol) 0.127 mm
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	3
Fan material	Conductive Plastic
Screw cap	CARBON STEEL SAE 1010/20
NDE bearing Seal	Inpro/Seal
DE bearing Seal	Inpro/Seal
