/Products/Electric Motors/3 Phase/WEG/W22 General Purpose, TEFC/Foot Mount/05012ET3E365T-W22 WEG 50HP Severe Duty Electric Motor, 1200RPM

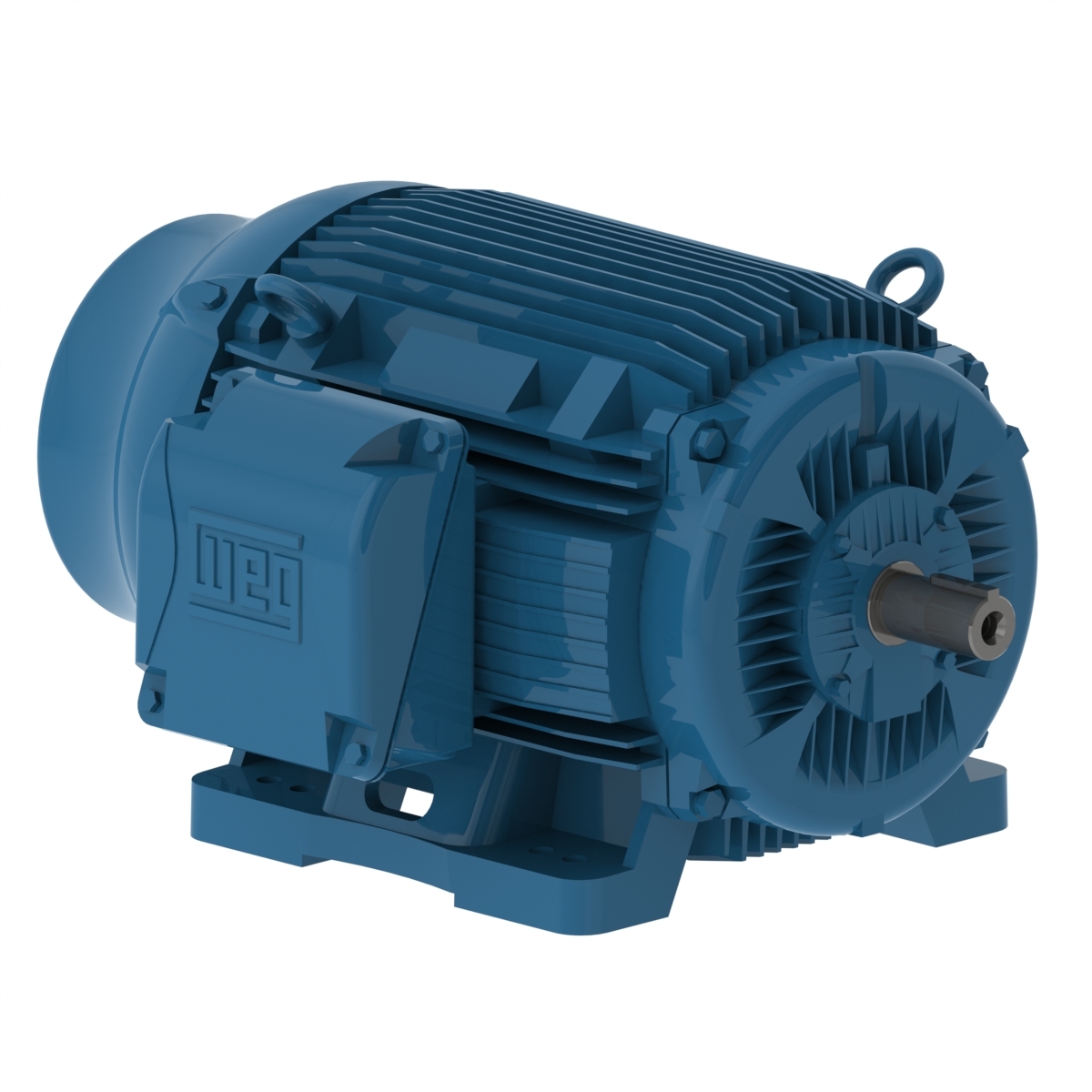

05012ET3E365T-W22 WEG 50HP Severe Duty Electric Motor, 1200RPM
Enlarge Photo

Product ID: 05012ET3E365T-W22

05012ET3E365T-W22 WEG 50HP Severe Duty Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: 05012ET3E365T-W22

Selected accessories will also be added to cart
$6,388.50 / Each
Quantity:
IC411-TEFC, IP55, 364T/365T Frame, 208-230/460VAC 60Hz 3-Phase, 11165648, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 2-3/8" Keyed Shaft

Electric Motors

Frame 364/5T
Output 50 HP (37 kW)
Number of Poles 6
Frequency 60 Hz
Rated speed 1180 rpm
Slip 1.67 %
Rated voltage 208-230/460 V
Rated current 127-115/57.4 A
L. R. Amperes 812-735/367 A
LRC 6.4x(Code G)
No load current 34.5-40.0/20.0 A
Rated torque 30.3 kgfm
Locked rotor torque 200 %
Breakdown torque 240 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 1.36 kgm²
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 66.0 dB(A)
Approx. weight³ 413 kg
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
93.6  94.1  94.1

Power factor

50% 75% 100%
0.74  0.83  0.86
Frame 364/5T
Output 40 HP (30 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 980 rpm
Slip 2.00 %
Rated voltage 380 V
Rated current 57.7 A
L. R. Amperes 358 A
LRC 6.2x(Code G)
No load current 19.8 A
Rated torque 29.2 kgfm
Locked rotor torque 200 %
Breakdown torque 240 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 1.36 kgm²
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 413 kg
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
92.7  92.8  92.9

Power factor

50% 75% 100%
0.72  0.82  0.85
Frame 364/5T
Output 40 HP (30 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 980 rpm
Slip 2.00 %
Rated voltage 400 V
Rated current 55.5 A
L. R. Amperes 377 A
LRC 6.4x(Code G)
No load current 21.1 A
Rated torque 29.2 kgfm
Locked rotor torque 229 %
Breakdown torque 260 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 1.36 kgm²
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 413 kg
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
92.7  93.1  92.9

Power factor

50% 75% 100%
0.70  0.81  0.84
Frame 364/5T
Output 40 HP (30 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 985 rpm
Slip 1.50 %
Rated voltage 415 V
Rated current 53.5 A
L. R. Amperes 396 A
LRC 6.4x(Code G)
No load current 22.1 A
Rated torque 29.1 kgfm
Locked rotor torque 250 %
Breakdown torque 290 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 1.36 kgm²
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 413 kg
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
92.6  93.1  92.9

Power factor

50% 75% 100%
0.66  0.79  0.84
Frame 364/5T
Output 50 HP (37 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 970 rpm
Slip 3.00 %
Rated voltage 380 V
Rated current 70.5 A
L. R. Amperes 345 A
LRC 6.4x(Code G)
No load current 19.8 A
Rated torque 36.9 kgfm
Locked rotor torque 160 %
Breakdown torque 190 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 1.36 kgm²
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 413 kg
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
93.0  92.4  91.7

Power factor

50% 75% 100%
0.77  0.84  0.87
Frame 364/5T
Output 50 HP (37 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 975 rpm
Slip 2.50 %
Rated voltage 400 V
Rated current 66.4 A
L. R. Amperes 365 A
LRC 6.4x(Code G)
No load current 21.1 A
Rated torque 36.7 kgfm
Locked rotor torque 180 %
Breakdown torque 210 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 1.36 kgm²
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 413 kg
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
93.0  93.0  92.4

Power factor

50% 75% 100%
0.77  0.83  0.87
Frame 364/5T
Output 50 HP (37 kW)
Number of Poles 6
Frequency 50 Hz
Rated speed 980 rpm
Slip 2.00 %
Rated voltage 415 V
Rated current 64.8 A
L. R. Amperes 389 A
LRC 6.4x(Code G)
No load current 22.1 A
Rated torque 36.5 kgfm
Locked rotor torque 200 %
Breakdown torque 229 %
Locked rotor time 32s (cold) 18s (hot)
Moment of inertia (J) 1.36 kgm²
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 63.0 dB(A)
Approx. weight³ 413 kg
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
93.0  93.0  92.4

Power factor

50% 75% 100%
0.74  0.83  0.86

Features

Frame Material Cast Iron
Impregnation Method Constant Resin Flow
Regreasing System At Drive end and Non-drive end
Main terminal box hole NPT 3"
Terminal Block Without
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 203A (ISO 12944 - C2)


Grounding Lugs Double
Fan Cover material Cast Iron
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without

 Loading...

 Loading...

 Loading...

 Loading...

 Loading...

 Loading...

 Loading...

 Loading...

Bearing details

  Drive End Non Drive End
Bearing type 6314 C3  6314 C3
Sealing WSeal  WSeal
Lubrication interval 17000 h  17000 h
Lubricant amount 27 g  27 g
Grease Type Mobil Polyrex EM

Foundation loads

Max. traction Max. compression
750 kgf  1163 kgf
