/Products/Electric Motors/3 Phase/WEG/W22 General Purpose, TEFC/Foot Mount, AEGIS SGR/05018ET3E326T-W22G WEG 50HP Severe Duty Electric Motor, 1800RPM

Product ID: 05018ET3E326T-W22G

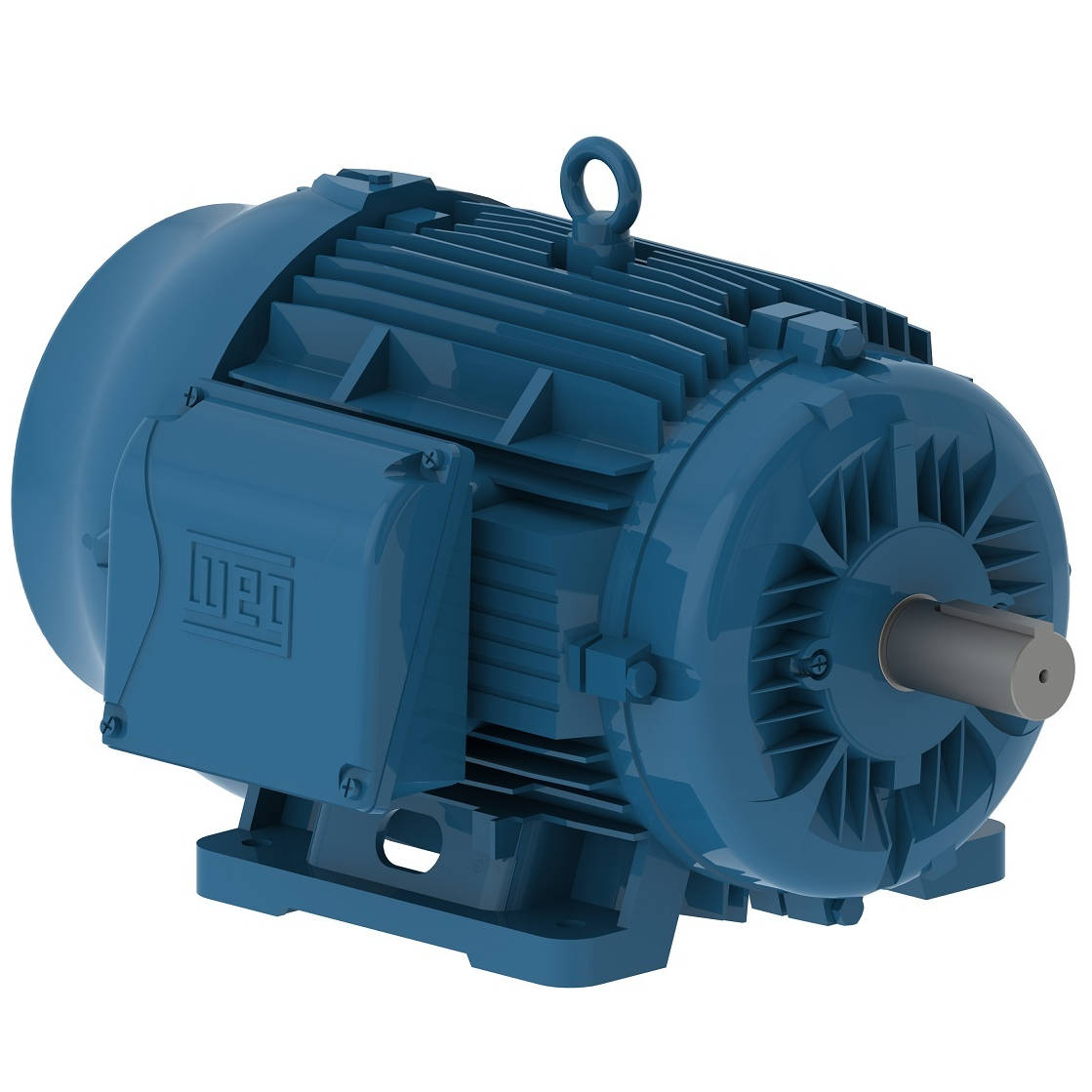

05018ET3E326T-W22G WEG 50HP Severe Duty Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 05018ET3E326T-W22G

Selected accessories will also be added to cart

$4,125.00 / Each

Quantity:

IC411 - TEFC, IP55, 324T/326T Frame, 208-230/460/380VAC 50/60Hz 3 Phase, 12700712, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 2-1/8" Keyed Shaft, AEGIS Shaft Grounding Ring

Details
Purchase Components

208-230/460 V 60 Hz 4P
380 V 50 Hz 4P

Electric Motors

Frame	324/6T
Output	50 HP (37 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1775 rpm
Slip	1.39 %
Rated voltage	208-230/460 V
Rated current	131-118/59.2 A
L. R. Amperes	812-732/367 A
LRC	6.2x(Code G)
No load current	40.5-47.0/23.5 A
Rated torque	148 ft.lb
Locked rotor torque	229 %
Breakdown torque	270 %

Locked rotor time	27s (cold) 15s (hot)
Design	B
Insulation Class	F
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	66.0 dB(A)
Approx. weight³	600 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
93.0	94.1	94.5

Power factor

50%	75%	100%
0.66	0.77	0.83

Frame	324/6T
Output	50 HP (37 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1460 rpm
Slip	2.67 %
Rated voltage	380 V
Rated current	71.6 A
L. R. Amperes	372 A
LRC	5.2x(Code E)
No load current	23.0 A
Rated torque	180 ft.lb
Locked rotor torque	180 %
Breakdown torque	210 %

Locked rotor time	19s (cold) 11s (hot)
Design	B
Insulation Class	F
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	63.0 dB(A)
Approx. weight³	600 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
93.0	93.0	92.4

Power factor

50%	75%	100%
0.72	0.81	0.85

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	NPT 2"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Cast Iron
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	12
