/Products/Electric Motors/3 Phase/WEG 3-Phase Electric Motors/Fire Pump/Foot Mount, Cast Iron/05036OP3EFP324TS-W40 WEG 50HP Fire Pump Electric Motor, 3600RPM

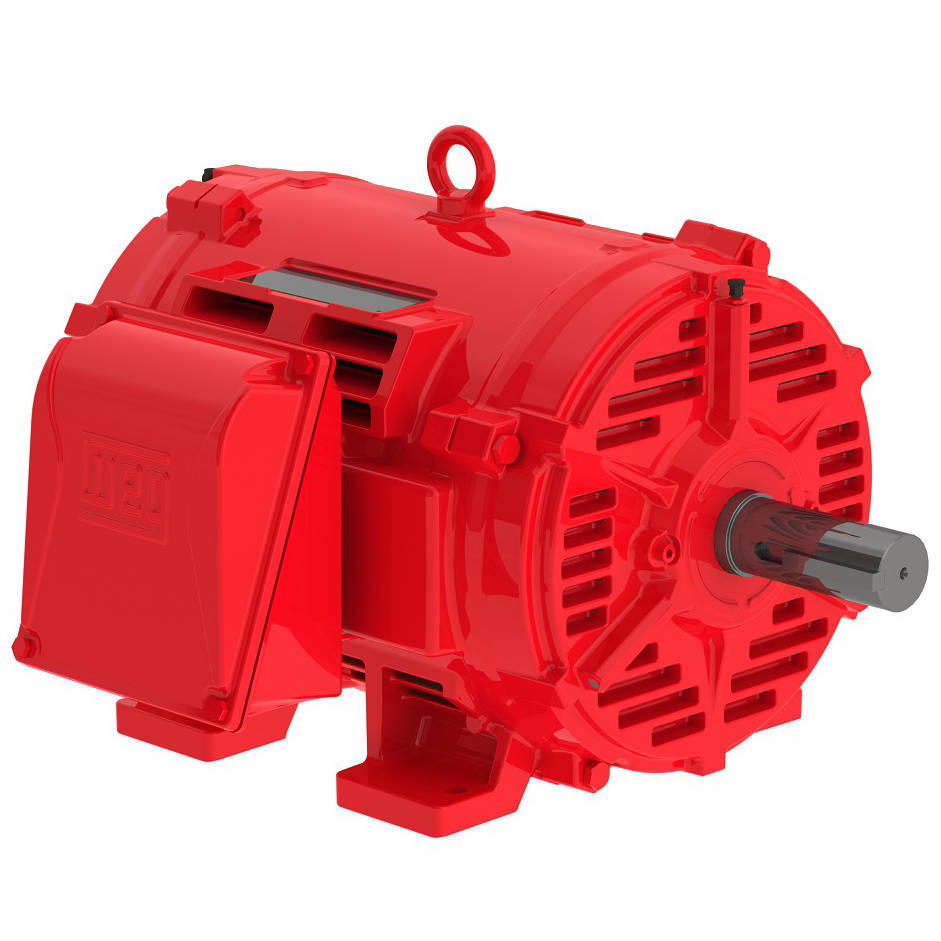

05036OP3EFP324TS-W40 WEG 50HP Fire Pump Electric Motor, 3600RPM
Enlarge Photo

Product ID: 05036OP3EFP324TS-W40

05036OP3EFP324TS-W40 WEG 50HP Fire Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 05036OP3EFP324TS-W40

Selected accessories will also be added to cart
$2,833.76 / Each
Quantity:
IC01 - ODP, IP23, 324TS Frame, 230/460VAC 60Hz 3 Phase, 14490989, High Efficiency, Foot Mounted, Cast Iron Frame, 1-7/8" Keyed Shaft

Electric Motors

Frame324TS
Output50 HP (37 kW)
Number of Poles2
Frequency60 Hz
Rated speed3555 rpm
Slip1.25 %
Rated voltage230/460 V
Rated current117/58.4 A
L. R. Amperes677/339 A
LRC5.8x(Code F)
No load current33.8/16.9 A
Rated torque73.9 ft.lb
Locked rotor torque170 %
Breakdown torque200 %
Locked rotor time36s (cold) 20s (hot)
Moment of inertia (J)3.01 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Approx. weight?425 lb

(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
91.7  92.4  92.4

Power factor

50%75%100%
0.78  0.84  0.86
Frame324TS
Output50 HP (37 kW)
Number of Poles2
Frequency50 Hz
Rated speed2940 rpm
Slip2.00 %
Rated voltage380 V
Rated current70.4 A
L. R. Amperes352 A
LRC5.0x(Code E)
No load current14.6 A
Rated torque89.3 ft.lb
Locked rotor torque140 %
Breakdown torque160 %
Locked rotor time18s (cold) 10s (hot)
Moment of inertia (J)3.01 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Approx. weight?425 lb
(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
90.2  90.2  90.7

Power factor

50%75%100%
0.84  0.88  0.88
Frame324TS
Output50 HP (37 kW)
Number of Poles2
Frequency50 Hz
Rated speed2945 rpm
Slip1.83 %
Rated voltage400 V
Rated current67.2 A
L. R. Amperes370 A
LRC5.5x(Code F)
No load current17.2 A
Rated torque89.2 ft.lb
Locked rotor torque160 %
Breakdown torque200 %
Locked rotor time21s (cold) 12s (hot)
Moment of inertia (J)3.01 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Approx. weight?425 lb
(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
91.0  91.0  91.4

Power factor

50%75%100%
0.80  0.86  0.87
Frame324TS
Output50 HP (37 kW)
Number of Poles2
Frequency50 Hz
Rated speed2950 rpm
Slip1.67 %
Rated voltage415 V
Rated current65.2 A
L. R. Amperes404 A
LRC6.2x(Code G)
No load current19.5 A
Rated torque89.0 ft.lb
Locked rotor torque170 %
Breakdown torque200 %
Locked rotor time18s (cold) 10s (hot)
Moment of inertia (J)3.01 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Approx. weight?425 lb
(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
91.0  91.7  91.8

Power factor

50%75%100%
0.76  0.84  0.86

Features

Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Regreasing SystemAt Drive end and Non-drive end
Main terminal box holeNPT 2"
Terminal BlockWithout
Shaft Locking DeviceWithout
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 3002 203A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Type
Electric Motor
Input Phase
3-Phase
Speed
3600RPM
Horsepower
50HP
Enclosure
ODP
Input Voltage
230VAC
Input Voltage
460VAC
Frame
324TS
Application
Fire Pump
