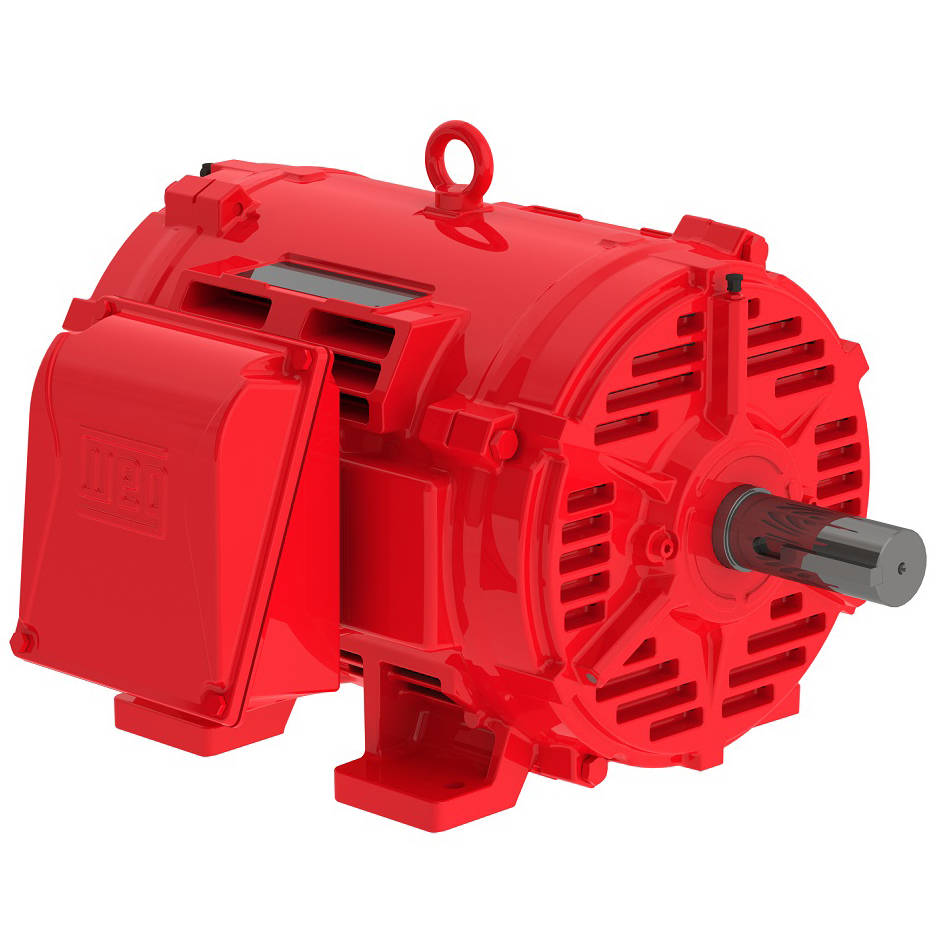

05036OP3VFP324TS-W40 WEG 50HP Fire Pump Electric Motor, 3600RPM
Enlarge Photo

Product ID: 05036OP3VFP324TS-W40

05036OP3VFP324TS-W40 WEG 50HP Fire Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 05036OP3VFP324TS-W40

Selected accessories will also be added to cart
$2,833.76 / Each
Quantity:
IC01 - ODP, IP23, 324TS Frame, 200/400VAC 60Hz 3 Phase, 14491069, High Efficiency, Foot Mounted, Cast Iron Frame, 1-7/8" Keyed Shaft

Electric Motors

Frame324TS
Output50 HP (37 kW)
Number of Poles2
Frequency60 Hz
Rated speed3555 rpm
Slip1.25 %
Rated voltage200/400 V
Rated current134/67.2 A
L. R. Amperes779/390 A
LRC5.8x(Code F)
No load current38.9/19.4 A
Rated torque73.9 ft.lb
Locked rotor torque170 %
Breakdown torque200 %
Locked rotor time36s (cold) 20s (hot)
Moment of inertia (J)3.01 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Approx. weight?425 lb

(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
91.7  92.4  92.4

Power factor

50%75%100%
0.78  0.84  0.86

Features

Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Regreasing SystemAt Drive end and Non-drive end
Main terminal box holeNPT 2"
Terminal BlockWithout
Shaft Locking DeviceWithout
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 3002 203A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Type
Electric Motor
Input Phase
3-Phase
Speed
3600RPM
Horsepower
50HP
Enclosure
ODP
Frame
324TS
Input Voltage
200VAC
Input Voltage
400VAC
Application
Fire Pump
