/Products/Electric Motors/3 Phase/WEG 3-Phase Electric Motors/W22 General Purpose, TEFC/Foot Mount/06009ET3E405T-W22 WEG 60HP Severe Duty Electric Motor, 900RPM

Product ID: 06009ET3E405T-W22

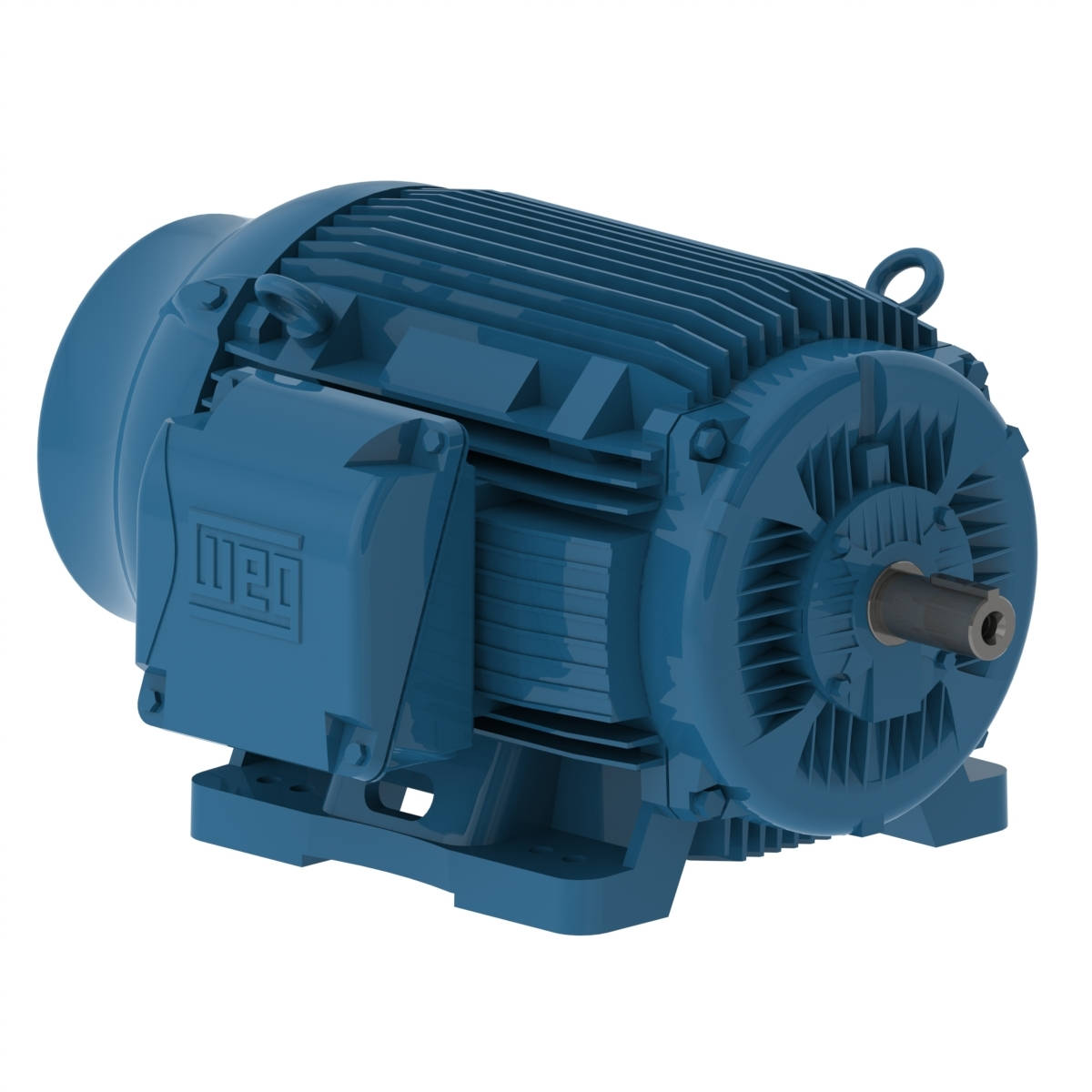

06009ET3E405T-W22 WEG 60HP Severe Duty Electric Motor, 900RPM

MFG: WEG Electric Corporation
MFG Part Number: 06009ET3E405T-W22

Selected accessories will also be added to cart

$18,194.27 / Each

Quantity:

IC411 - TEFC, IP55, 404T/405T Frame, 230/460/380VAC 50/60Hz 3 Phase, 11568741, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 2-7/8" Keyed Shaft

Electric Motors

Frame	404/5T
Output	60 HP (45 kW)
Number of Poles	8
Frequency	60 Hz
Rated speed	880 rpm
Slip	2.22 %
Rated voltage	230/460 V
Rated current	146/73.0 A
L. R. Amperes	949/475 A
LRC	6.5x(Code H)
No load current	60.0/30.0 A
Rated torque	358 ft.lb
Locked rotor torque	180 %
Breakdown torque	270 %
Locked rotor time	23s (cold) 13s (hot)

Moment of inertia (J)	40.2 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	60.0 dB(A)
Approx. weight?	1149 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
93.0	93.0	93.0

Power factor

50%	75%	100%
0.68	0.78	0.83

Frame	404/5T
Output	50 HP (37 kW)
Number of Poles	8
Frequency	50 Hz
Rated speed	725 rpm
Slip	3.33 %
Rated voltage	380 V
Rated current	72.9 A
L. R. Amperes	445 A
LRC	6.1x(Code G)
No load current	29.7 A
Rated torque	362 ft.lb
Locked rotor torque	180 %
Breakdown torque	250 %
Locked rotor time	18s (cold) 10s (hot)

Moment of inertia (J)	40.2 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	56.0 dB(A)
Approx. weight?	1149 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
92.4	92.1	91.8

Power factor

50%	75%	100%
0.67	0.79	0.84

Frame	404/5T
Output	50 HP (37 kW)
Number of Poles	8
Frequency	50 Hz
Rated speed	730 rpm
Slip	2.67 %
Rated voltage	400 V
Rated current	70.9 A
L. R. Amperes	475 A
LRC	6.7x(Code H)
No load current	32.0 A
Rated torque	360 ft.lb
Locked rotor torque	210 %
Breakdown torque	290 %
Locked rotor time	18s (cold) 10s (hot)

Moment of inertia (J)	40.2 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	56.0 dB(A)
Approx. weight?	1149 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.9	92.1	91.8

Power factor

50%	75%	100%
0.64	0.77	0.82

Frame	404/5T
Output	50 HP (37 kW)
Number of Poles	8
Frequency	50 Hz
Rated speed	730 rpm
Slip	2.67 %
Rated voltage	415 V
Rated current	69.2 A
L. R. Amperes	505 A
LRC	7.3x(Code J)
No load current	33.9 A
Rated torque	360 ft.lb
Locked rotor torque	229 %
Breakdown torque	310 %
Locked rotor time	18s (cold) 10s (hot)

Moment of inertia (J)	40.2 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	56.0 dB(A)
Approx. weight?	1149 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
91.9	92.2	91.8

Power factor

50%	75%	100%
0.61	0.74	0.81

Frame	404/5T
Output	60 HP (45 kW)
Number of Poles	8
Frequency	50 Hz
Rated speed	720 rpm
Slip	4.00 %
Rated voltage	380 V
Rated current	89.2 A
L. R. Amperes	455 A
LRC	5.1x(Code E)
No load current	29.7 A
Rated torque	438 ft.lb
Locked rotor torque	150 %
Breakdown torque	210 %
Locked rotor time	18s (cold) 10s (hot)

Moment of inertia (J)	40.2 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	56.0 dB(A)
Approx. weight?	1149 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
92.4	91.7	90.2

Power factor

50%	75%	100%
0.74	0.82	0.85

Frame	404/5T
Output	60 HP (45 kW)
Number of Poles	8
Frequency	50 Hz
Rated speed	725 rpm
Slip	3.33 %
Rated voltage	400 V
Rated current	85.0 A
L. R. Amperes	485 A
LRC	5.7x(Code F)
No load current	32.0 A
Rated torque	435 ft.lb
Locked rotor torque	170 %
Breakdown torque	240 %
Locked rotor time	18s (cold) 10s (hot)

Moment of inertia (J)	40.2 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	56.0 dB(A)
Approx. weight?	1149 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
92.4	91.7	91.0

Power factor

50%	75%	100%
0.71	0.80	0.84

Frame	404/5T
Output	60 HP (45 kW)
Number of Poles	8
Frequency	50 Hz
Rated speed	725 rpm
Slip	3.33 %
Rated voltage	415 V
Rated current	82.9 A
L. R. Amperes	514 A
LRC	6.2x(Code G)
No load current	33.9 A
Rated torque	435 ft.lb
Locked rotor torque	190 %
Breakdown torque	260 %
Locked rotor time	18s (cold) 10s (hot)

Moment of inertia (J)	40.2 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	56.0 dB(A)
Approx. weight?	1149 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
92.4	91.7	91.0

Power factor

50%	75%	100%
0.68	0.78	0.83

Features

Frame Material	Cast Iron
Impregnation Method	Constant Resin Flow
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	NPT 3"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Rubber, automatic
Shaft Material	SAE 4140 Carbon Steel
Painting	RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs	Double
Fan Cover material	Cast Iron
Tropicalized Painting	Without
Fan material	Plastic
Bearing cap	Yes- Bearing Cap
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	12
