Product ID: 06018ET3E364T-W22

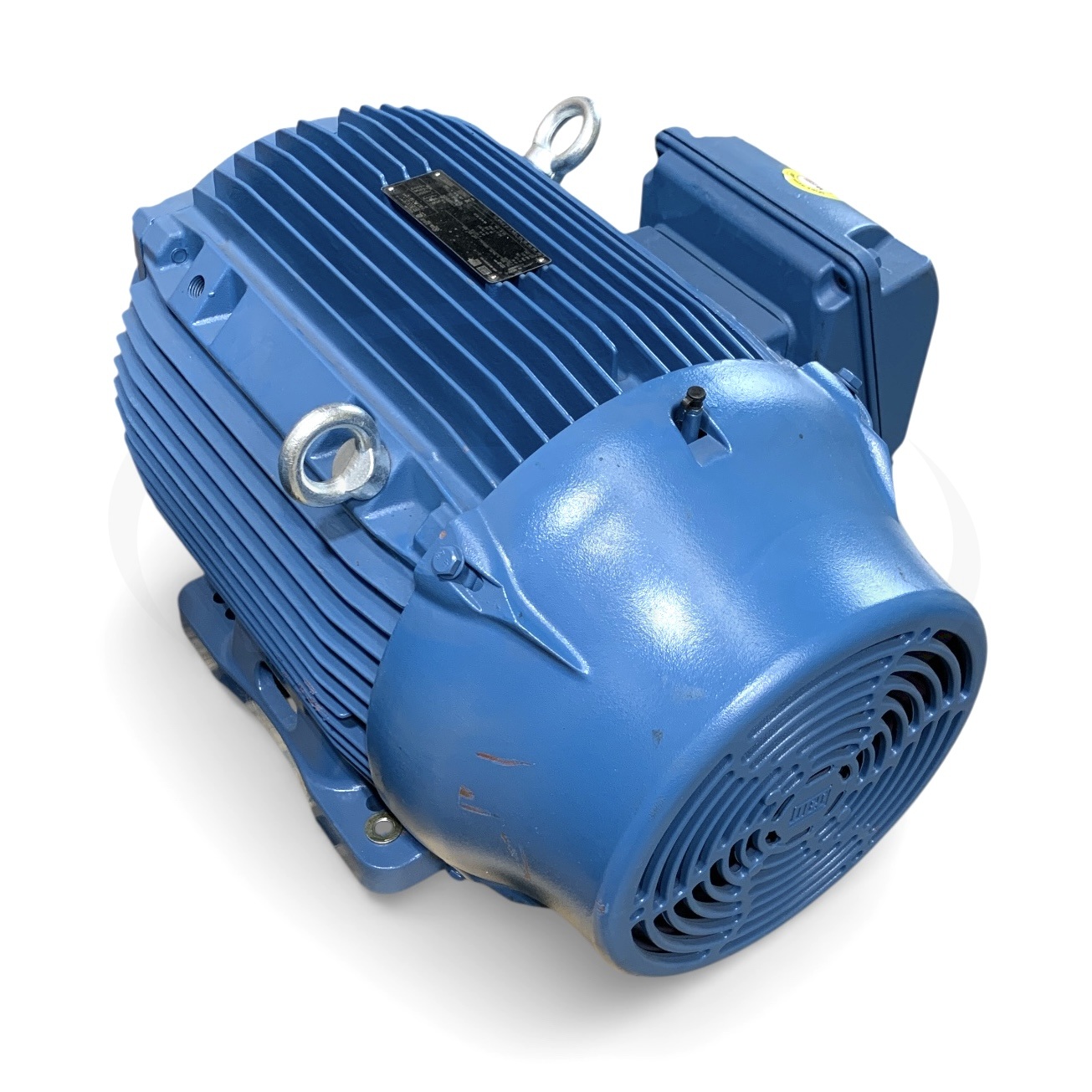

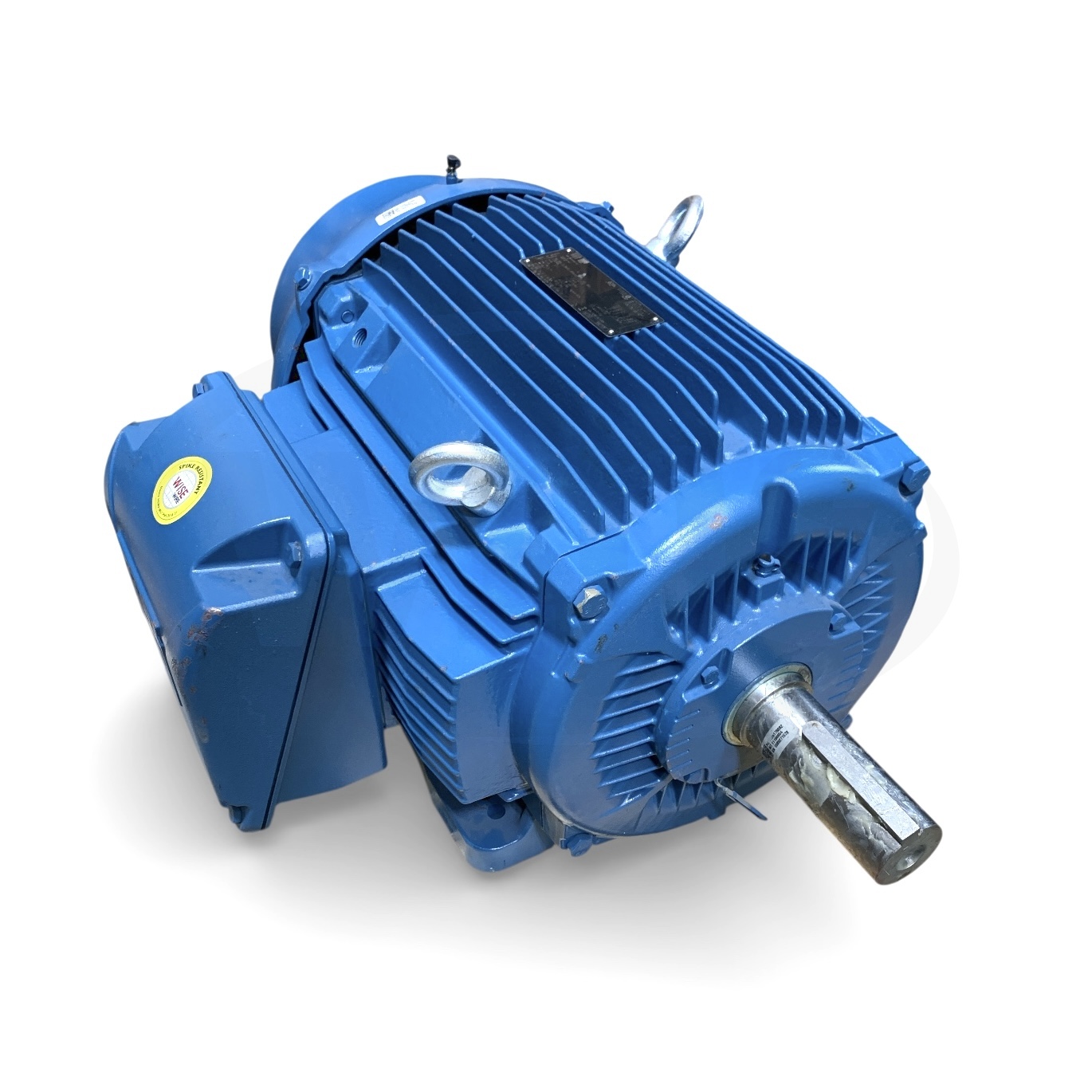

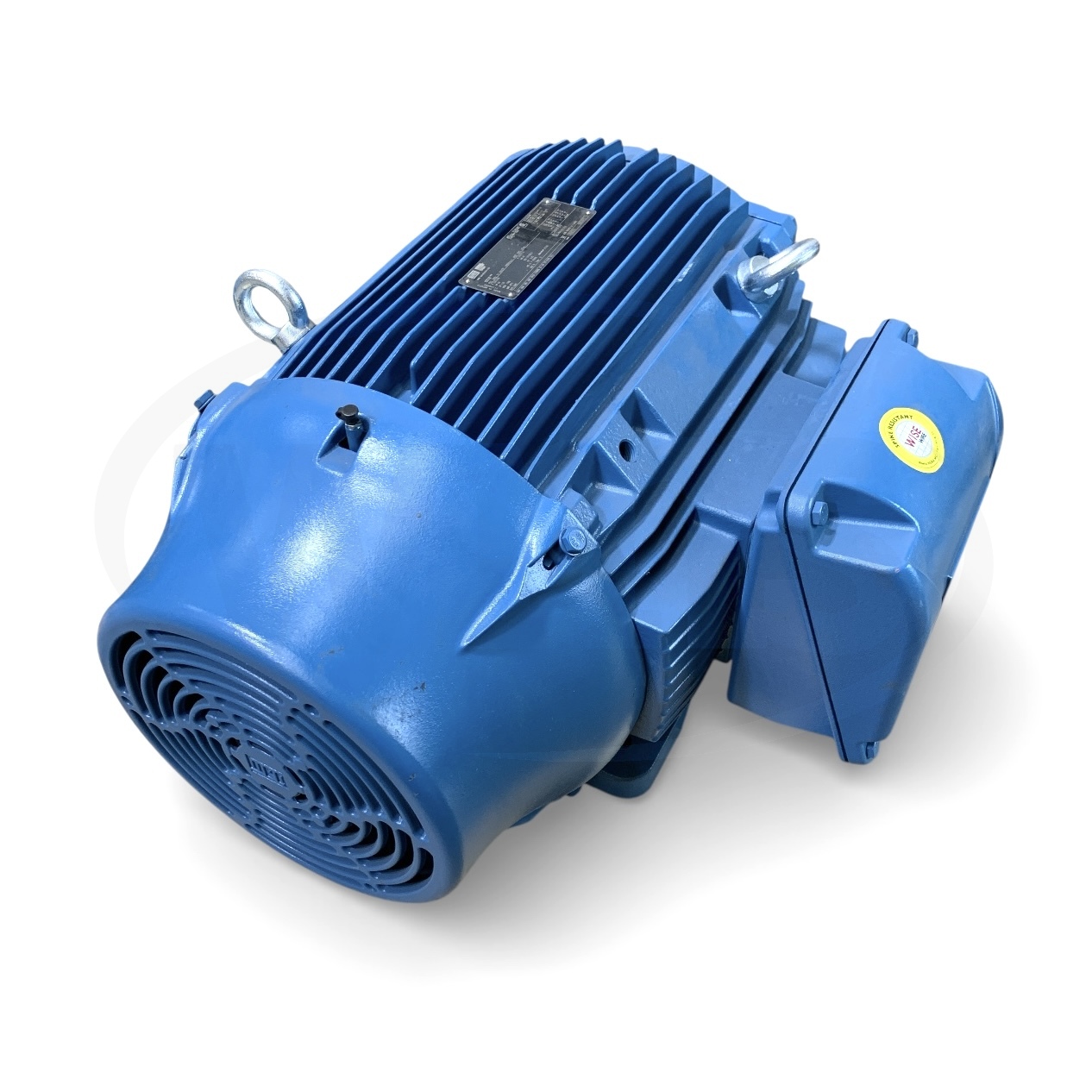

06018ET3E364T-W22 WEG 60HP Severe Duty Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 06018ET3E364T-W22

Selected accessories will also be added to cart

$6,576.21 / Each

Quantity:

IC411 - TEFC, IP55, 364T/365T Frame, 208-230/460VAC 60Hz 3 Phase, 11166654, Foot Mounted, Cast Iron Frame, NEMA Premium Efficiency, 2-3/8" Keyed Shaft

Electric Motors

Frame	364/5T
Output	60 HP (45 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1775 rpm
Slip	1.39 %
Rated voltage	208-230/460 V
Rated current	151-137/68.3 A
L. R. Amperes	1000-902/451 A
LRC	6.6x(Code G)
No load current	41.4-48.0/24.0 A
Rated torque	175 ft.lb
Locked rotor torque	240 %
Breakdown torque	260 %
Locked rotor time	27s (cold) 15s (hot)

Moment of inertia (J)	22.4 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	67.0 dB(A)
Approx. weight?	922 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
94.1	94.5	95.0

Power factor

50%	75%	100%
0.75	0.83	0.87

Frame	364/5T
Output	50 HP (37 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1470 rpm
Slip	2.00 %
Rated voltage	380 V
Rated current	67.8 A
L. R. Amperes	427 A
LRC	6.3x(Code G)
No load current	23.8 A
Rated torque	176 ft.lb
Locked rotor torque	229 %
Breakdown torque	240 %
Locked rotor time	18s (cold) 10s (hot)

Moment of inertia (J)	22.4 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	63.0 dB(A)
Approx. weight?	922 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
93.7	93.9	94.2

Power factor

50%	75%	100%
0.74	0.84	0.88

Frame	364/5T
Output	50 HP (37 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1475 rpm
Slip	1.67 %
Rated voltage	400 V
Rated current	65.2 A
L. R. Amperes	450 A
LRC	6.9x(Code G)
No load current	25.3 A
Rated torque	176 ft.lb
Locked rotor torque	250 %
Breakdown torque	280 %
Locked rotor time	18s (cold) 10s (hot)

Moment of inertia (J)	22.4 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	63.0 dB(A)
Approx. weight?	922 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
93.3	93.9	94.2

Power factor

50%	75%	100%
0.70	0.82	0.87

Frame	364/5T
Output	50 HP (37 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1475 rpm
Slip	1.67 %
Rated voltage	415 V
Rated current	64.3 A
L. R. Amperes	476 A
LRC	7.4x(Code H)
No load current	26.6 A
Rated torque	176 ft.lb
Locked rotor torque	280 %
Breakdown torque	300 %
Locked rotor time	18s (cold) 10s (hot)

Moment of inertia (J)	22.4 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	63.0 dB(A)
Approx. weight?	922 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
93.4	94.2	94.3

Power factor

50%	75%	100%
0.68	0.80	0.86

Frame	364/5T
Output	60 HP (45 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1465 rpm
Slip	2.33 %
Rated voltage	380 V
Rated current	83.5 A
L. R. Amperes	434 A
LRC	5.2x(Code E)
No load current	23.8 A
Rated torque	212 ft.lb
Locked rotor torque	190 %
Breakdown torque	200 %
Locked rotor time	18s (cold) 10s (hot)

Moment of inertia (J)	22.4 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	63.0 dB(A)
Approx. weight?	922 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
94.1	93.6	93.0

Power factor

50%	75%	100%
0.80	0.86	0.88

Frame	364/5T
Output	60 HP (45 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1470 rpm
Slip	2.00 %
Rated voltage	400 V
Rated current	78.9 A
L. R. Amperes	458 A
LRC	5.8x(Code F)
No load current	25.3 A
Rated torque	211 ft.lb
Locked rotor torque	210 %
Breakdown torque	229 %
Locked rotor time	18s (cold) 10s (hot)

Moment of inertia (J)	22.4 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	63.0 dB(A)
Approx. weight?	922 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
94.1	93.6	93.6

Power factor

50%	75%	100%
0.77	0.84	0.88

Frame	364/5T
Output	60 HP (45 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1470 rpm
Slip	2.00 %
Rated voltage	415 V
Rated current	76.5 A
L. R. Amperes	474 A
LRC	6.2x(Code G)
No load current	26.6 A
Rated torque	211 ft.lb
Locked rotor torque	229 %
Breakdown torque	250 %
Locked rotor time	18s (cold) 10s (hot)

Moment of inertia (J)	22.4 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	63.0 dB(A)
Approx. weight?	922 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
