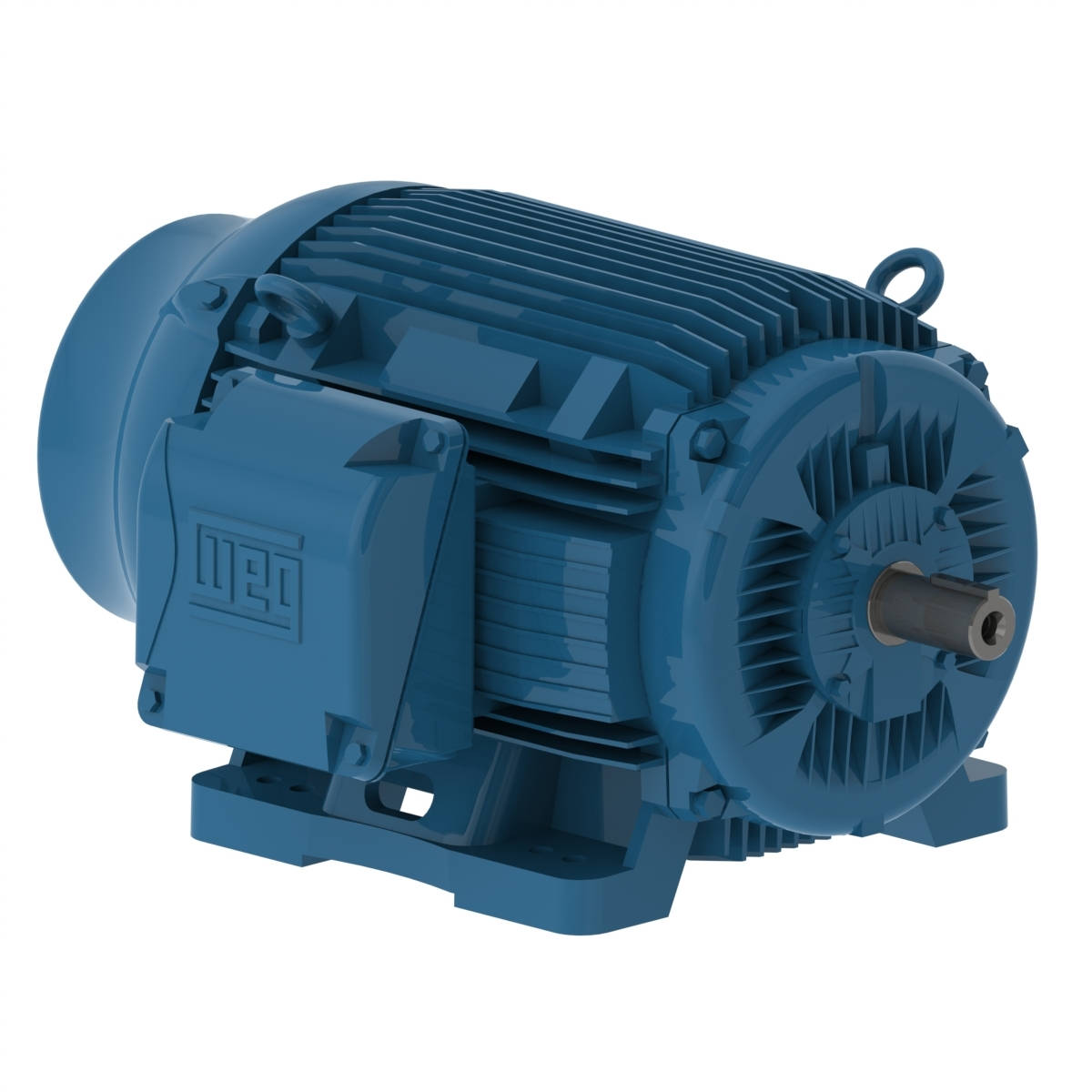

06018ET3H364T-W22 WEG 60HP Severe Duty Electric Motor, 1800RPM
Enlarge Photo

Product ID: 06018ET3H364T-W22

06018ET3H364T-W22 WEG 60HP Severe Duty Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 06018ET3H364T-W22

Selected accessories will also be added to cart
$6,576.21 / Each
Quantity:
IC411 - TEFC, IP55, 364T/365T Frame, 575VAC 60Hz 3 Phase, 11164521, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 2-3/8" Keyed Shaft

Electric Motors

Frame 364/5T
Output 60 HP (45 kW)
Number of Poles 4
Frequency 60 Hz
Rated speed 1780 rpm
Slip 1.11 %
Rated voltage 575 V
Rated current 57.3 A
L. R. Amperes 355 A
LRC 6.2x(Code G)
No load current 20.8 A
Rated torque 177 ft.lb
Locked rotor torque 220 %
Breakdown torque 240 %
Locked rotor time 27s (cold) 15s (hot)
Moment of inertia (J) 22.4 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 67.0 dB(A)
Approx. weight³ 875 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
94.1  94.5  95.0

Power factor

50% 75% 100%
0.71  0.80  0.83

Features

Frame Material Cast Iron
Impregnation Method Constant Resin Flow
Regreasing System At Drive end and Non-drive end
Main terminal box hole NPT 3"
Terminal Block Without
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs Double
Fan Cover material Cast Iron
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Balancing Method 1/2 Key
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 6
Type
Electric Motor
Input Phase
3-Phase
Speed
1800RPM
Application
Severe Duty
Enclosure
TEFC
Horsepower
60HP
Input Voltage
575VAC
Frame
364T
Frame
365T
