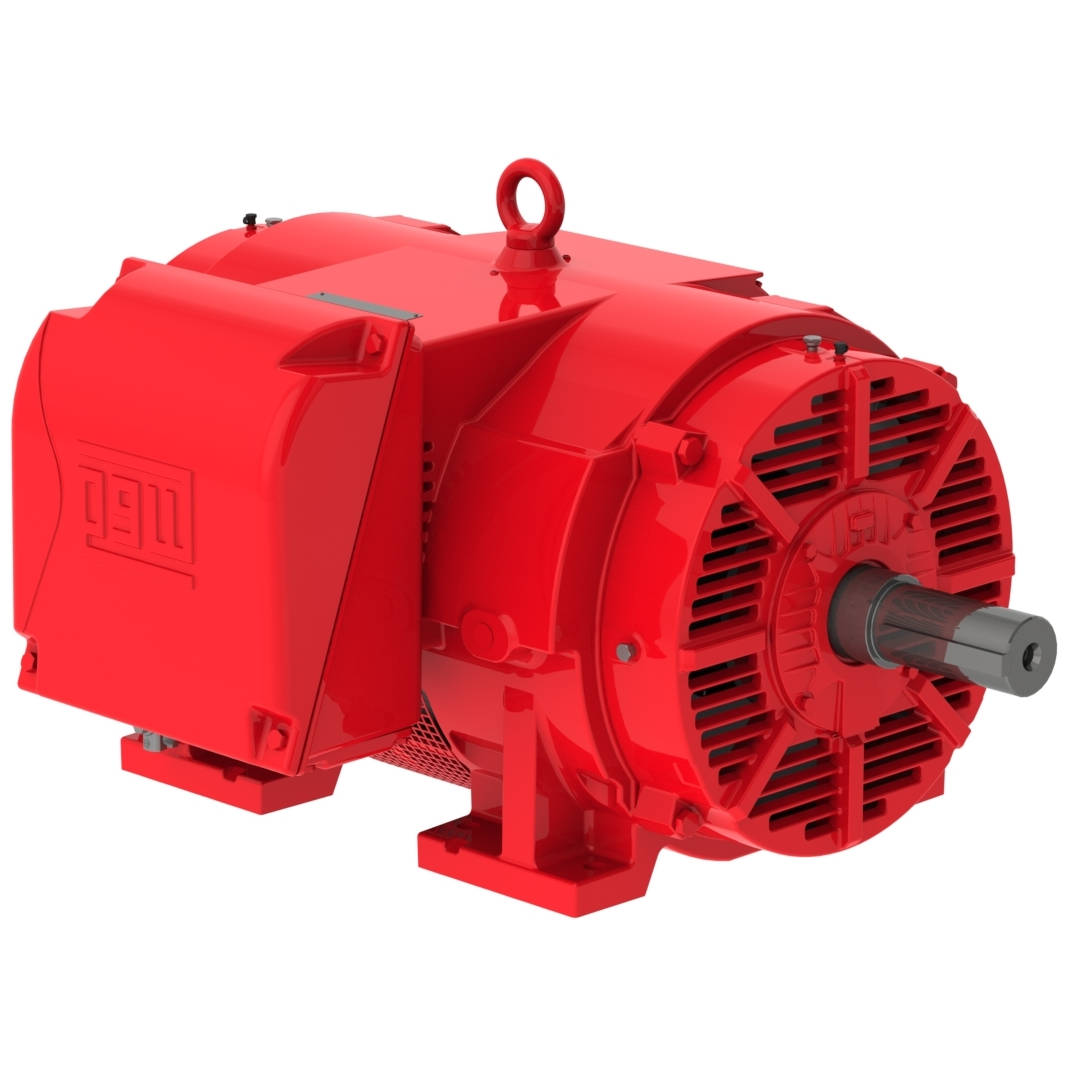

06018OP3EFP364TS-W40 WEG 60HP Fire Pump Electric Motor, 1800RPM
Enlarge Photo

Product ID: 06018OP3EFP364TS-W40

06018OP3EFP364TS-W40 WEG 60HP Fire Pump Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 06018OP3EFP364TS-W40

Selected accessories will also be added to cart
$3,295.67 / Each
Quantity:
IC01 - ODP, IP23, 364TS/365TS Frame, 230/460VAC 60Hz 3 Phase, 14281211, High Efficiency, Foot Mounted, Cast Iron Frame

Electric Motors

Frame364/5TS
Output60 HP (45 kW)
Number of Poles4
Frequency60 Hz
Rated speed1777 rpm
Slip1.28 %
Rated voltage230/460 V
Rated current142/71.0 A
L. R. Amperes866/433 A
LRC6.1x(Code G)
No load current46.0/23.0 A
Rated torque177 ft.lb
Locked rotor torque180 %
Breakdown torque229 %
Locked rotor time39s (cold) 22s (hot)
Moment of inertia (J)12.8 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Approx. weight?662 lb

(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
93.0  93.6  93.6

Power factor

50%75%100%
0.73  0.82  0.85
Frame364/5TS
Output60 HP (45 kW)
Number of Poles4
Frequency50 Hz
Rated speed1470 rpm
Slip2.00 %
Rated voltage380 V
Rated current85.8 A
L. R. Amperes472 A
LRC5.5x(Code F)
No load current23.0 A
Rated torque214 ft.lb
Locked rotor torque140 %
Breakdown torque200 %
Locked rotor time25s (cold) 14s (hot)
Moment of inertia (J)12.8 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Approx. weight?662 lb
(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
91.0  91.6  91.6

Power factor

50%75%100%
0.78  0.85  0.87
Frame364/5TS
Output60 HP (45 kW)
Number of Poles4
Frequency50 Hz
Rated speed1480 rpm
Slip1.33 %
Rated voltage400 V
Rated current82.4 A
L. R. Amperes503 A
LRC6.1x(Code G)
No load current24.5 A
Rated torque213 ft.lb
Locked rotor torque140 %
Breakdown torque200 %
Locked rotor time27s (cold) 15s (hot)
Moment of inertia (J)12.8 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Approx. weight?662 lb
(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
91.0  91.7  91.7

Power factor

50%75%100%
0.74  0.83  0.86
Frame364/5TS
Output60 HP (45 kW)
Number of Poles4
Frequency50 Hz
Rated speed1475 rpm
Slip1.67 %
Rated voltage415 V
Rated current80.1 A
L. R. Amperes521 A
LRC6.5x(Code G)
No load current27.0 A
Rated torque214 ft.lb
Locked rotor torque170 %
Breakdown torque220 %
Locked rotor time27s (cold) 15s (hot)
Moment of inertia (J)12.8 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Approx. weight?662 lb
(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
91.8  92.0  92.0

Power factor

50%75%100%
0.71  0.81  0.85

Features

Frame MaterialCast Iron
Impregnation MethodConstant Resin Flow
Regreasing SystemAt Drive end and Non-drive end
Main terminal box holeNPT 3"
Terminal BlockWithout
Shaft Locking DeviceWithout
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 3002 203A (ISO 12944 - C2)
Grounding LugsDouble
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Type
Electric Motor
Input Phase
3-Phase
Speed
1800RPM
Enclosure
ODP
Horsepower
60HP
Input Voltage
230VAC
Input Voltage
460VAC
Frame
364TS
Application
Fire Pump
Frame
365TS
