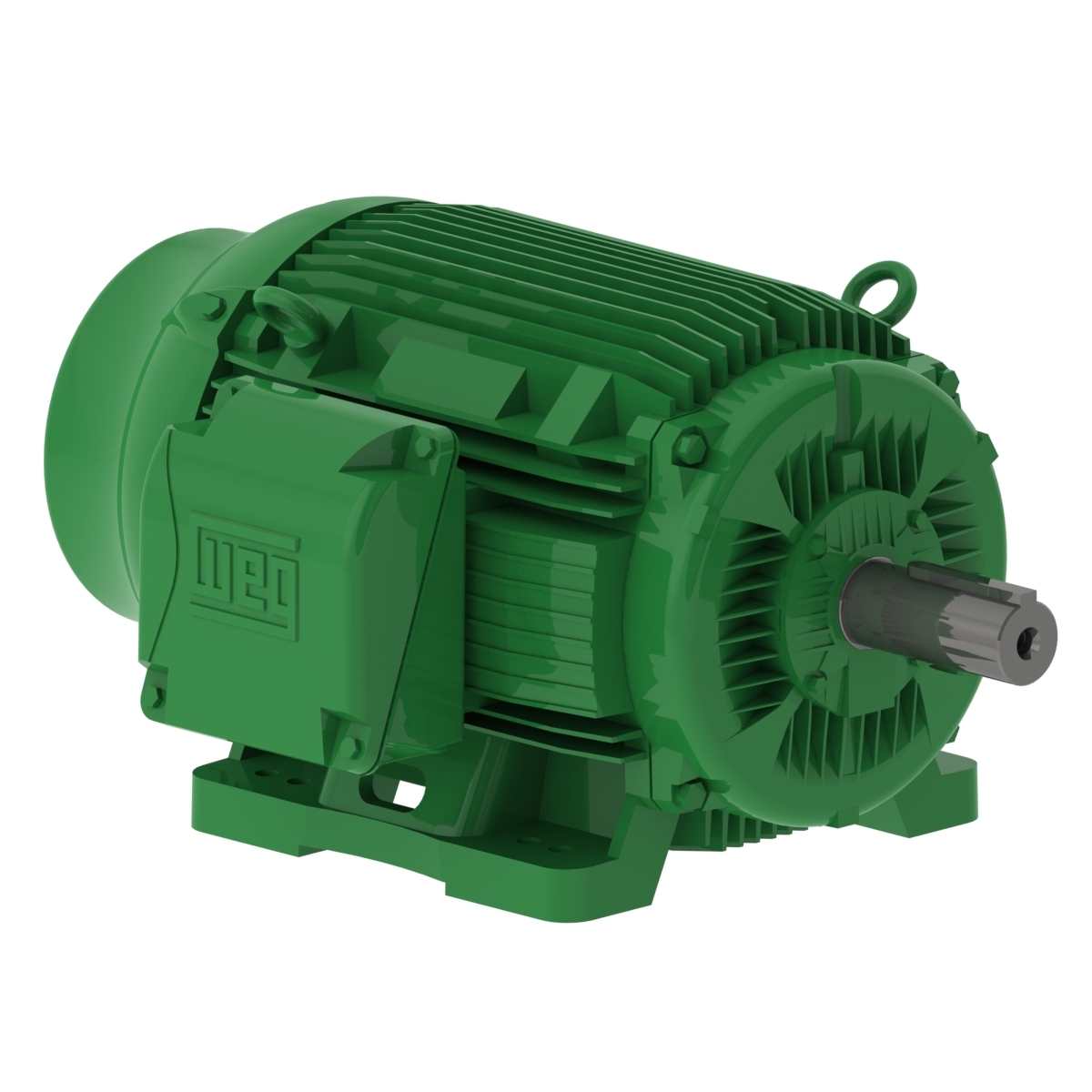

06036EG3E364TS-W22 WEG 60HP Electric Motor, 3600RPM
Enlarge Photo

Product ID: 06036EG3E364TS-W22

06036EG3E364TS-W22 WEG 60HP Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 06036EG3E364TS-W22

Selected accessories will also be added to cart
$7,393.23 / Each
Quantity:
IC411 - TEFC, IP55, 364TS/365TS Frame, 208-230/460VAC 60Hz 3 Phase, 11792471, Super Premium Efficiency, Foot Mounted, Cast Iron Frame, 1-7/8" Keyed Shaft

Electric Motors

Frame364/5TS
Output60 HP (45 kW)
Number of Poles2
Frequency60 Hz
Rated speed3570 rpm
Slip0.83 %
Rated voltage230/460 V
Rated current134/66.8 A
L. R. Amperes1055/528 A
LRC7.9x(Code H)
No load current44.0/22.0 A
Rated torque88.3 ft.lb
Locked rotor torque240 %
Breakdown torque320 %
Locked rotor time45s (cold) 25s (hot)
Moment of inertia (J)8.61 sq.ft.lb
DesignA
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?79.0 dB(A)
Approx. weight?902 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
93.0  94.5  95.0

Power factor

50%75%100%
0.79  0.86  0.89
Frame364/5TS
Output60 HP (45 kW)
Number of Poles2
Frequency50 Hz
Rated speed2960 rpm
Slip1.33 %
Rated voltage380 V
Rated current79.5 A
L. R. Amperes509 A
LRC6.4x(Code F)
No load current21.7 A
Rated torque106 ft.lb
Locked rotor torque180 %
Breakdown torque260 %
Locked rotor time36s (cold) 20s (hot)
Moment of inertia (J)8.61 sq.ft.lb
DesignA
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?74.0 dB(A)
Approx. weight?902 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
94.1  94.5  94.5

Power factor

50%75%100%
0.83  0.89  0.91
Frame364/5TS
Output60 HP (45 kW)
Number of Poles2
Frequency50 Hz
Rated speed2965 rpm
Slip1.17 %
Rated voltage400 V
Rated current76.0 A
L. R. Amperes532 A
LRC7.0x(Code G)
No load current23.5 A
Rated torque106 ft.lb
Locked rotor torque200 %
Breakdown torque280 %
Locked rotor time36s (cold) 20s (hot)
Moment of inertia (J)8.61 sq.ft.lb
DesignA
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?74.0 dB(A)
Approx. weight?902 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
94.5  95.0  95.0

Power factor

50%75%100%
0.80  0.87  0.90
Frame364/5TS
Output60 HP (45 kW)
Number of Poles2
Frequency50 Hz
Rated speed2970 rpm
Slip1.00 %
Rated voltage415 V
Rated current74.0 A
L. R. Amperes548 A
LRC7.4x(Code H)
No load current24.5 A
Rated torque106 ft.lb
Locked rotor torque220 %
Breakdown torque300 %
Locked rotor time36s (cold) 20s (hot)
Moment of inertia (J)8.61 sq.ft.lb
DesignA
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?74.0 dB(A)
Approx. weight?902 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
94.5  95.0  95.0

Power factor

50%75%100%
0.78  0.86  0.89

Features

Frame MaterialCast Iron
Impregnation MethodConstant Resin Flow
Regreasing SystemAt Drive end and Non-drive end
Main terminal box holeNPT 3"
Terminal BlockWithout
Shaft Locking DeviceWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 6002 203A (ISO 12944 - C2)
Grounding LugsDouble
Fan Cover materialCast Iron
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capYes- Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Type
Electric Motor
Input Phase
3-Phase
Speed
3600RPM
Enclosure
TEFC
Horsepower
60HP
Input Voltage
208VAC
Input Voltage
230VAC
Input Voltage
460VAC
Frame
364TS
Frame
365TS
