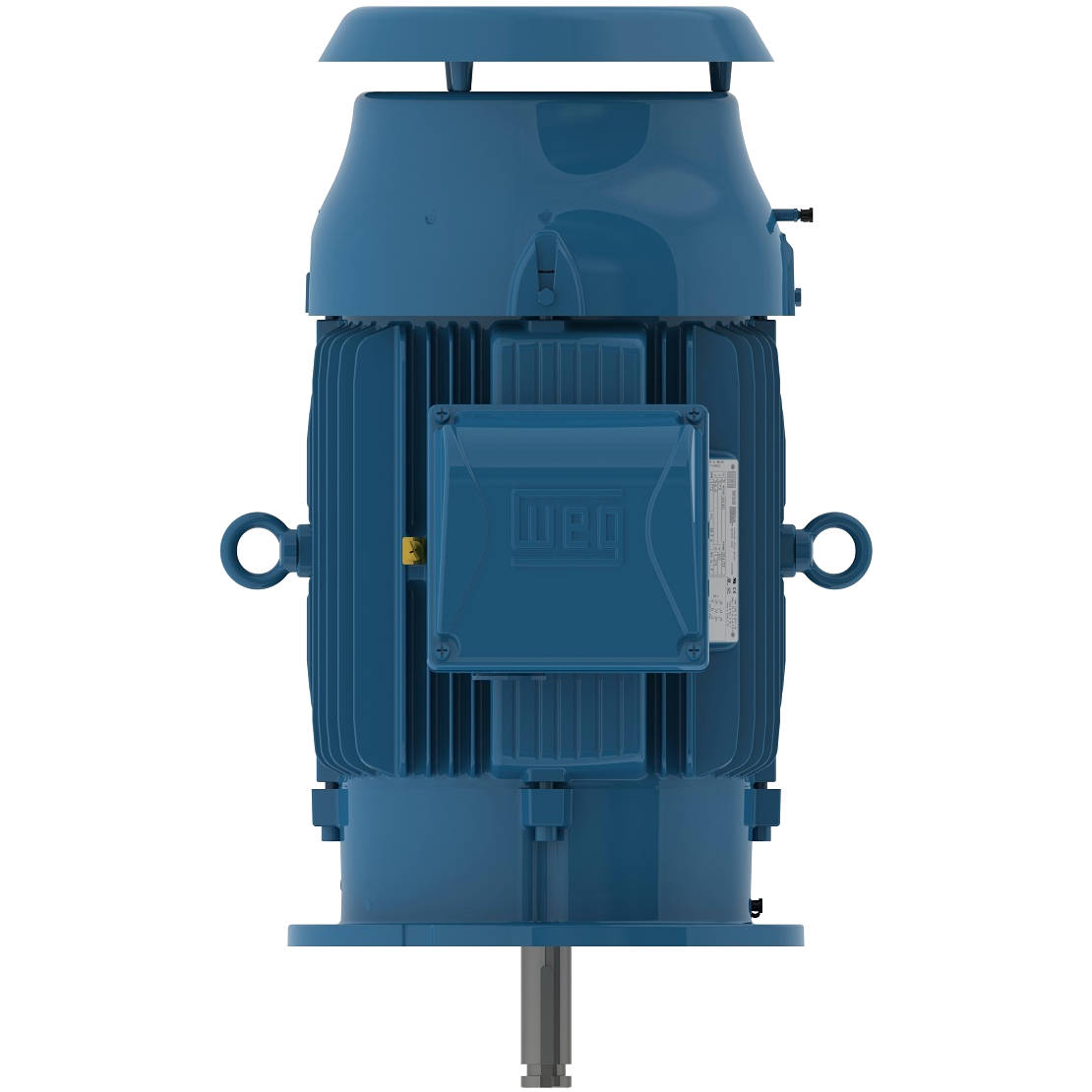

06036ET3E326HP-W22 WEG 60HP P-Base Pump Electric Motor, 3600RPM
Enlarge Photo

Product ID: 06036ET3E326HP-W22

06036ET3E326HP-W22 WEG 60HP P-Base Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 06036ET3E326HP-W22

Selected accessories will also be added to cart
$7,682.48 / Each
Quantity:
IC411 - TEFC, IP55, 326HP Frame, 208-230/460VAC 60Hz 3 Phase, 13569763, NEMA Premium Efficiency, Footless, Cast Iron Frame, 1-5/8" Keyed Shaft

Electric Motors

Frame326HP
Output60 HP (45 kW)
Number of Poles2
Frequency60 Hz
Rated speed3550 rpm
Slip1.39 %
Rated voltage208-230/460 V
Rated current152-137/68.6 A
L. R. Amperes958-863/432 A
LRC6.3x(Code G)
No load current31.0-36.0/18.0 A
Rated torque88.8 ft.lb
Locked rotor torque240 %
Breakdown torque250 %
Locked rotor time21s (cold) 12s (hot)
DesignB
Insulation ClassF
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingW-6
Rotation?Both (CW and CCW)
Approx. weight?611 lb

(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
92.5  93.6  93.6

Power factor

50%75%100%
0.80  0.86  0.88

Features

Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Regreasing SystemAt Drive end and Non-drive end
Main terminal box holeNPT 2"
Terminal BlockWithout
Shaft Locking DeviceWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 203A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialCast Iron
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capYes- Bearing Cap
Balancing Method1/2 Key
Drip CoverWith
Overload protector (phenolic)Without overload protector
Connection Cables Quantity12
Type
Electric Motor
Input Phase
3-Phase
Speed
3600RPM
Enclosure
TEFC
Horsepower
60HP
Input Voltage
208VAC
Input Voltage
230VAC
Input Voltage
460VAC
Frame
326HP
