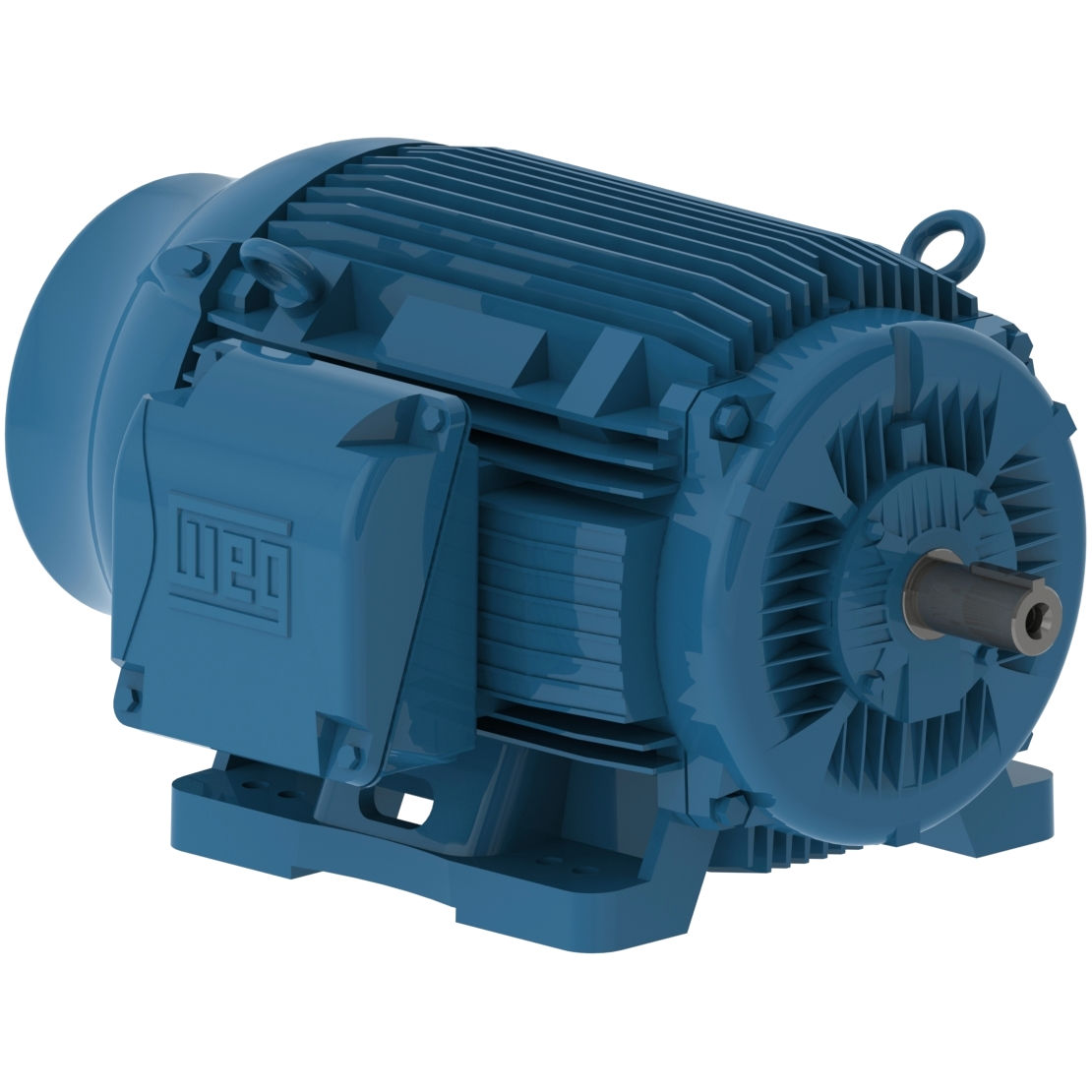

06036ET3E364TS-W22G WEG 60HP Severe Duty Electric Motor, 3600RPM
Enlarge Photo

Product ID: 06036ET3E364TS-W22G

06036ET3E364TS-W22G WEG 60HP Severe Duty Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 06036ET3E364TS-W22G

Selected accessories will also be added to cart
$6,294.00 / Each
Quantity:
IC411 - TEFC, IP55, 364TS/365TS Frame, 230/460/380VAC 50/60Hz 3 Phase, 12770002, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, AEGIS Shaft Grounding Ring, 1-7/8" Keyed Shaft

Electric Motors

Frame 364/5TS
Output 60 HP (45 kW)
Number of Poles 2
Frequency 60 Hz
Rated speed 3560 rpm
Slip 1.11 %
Rated voltage 230/460 V
Rated current 134/67.0 A
L. R. Amperes 884/442 A
LRC 6.6x(Code G)
No load current 30.0/15.0 A
Rated torque 88.5 ft.lb
Locked rotor torque 200 %
Breakdown torque 260 %
Locked rotor time 25s (cold) 14s (hot)
Moment of inertia (J) 10.6 sq.ft.lb
Design B
Insulation Class F
Service factor 1.25
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 79.0 dB(A)
Approx. weight³ 853 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
91.7  93.0  93.6

Power factor

50% 75% 100%
0.81  0.88  0.90
Frame 364/5TS
Output 50 HP (37 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2955 rpm
Slip 1.50 %
Rated voltage 380 V
Rated current 65.9 A
L. R. Amperes 415 A
LRC 6.3x(Code F)
No load current 15.0 A
Rated torque 88.9 ft.lb
Locked rotor torque 190 %
Breakdown torque 250 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 10.6 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 74.0 dB(A)
Approx. weight³ 853 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
92.1  92.8  93.7

Power factor

50% 75% 100%
0.81  0.88  0.91
Frame 364/5TS
Output 50 HP (37 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2960 rpm
Slip 1.33 %
Rated voltage 400 V
Rated current 63.3 A
L. R. Amperes 443 A
LRC 7.0x(Code G)
No load current 16.2 A
Rated torque 88.7 ft.lb
Locked rotor torque 220 %
Breakdown torque 280 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 10.6 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 74.0 dB(A)
Approx. weight³ 853 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
91.7  92.8  93.7

Power factor

50% 75% 100%
0.79  0.87  0.90
Frame 364/5TS
Output 50 HP (37 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2965 rpm
Slip 1.17 %
Rated voltage 415 V
Rated current 61.7 A
L. R. Amperes 457 A
LRC 7.4x(Code H)
No load current 17.4 A
Rated torque 88.6 ft.lb
Locked rotor torque 229 %
Breakdown torque 300 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 10.6 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 74.0 dB(A)
Approx. weight³ 853 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
91.6  92.9  93.7

Power factor

50% 75% 100%
0.76  0.85  0.89
Frame 364/5TS
Output 60 HP (45 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2945 rpm
Slip 1.83 %
Rated voltage 380 V
Rated current 81.3 A
L. R. Amperes 423 A
LRC 5.2x(Code E)
No load current 15.0 A
Rated torque 107 ft.lb
Locked rotor torque 160 %
Breakdown torque 210 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 10.6 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 74.0 dB(A)
Approx. weight³ 853 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
92.4  93.0  92.4

Power factor

50% 75% 100%
0.85  0.90  0.91
Frame 364/5TS
Output 60 HP (45 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2950 rpm
Slip 1.67 %
Rated voltage 400 V
Rated current 77.6 A
L. R. Amperes 450 A
LRC 5.8x(Code F)
No load current 16.2 A
Rated torque 107 ft.lb
Locked rotor torque 180 %
Breakdown torque 229 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 10.6 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 74.0 dB(A)
Approx. weight³ 853 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
92.4  93.0  93.0

Power factor

50% 75% 100%
0.83  0.89  0.90
Frame 364/5TS
Output 60 HP (45 kW)
Number of Poles 2
Frequency 50 Hz
Rated speed 2955 rpm
Slip 1.50 %
Rated voltage 415 V
Rated current 74.8 A
L. R. Amperes 464 A
LRC 6.2x(Code F)
No load current 17.4 A
Rated torque 107 ft.lb
Locked rotor torque 190 %
Breakdown torque 250 %
Locked rotor time 21s (cold) 12s (hot)
Moment of inertia (J) 10.6 sq.ft.lb
Design B
Insulation Class F
Service factor 1.00
Temperature rise 105 K
Duty Cycle Cont.(S1)
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting F-1
Rotation¹ Both (CW and CCW)
Noise level² 74.0 dB(A)
Approx. weight³ 853 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50% 75% 100%
92.4  93.0  93.0

Power factor

50% 75% 100%
0.81  0.88  0.90

Features

Frame Material Cast Iron
Impregnation Method Constant Resin Flow
Regreasing System At Drive end and Non-drive end
Main terminal box hole NPT 3"
Terminal Block Without
Shaft Locking Device Without
Drain Rubber, automatic
Shaft Material SAE 1040/45 Carbon Steel
Painting RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs Double
Fan Cover material Cast Iron
Tropicalized Painting Without
Fan material Plastic
Bearing cap Yes- Bearing Cap
Drip Cover Without
Overload protector (phenolic) Without overload protector
Connection Cables Quantity 12
