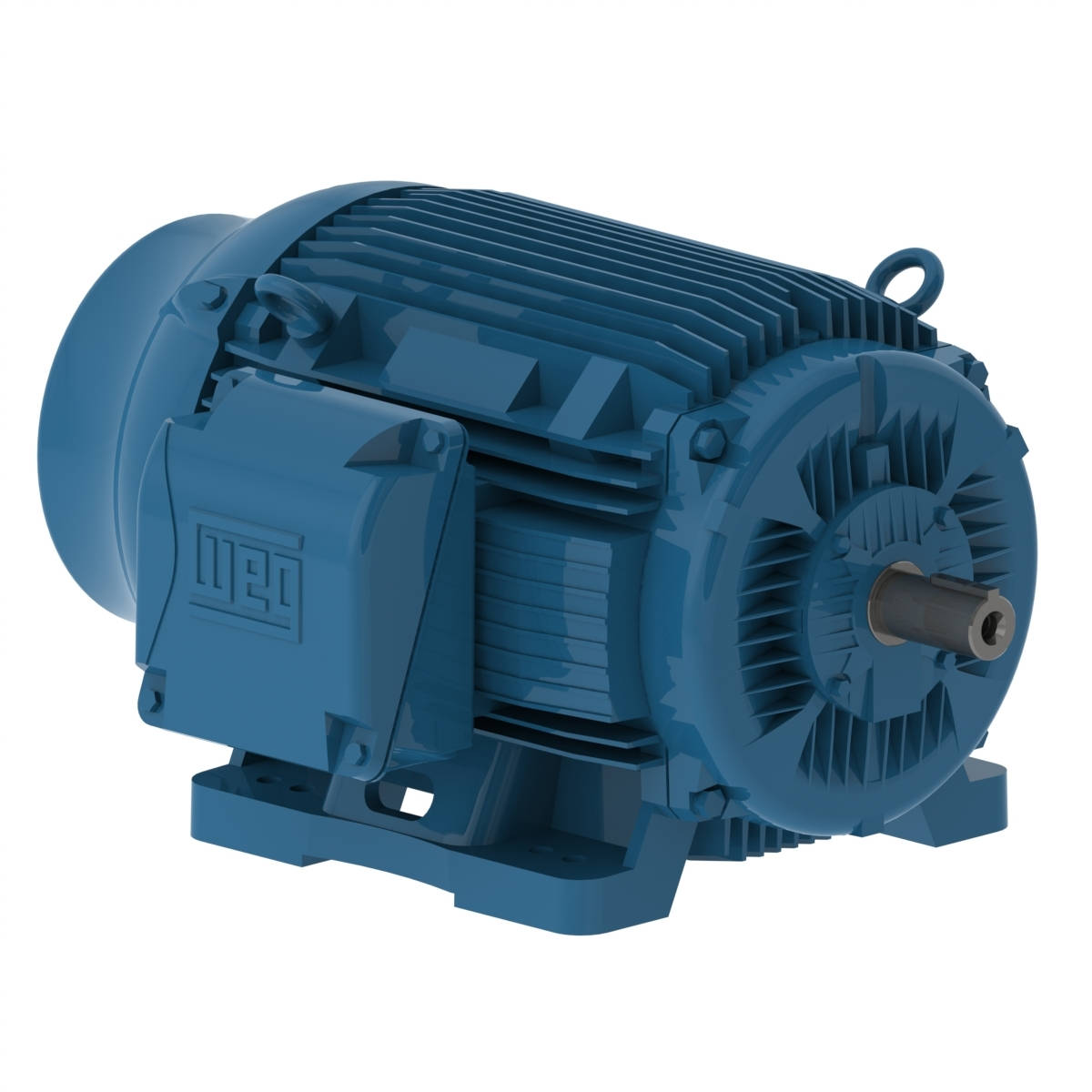

06036ET3H364TS-W22 WEG 60HP Severe Duty Electric Motor, 3600RPM
Enlarge Photo

Product ID: 06036ET3H364TS-W22

06036ET3H364TS-W22 WEG 60HP Severe Duty Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 06036ET3H364TS-W22

Selected accessories will also be added to cart
$6,721.28 / Each
Quantity:
IC411 - TEFC, IP55, 364TS/365TS Frame, 575VAC 60Hz 3 Phase, 11165695, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 1-7/8" Keyed Shaft

Electric Motors

Frame364/5TS
Output60 HP (45 kW)
Number of Poles2
Frequency60 Hz
Rated speed3560 rpm
Slip1.11 %
Rated voltage575 V
Rated current53.6 A
L. R. Amperes354 A
LRC6.6x(Code G)
No load current12.0 A
Rated torque88.5 ft.lb
Locked rotor torque200 %
Breakdown torque260 %
Locked rotor time25s (cold) 14s (hot)
Moment of inertia (J)10.6 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?79.0 dB(A)
Approx. weight?851 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
91.7  93.0  93.6

Power factor

50%75%100%
0.81  0.88  0.90

Features

Frame MaterialCast Iron
Impregnation MethodConstant Resin Flow
Regreasing SystemAt Drive end and Non-drive end
Main terminal box holeNPT 3"
Terminal BlockWithout
Shaft Locking DeviceWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 203A (ISO 12944 - C2)
Grounding LugsDouble
Fan Cover materialCast Iron
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capYes- Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector

Bearing details

 Drive EndNon Drive End
Bearing type6314 C3 6314 C3
SealingWSeal WSeal
Lubrication interval4000 h 4000 h
Lubricant amount27 g 27 g
Grease TypeMobil Polyrex EM

Foundation loads

Max. tractionMax. compression
362 lb 1213 lb

Type
Electric Motor
Input Phase
3-Phase
Speed
3600RPM
Application
Severe Duty
Enclosure
TEFC
Horsepower
60HP
Input Voltage
575VAC
Frame
364TS/365TS
