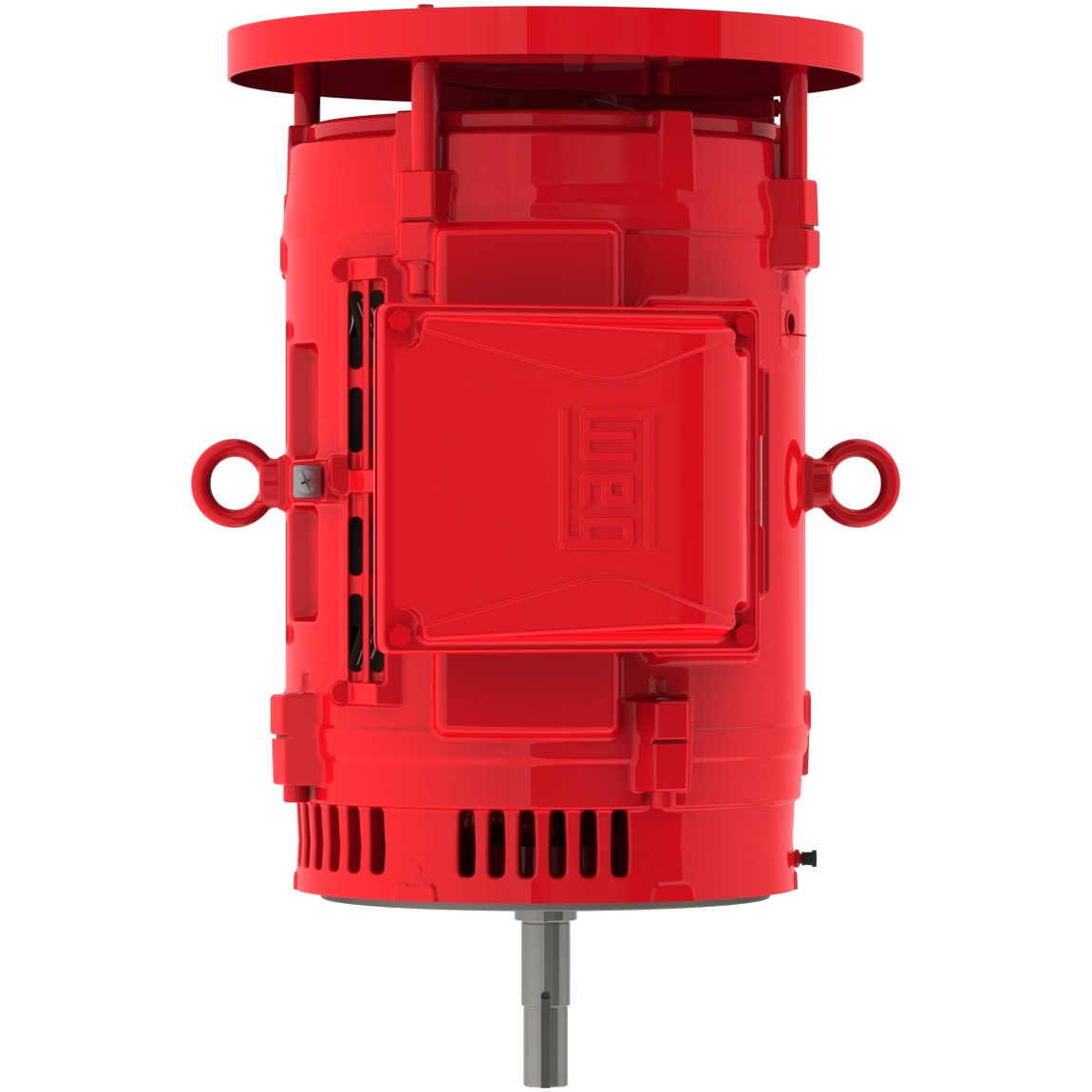

06036OP3VFP326JMV-W4 WEG 60HP JM Close-Coupled Pump Electric Motor, 3600RPM
Enlarge Photo

Product ID: 06036OP3VFP326JMV-W4

06036OP3VFP326JMV-W4 WEG 60HP JM Close-Coupled Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 06036OP3VFP326JMV-W4

Selected accessories will also be added to cart
$4,602.19 / Each
Quantity:
IC01 - ODP, IP23, 324JM/326JM Frame, 200/400VAC 60Hz 3 Phase, 14832532, High Efficiency, Round Body, Cast Iron Frame

Electric Motors

Frame324/6JM
Output60 HP (45 kW)
Number of Poles2
Frequency60 Hz
Rated speed3555 rpm
Slip1.25 %
Rated voltage200/400 V
Rated current162/81.2 A
L. R. Amperes991/495 A
LRC6.1x(Code G)
No load current50.6/25.3 A
Rated torque88.6 ft.lb
Locked rotor torque180 %
Breakdown torque200 %
Locked rotor time28s (cold) 16s (hot)
Moment of inertia (J)3.41 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingW-6
Rotation?Both (CW and CCW)
Approx. weight?459 lb

(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
92.4  93.0  93.0

Power factor

50%75%100%
0.76  0.83  0.86

Features

Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Regreasing SystemAt Drive end and Non-drive end
Main terminal box holeNPT 2"
Terminal BlockWithout
Shaft Locking DeviceWithout
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 3002 203A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Balancing Method1/2 Key
Drip CoverWith
Overload protector (phenolic)Without overload protector
Connection Cables Quantity12
Type
Electric Motor
Input Phase
3-Phase
Enclosure
ODP
Horsepower
60HP
Speed
3600RPM
Frame
324JM
Input Voltage
200VAC
Input Voltage
400VAC
Frame
326JM
