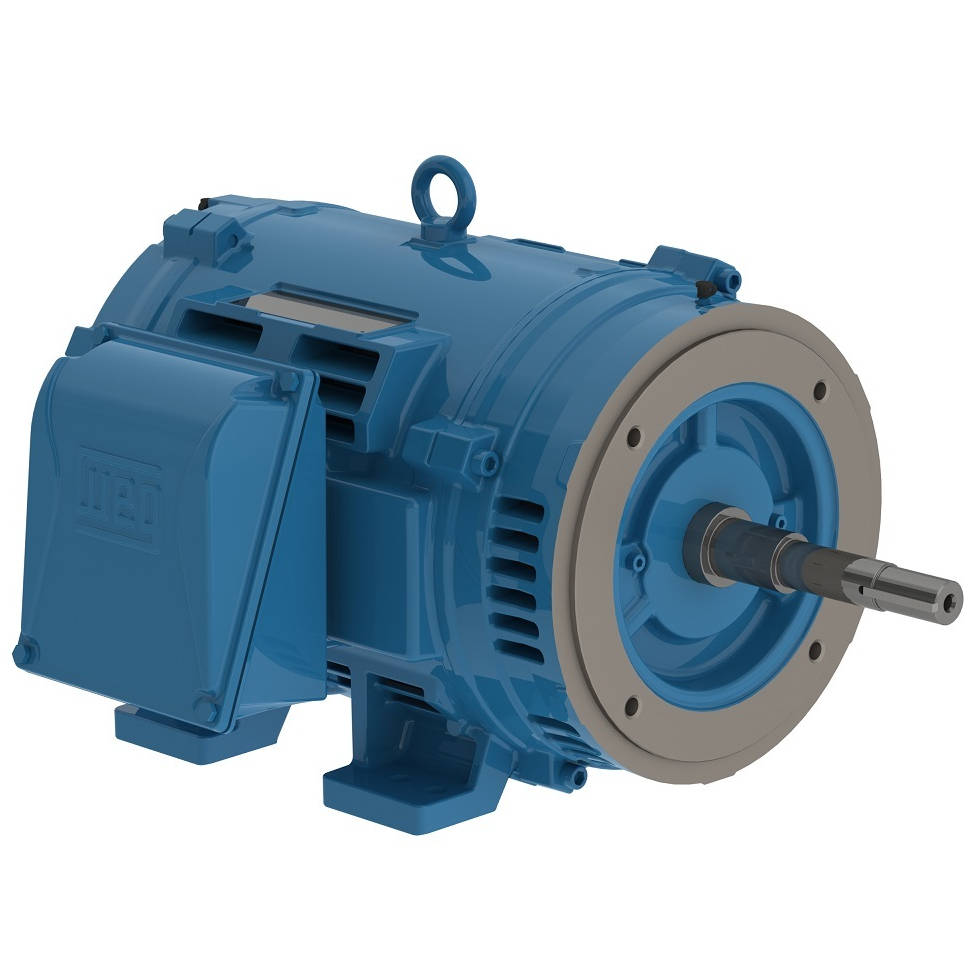

06036OT3E326JP-W40 WEG 60HP JP Close-Coupled Pump Electric Motor, 3600RPM
Enlarge Photo

Product ID: 06036OT3E326JP-W40

06036OT3E326JP-W40 WEG 60HP JP Close-Coupled Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 06036OT3E326JP-W40

Selected accessories will also be added to cart
$4,834.48 / Each
Quantity:
IC01 - ODP, IP23, 324JP/326JP Frame, 230/460VAC 60Hz 3 Phase, 14490328, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame

Electric Motors

Frame324/6JP
Output60 HP (45 kW)
Number of Poles2
Frequency60 Hz
Rated speed3560 rpm
Slip1.11 %
Rated voltage230/460 V
Rated current142/71.0 A
L. R. Amperes895/447 A
LRC6.3x(Code G)
No load current40.0/20.0 A
Rated torque88.5 ft.lb
Locked rotor torque220 %
Breakdown torque229 %
Locked rotor time21s (cold) 12s (hot)
Moment of inertia (J)3.82 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Noise level?75.0 dB(A)
Approx. weight?489 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
92.4  93.0  93.6

Power factor

50%75%100%
0.73  0.82  0.85
Frame324/6JP
Output50 HP (37 kW)
Number of Poles2
Frequency50 Hz
Rated speed2960 rpm
Slip1.33 %
Rated voltage380 V
Rated current69.8 A
L. R. Amperes482 A
LRC6.9x(Code H)
No load current19.0 A
Rated torque88.7 ft.lb
Locked rotor torque220 %
Breakdown torque229 %
Locked rotor time16s (cold) 9s (hot)
Moment of inertia (J)3.82 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Noise level?75.0 dB(A)
Approx. weight?489 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
90.5  92.0  93.7

Power factor

50%75%100%
0.73  0.82  0.86
Frame324/6JP
Output50 HP (37 kW)
Number of Poles2
Frequency50 Hz
Rated speed2965 rpm
Slip1.17 %
Rated voltage400 V
Rated current68.7 A
L. R. Amperes495 A
LRC7.2x(Code H)
No load current23.0 A
Rated torque88.6 ft.lb
Locked rotor torque240 %
Breakdown torque250 %
Locked rotor time16s (cold) 9s (hot)
Moment of inertia (J)3.82 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Noise level?75.0 dB(A)
Approx. weight?489 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
90.6  92.1  93.7

Power factor

50%75%100%
0.67  0.77  0.83
Frame324/6JP
Output50 HP (37 kW)
Number of Poles2
Frequency50 Hz
Rated speed2965 rpm
Slip1.17 %
Rated voltage415 V
Rated current69.5 A
L. R. Amperes514 A
LRC7.4x(Code J)
No load current26.0 A
Rated torque88.6 ft.lb
Locked rotor torque260 %
Breakdown torque270 %
Locked rotor time14s (cold) 8s (hot)
Moment of inertia (J)3.82 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Noise level?75.0 dB(A)
Approx. weight?489 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
90.7  92.2  93.7

Power factor

50%75%100%
0.60  0.72  0.79

Features

Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Regreasing SystemAt Drive end and Non-drive end
Main terminal box holeNPT 2"
Terminal BlockWithout
Shaft Locking DeviceWithout
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 203A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Type
Electric Motor
Input Phase
3-Phase
Speed
3600RPM
Enclosure
ODP
Horsepower
60HP
Input Voltage
230VAC
Input Voltage
460VAC
Frame
324JP
Frame
326JP
