/Products/Electric Motors/3 Phase/WEG 3-Phase Electric Motors/Cast Iron, ODP, W40/Foot Mount, AEGIS SGR/06036OT3E326TS-W40G WEG 60HP, General Purpose Electric Motor, 3600RPM

Product ID: 06036OT3E326TS-W40G

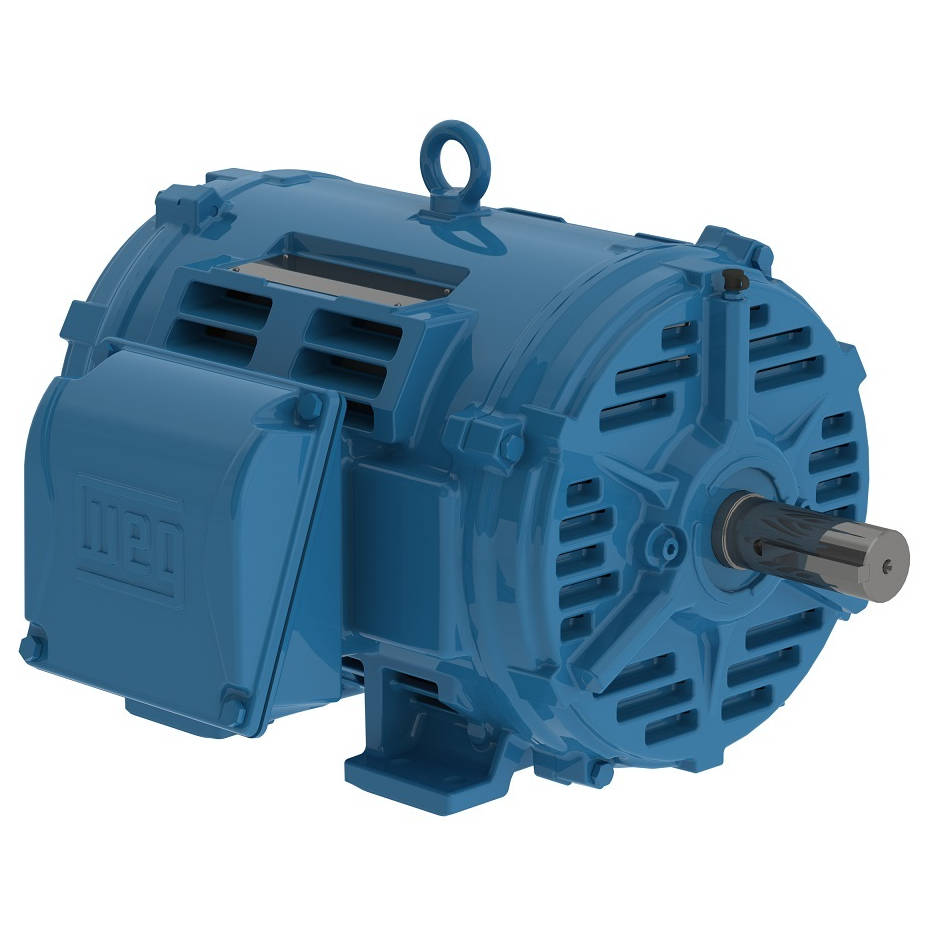

06036OT3E326TS-W40G WEG 60HP, General Purpose Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 06036OT3E326TS-W40G

Selected accessories will also be added to cart

$4,323.62 / Each

Quantity:

IC01 - ODP, IP23, 324TS/326TS Frame, 230/460/380VAC 50/60Hz 3 Phase, 14504156, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, AEGIS Shaft Grounding Ring, 1-7/8" Keyed Shaft

Electric Motors

Frame	324/6TS
Output	60 HP (45 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3560 rpm
Slip	1.11 %
Rated voltage	230/460 V
Rated current	142/71.0 A
L. R. Amperes	895/447 A
LRC	6.3x(Code G)
No load current	50.0/25.0 A
Rated torque	88.5 ft.lb
Locked rotor torque	220 %
Breakdown torque	229 %
Locked rotor time	27s (cold) 15s (hot)

Moment of inertia (J)	3.82 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	75.0 dB(A)
Approx. weight?	461 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
92.4	93.0	93.6

Power factor

50%	75%	100%
0.73	0.82	0.85

Frame	324/6TS
Output	50 HP (37 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2960 rpm
Slip	1.33 %
Rated voltage	380 V
Rated current	69.8 A
L. R. Amperes	482 A
LRC	6.9x(Code H)
No load current	23.0 A
Rated torque	88.7 ft.lb
Locked rotor torque	220 %
Breakdown torque	229 %
Locked rotor time	28s (cold) 16s (hot)

Moment of inertia (J)	3.82 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	75.0 dB(A)
Approx. weight?	461 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
90.5	92.0	93.7

Power factor

50%	75%	100%
0.73	0.82	0.86

Frame	324/6TS
Output	50 HP (37 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2960 rpm
Slip	1.33 %
Rated voltage	400 V
Rated current	68.7 A
L. R. Amperes	460 A
LRC	6.7x(Code H)
No load current	27.0 A
Rated torque	88.7 ft.lb
Locked rotor torque	240 %
Breakdown torque	250 %
Locked rotor time	25s (cold) 14s (hot)

Moment of inertia (J)	3.82 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	75.0 dB(A)
Approx. weight?	461 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
90.6	92.1	93.7

Power factor

50%	75%	100%
0.67	0.77	0.83

Frame	324/6TS
Output	50 HP (37 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2965 rpm
Slip	1.17 %
Rated voltage	415 V
Rated current	69.5 A
L. R. Amperes	473 A
LRC	6.8x(Code H)
No load current	30.0 A
Rated torque	88.6 ft.lb
Locked rotor torque	260 %
Breakdown torque	270 %
Locked rotor time	23s (cold) 13s (hot)

Moment of inertia (J)	3.82 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	75.0 dB(A)
Approx. weight?	461 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
90.7	92.2	93.7

Power factor

50%	75%	100%
0.60	0.72	0.79

Features

Frame Material	Cast Iron
Impregnation Method	Dip and Bake Polyester
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	NPT 2"
Terminal Block	Without
Shaft Locking Device	Without
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs	Single
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	12
