Motor/Control Division

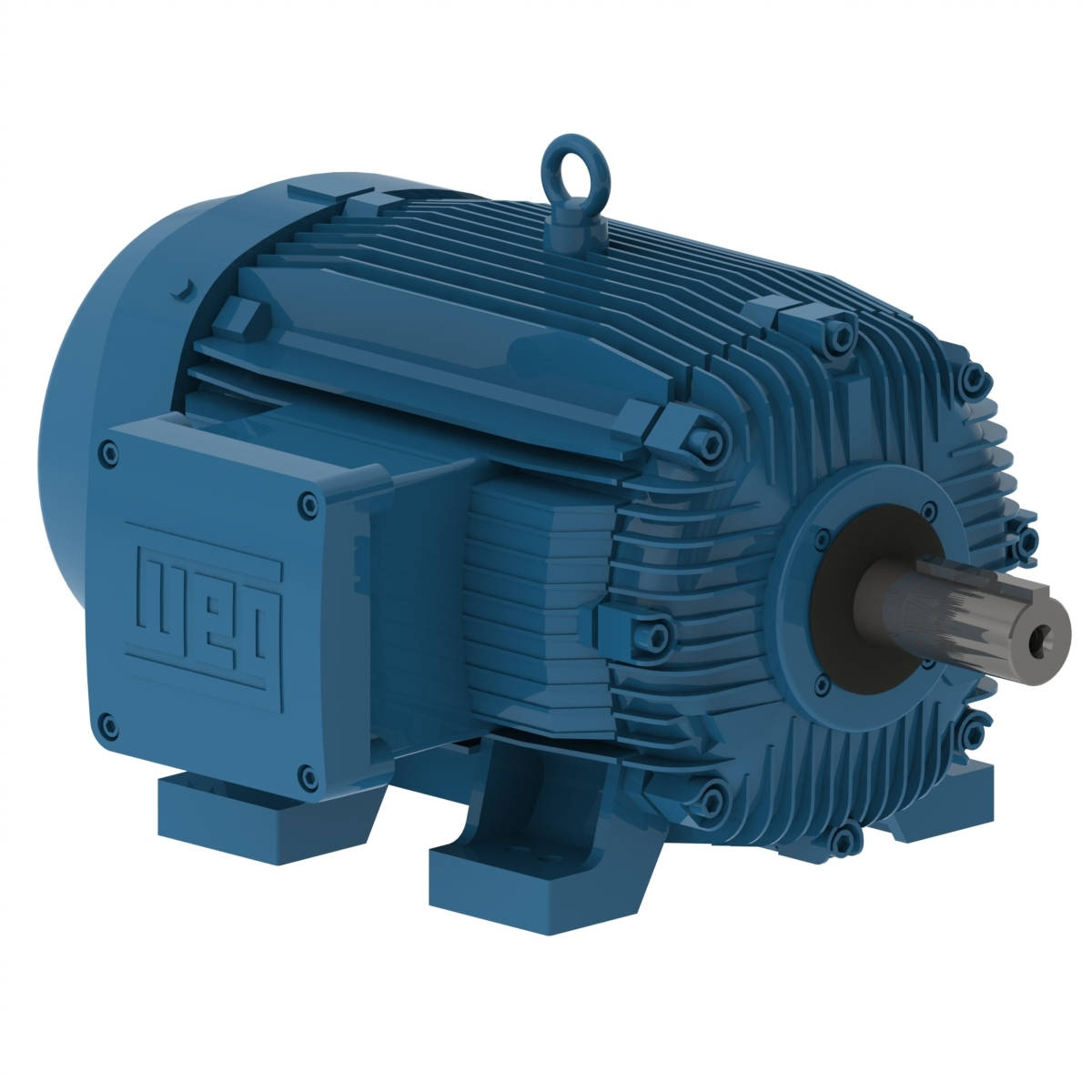

Frame	364/5TS
Output	60 HP (45 kW)
Number of Poles	2
Frequency	60 Hz
Rated speed	3550 rpm
Slip	1.39 %
Rated voltage	230/460 V
Rated current	137/68.6 A
L. R. Amperes	878/439 A
LRC	6.4x(Code G)
No load current	30.0/15.0 A
Rated torque	88.8 ft.lb
Locked rotor torque	200 %
Breakdown torque	250 %
Locked rotor time	108s (cold) 60s (hot)

Moment of inertia (J)	9.96 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.15
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	85.0 dB(A)
Approx. weight?	1026 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
92.4	93.0	93.6

Power factor

50%	75%	100%
0.79	0.86	0.88

Frame	364/5TS
Output	50 HP (37 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2950 rpm
Slip	1.67 %
Rated voltage	380 V
Rated current	68.7 A
L. R. Amperes	419 A
LRC	6.1x(Code F)
No load current	15.0 A
Rated torque	89.0 ft.lb
Locked rotor torque	190 %
Breakdown torque	240 %
Locked rotor time	45s (cold) 25s (hot)

Moment of inertia (J)	9.96 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	82.0 dB(A)
Approx. weight?	1026 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
92.0	92.8	93.0

Power factor

50%	75%	100%
0.79	0.86	0.88

Frame	364/5TS
Output	50 HP (37 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2960 rpm
Slip	1.33 %
Rated voltage	400 V
Rated current	65.3 A
L. R. Amperes	438 A
LRC	6.7x(Code G)
No load current	16.0 A
Rated torque	88.7 ft.lb
Locked rotor torque	210 %
Breakdown torque	260 %
Locked rotor time	45s (cold) 25s (hot)

Moment of inertia (J)	9.96 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	82.0 dB(A)
Approx. weight?	1026 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
92.0	92.8	93.0

Power factor

50%	75%	100%
0.77	0.85	0.88

Frame	364/5TS
Output	50 HP (37 kW)
Number of Poles	2
Frequency	50 Hz
Rated speed	2960 rpm
Slip	1.33 %
Rated voltage	415 V
Rated current	63.6 A
L. R. Amperes	458 A
LRC	7.2x(Code H)
No load current	17.0 A
Rated torque	88.7 ft.lb
Locked rotor torque	229 %
Breakdown torque	290 %
Locked rotor time	45s (cold) 25s (hot)

Moment of inertia (J)	9.96 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20?C to +40?C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation?	Both (CW and CCW)
Noise level?	82.0 dB(A)
Approx. weight?	1026 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
92.0	92.8	93.0

Power factor

50%	75%	100%
0.76	0.85	0.87

Features

Frame Material	Cast Iron
Impregnation Method	Constant Resin Flow
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	NPT 3"
Terminal Block	Without
Shaft Locking Device	Without
Drain	Sinterized, Exd
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 202P (ISO 12944 - C4)
Grounding Lugs	Double
Fan Cover material	Cast Iron
Tropicalized Painting	Without
Fan material	Aluminum
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Winding thermal protection	Thermostat - 2 wires 1 per phase 155?C
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector
Connection Cables Quantity	12
