/Products/Electric Motors/3 Phase/WEG 3-Phase Electric Motors/Cast Iron, ODP, W40/JM Close-Coupled Pump/06036OP3EFP326JMV-W4 WEG 60HP JM Close-Coupled Pump Electric Motor, 3600RPM

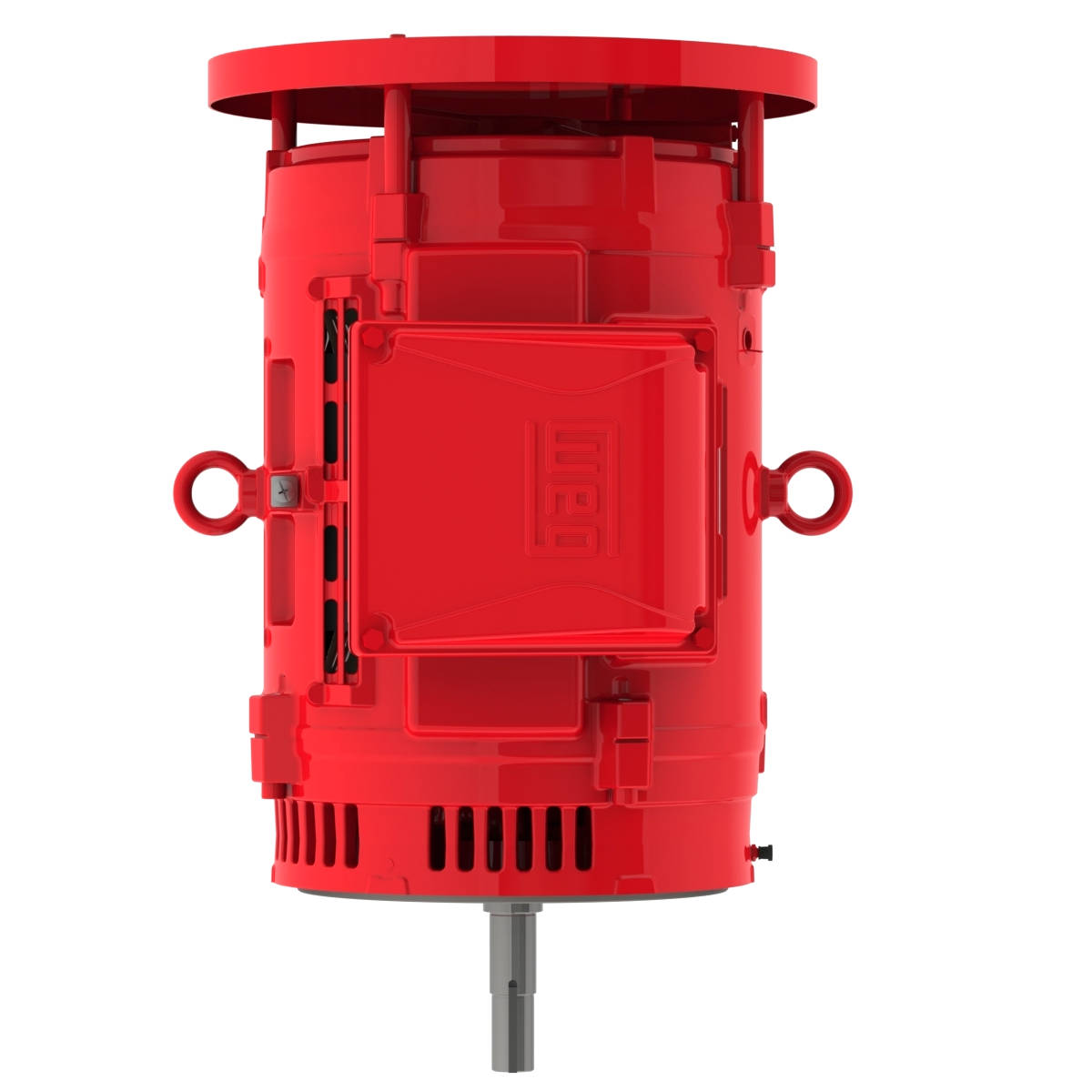

06036OP3EFP326JMV-W4 WEG 60HP JM Close-Coupled Pump Electric Motor, 3600RPM
Enlarge Photo

Product ID: 06036OP3EFP326JMV-W4

06036OP3EFP326JMV-W4 WEG 60HP JM Close-Coupled Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 06036OP3EFP326JMV-W40

Selected accessories will also be added to cart
$4,602.19 / Each
Quantity:
IC01 - ODP, IP23, 324JM/326JM Frame, 230/460/380VAC 50/60Hz 3 Phase, 14832531, JM Close-Coupled Pump, High Efficiency, Footless, Cast Iron Frame

Electric Motors

Frame324/6JM
Output60 HP (45 kW)
Number of Poles2
Frequency60 Hz
Rated speed3555 rpm
Slip1.25 %
Rated voltage230/460 V
Rated current141/70.6 A
L. R. Amperes861/431 A
LRC6.1x(Code G)
No load current44.0/22.0 A
Rated torque88.6 ft.lb
Locked rotor torque180 %
Breakdown torque200 %
Locked rotor time28s (cold) 16s (hot)
Moment of inertia (J)3.41 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.15
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingW-6
Rotation?Both (CW and CCW)
Approx. weight?457 lb

(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
92.4  93.0  93.0

Power factor

50%75%100%
0.76  0.83  0.86
Frame324/6JM
Output60 HP (45 kW)
Number of Poles2
Frequency50 Hz
Rated speed2935 rpm
Slip2.17 %
Rated voltage380 V
Rated current85.4 A
L. R. Amperes418 A
LRC4.9x(Code E)
No load current21.0 A
Rated torque107 ft.lb
Locked rotor torque150 %
Breakdown torque200 %
Locked rotor time19s (cold) 11s (hot)
Moment of inertia (J)3.41 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingW-6
Rotation?Both (CW and CCW)
Approx. weight?457 lb
(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
90.2  91.0  91.0

Power factor

50%75%100%
0.81  0.86  0.88
Frame324/6JM
Output60 HP (45 kW)
Number of Poles2
Frequency50 Hz
Rated speed2945 rpm
Slip1.83 %
Rated voltage400 V
Rated current81.4 A
L. R. Amperes448 A
LRC5.5x(Code F)
No load current24.0 A
Rated torque107 ft.lb
Locked rotor torque170 %
Breakdown torque200 %
Locked rotor time19s (cold) 11s (hot)
Moment of inertia (J)3.41 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingW-6
Rotation?Both (CW and CCW)
Approx. weight?457 lb
(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
91.0  91.7  91.7

Power factor

50%75%100%
0.77  0.84  0.87
Frame324/6JM
Output60 HP (45 kW)
Number of Poles2
Frequency50 Hz
Rated speed2950 rpm
Slip1.67 %
Rated voltage415 V
Rated current79.1 A
L. R. Amperes467 A
LRC5.9x(Code F)
No load current27.0 A
Rated torque107 ft.lb
Locked rotor torque180 %
Breakdown torque200 %
Locked rotor time18s (cold) 10s (hot)
Moment of inertia (J)3.41 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingW-6
Rotation?Both (CW and CCW)
Approx. weight?457 lb
(1) Looking the motor from the shaft end.; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
91.7  91.7  92.0

Power factor

50%75%100%
0.74  0.82  0.86

Features

Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Regreasing SystemAt Drive end and Non-drive end
Main terminal box holeNPT 2"
Terminal BlockWithout
Shaft Locking DeviceWithout
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 3002 203A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Balancing Method1/2 Key
Drip CoverWith
Overload protector (phenolic)Without overload protector
Connection Cables Quantity12
Type
Electric Motor
Input Phase
3-Phase
Speed
3600RPM
Enclosure
ODP
Horsepower
60HP
Frame
324JM
Frame
326JM
