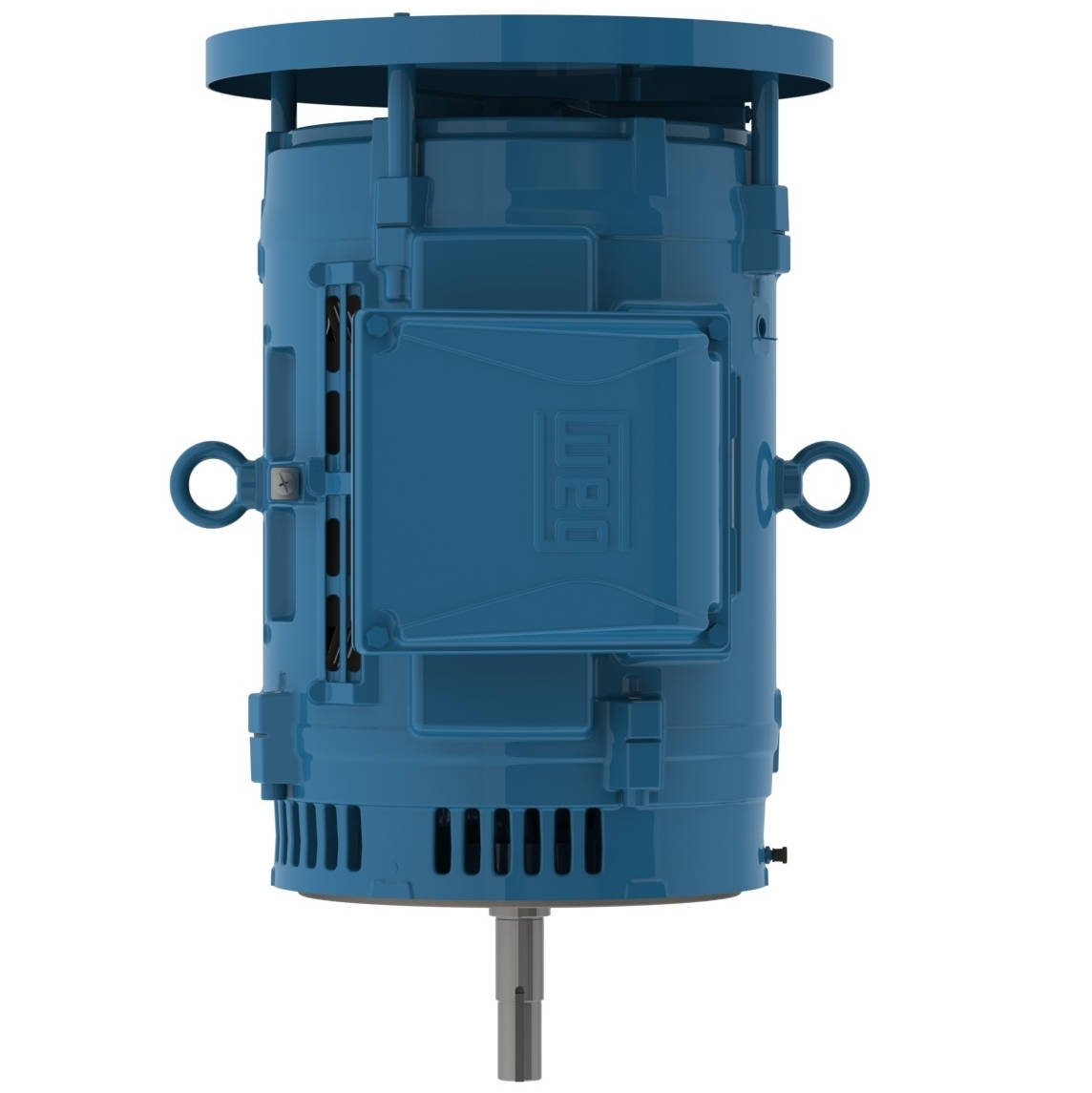

06036OT3H326JMV-W40 WEG 60HP JM Close-Coupled Pump Electric Motor, 3600RPM
Enlarge Photo

Product ID: 06036OT3H326JMV-W40

06036OT3H326JMV-W40 WEG 60HP JM Close-Coupled Pump Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 06036OT3H326JMV-W40

Selected accessories will also be added to cart
$5,127.29 / Each
Quantity:
IC01 - ODP, IP23, 324JM/326JM Frame, 575VAC 60Hz 3 Phase, 14837653, NEMA Premium Efficiency, Footless, Vertical Mount, Cast Iron Frame

Electric Motors

Frame324/6JM
Output60 HP (45 kW)
Number of Poles2
Frequency60 Hz
Rated speed3560 rpm
Slip1.11 %
Rated voltage575 V
Rated current56.8 A
L. R. Amperes358 A
LRC6.3x(Code G)
No load current20.0 A
Rated torque88.5 ft.lb
Locked rotor torque220 %
Breakdown torque229 %
Locked rotor time27s (cold) 15s (hot)
Moment of inertia (J)3.82 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingW-6
Rotation?Both (CW and CCW)
Noise level?75.0 dB(A)
Approx. weight?473 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
92.4  93.0  93.6

Power factor

50%75%100%
0.73  0.82  0.85

Features

Frame MaterialCast Iron
Impregnation MethodDip and Bake Polyester
Regreasing SystemAt Drive end and Non-drive end
Main terminal box holeNPT 2"
Terminal BlockWithout
Shaft Locking DeviceWithout
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 203A (ISO 12944 - C2)
Grounding LugsSingle
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Balancing Method1/2 Key
Drip CoverWith
Overload protector (phenolic)Without overload protector
Connection Cables Quantity6
Type
Electric Motor
Input Phase
3-Phase
Speed
3600RPM
Enclosure
ODP
Horsepower
60HP
Input Voltage
575VAC
Frame
324JM
Frame
326JM
