07512ET3H405T-W22 WEG 75HP Severe Duty Electric Motor, 1200RPM

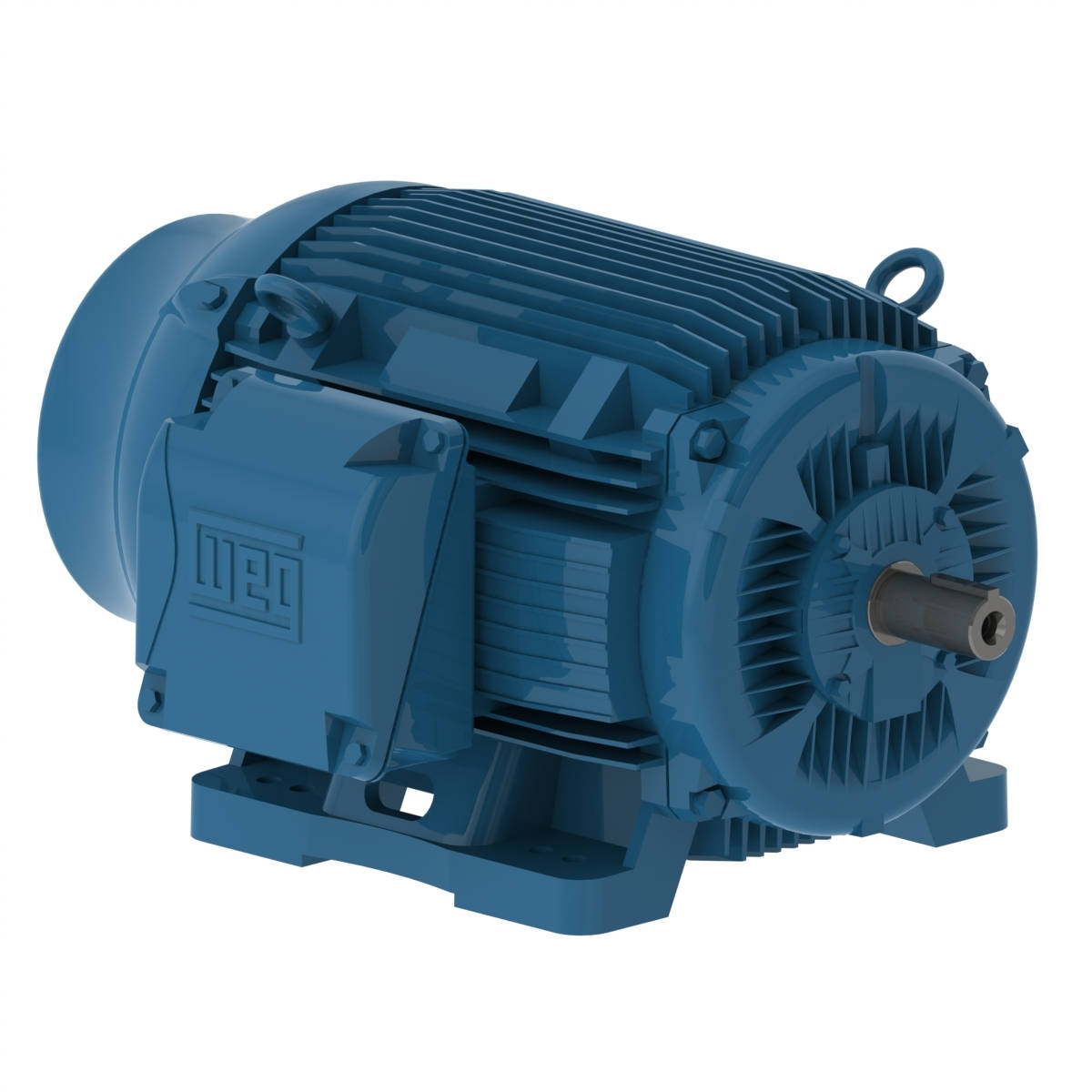

Enlarge Photo

Product ID: 07512ET3H405T-W22

07512ET3H405T-W22 WEG 75HP Severe Duty Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: 07512ET3H405T-W22

Selected accessories will also be added to cart
$10,731.62 / Each
Quantity:
IC411 - TEFC, IP55, 404T/405T Frame, 575VAC, 60Hz, 3 Phase

Electric Motors

Frame404/5T
Output75 HP (55 kW)
Number of Poles6
Frequency60 Hz
Rated speed1184 rpm
Slip1.33 %
Rated voltage575 V
Rated current67.9 A
L. R. Amperes435 A
LRC6.4x(Code G)
No load current24.0 A
Rated torque333 ft.lb
Locked rotor torque229 %
Breakdown torque229 %
Locked rotor time30s (cold) 17s (hot)
Moment of inertia (J)40.2 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?68.0 dB(A)
Approx. weight?1188 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
94.1  94.5  94.5

Power factor

50%75%100%
0.74  0.83  0.86

Features

Frame MaterialCast Iron
Impregnation MethodConstant Resin Flow
Regreasing SystemAt Drive end and Non-drive end
Main terminal box holeNPT 3"
Terminal BlockWithout
Shaft Locking DeviceWithout
DrainRubber, automatic
Shaft MaterialSAE 4140 Carbon Steel
PaintingRAL 5009 203A (ISO 12944 - C2)
Grounding LugsDouble
Fan Cover materialCast Iron
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capYes- Bearing Cap
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity6
Type
Electric Motor
Input Phase
3-Phase
Speed
1200RPM
Application
Severe Duty
Horsepower
75HP
Enclosure
TEFC
Enclosure
TEFC
Input Voltage
575VAC
Frame
404T/405T
