07512OT3E405JP-W40 WEG 75HP JP Close-Coupled Pump Electric Motor, 1200RPM

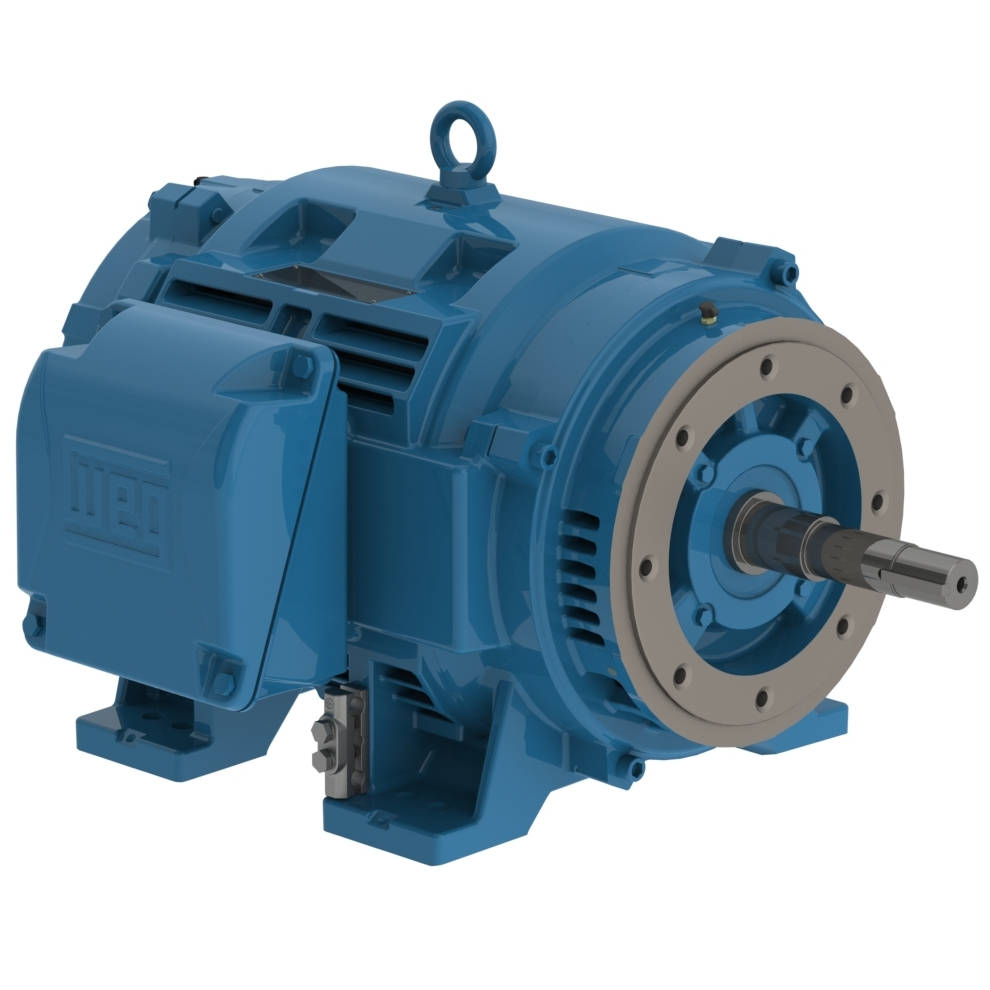

Enlarge Photo

Product ID: 07512OT3E405JP-W40

07512OT3E405JP-W40 WEG 75HP JP Close-Coupled Pump Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: 07512OT3E405JP-W40

Selected accessories will also be added to cart
$8,688.18 / Each
Quantity:
IC01 - ODP, IP23, 404JP/405JP Frame, 230/460/380VAC 50/60Hz 3 Phase, 14270424, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame

Electric Motors

Frame404/5JP
Output75 HP (55 kW)
Number of Poles6
Frequency60 Hz
Rated speed1185 rpm
Slip1.25 %
Rated voltage230/460 V
Rated current172/85.9 A
L. R. Amperes1151/576 A
LRC6.7x(Code G)
No load current60.0/30.0 A
Rated torque332 ft.lb
Locked rotor torque240 %
Breakdown torque270 %
Locked rotor time19s (cold) 11s (hot)
Moment of inertia (J)31.6 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Noise level?68.0 dB(A)
Approx. weight?1008 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
94.1  94.5  94.5

Power factor

50%75%100%
0.72  0.81  0.85
Frame404/5JP
Output60 HP (45 kW)
Number of Poles6
Frequency50 Hz
Rated speed985 rpm
Slip1.50 %
Rated voltage380 V
Rated current84.8 A
L. R. Amperes585 A
LRC6.9x(Code H)
No load current29.6 A
Rated torque320 ft.lb
Locked rotor torque220 %
Breakdown torque250 %
Locked rotor time18s (cold) 10s (hot)
Moment of inertia (J)31.6 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Noise level?68.0 dB(A)
Approx. weight?1008 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
93.3  93.7  93.7

Power factor

50%75%100%
0.75  0.83  0.86
Frame404/5JP
Output60 HP (45 kW)
Number of Poles6
Frequency50 Hz
Rated speed985 rpm
Slip1.50 %
Rated voltage400 V
Rated current81.6 A
L. R. Amperes571 A
LRC7.0x(Code H)
No load current32.1 A
Rated torque320 ft.lb
Locked rotor torque250 %
Breakdown torque280 %
Locked rotor time19s (cold) 11s (hot)
Moment of inertia (J)31.6 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Noise level?68.0 dB(A)
Approx. weight?1008 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
93.3  93.7  93.7

Power factor

50%75%100%
0.71  0.81  0.85
Frame404/5JP
Output60 HP (45 kW)
Number of Poles6
Frequency50 Hz
Rated speed985 rpm
Slip1.50 %
Rated voltage415 V
Rated current79.5 A
L. R. Amperes596 A
LRC7.5x(Code J)
No load current34.2 A
Rated torque320 ft.lb
Locked rotor torque270 %
Breakdown torque300 %
Locked rotor time19s (cold) 11s (hot)
Moment of inertia (J)31.6 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Noise level?68.0 dB(A)
Approx. weight?1008 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
93.3  93.7  93.7

Power factor

50%75%100%
0.68  0.79  0.84

Features

Frame MaterialCast Iron
Impregnation MethodConstant Resin Flow
Regreasing SystemAt Drive end and Non-drive end
Main terminal box holeNPT 3"
Terminal BlockWithout
Shaft Locking DeviceWithout
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 203A (ISO 12944 - C2)
Grounding LugsDouble
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity12
Type
Electric Motor
Input Phase
3-Phase
Speed
1200RPM
Horsepower
75HP
Enclosure
ODP
Frame
404JP/405JP
