/Products/Electric Motors/3 Phase/WEG/Cast Iron, ODP, W40/Foot Mount/07512OT3E405T-W40 WEG 75 HP, General Purpose Electric Motor, 1200 RPM

Product ID: 07512OT3E405T-W40

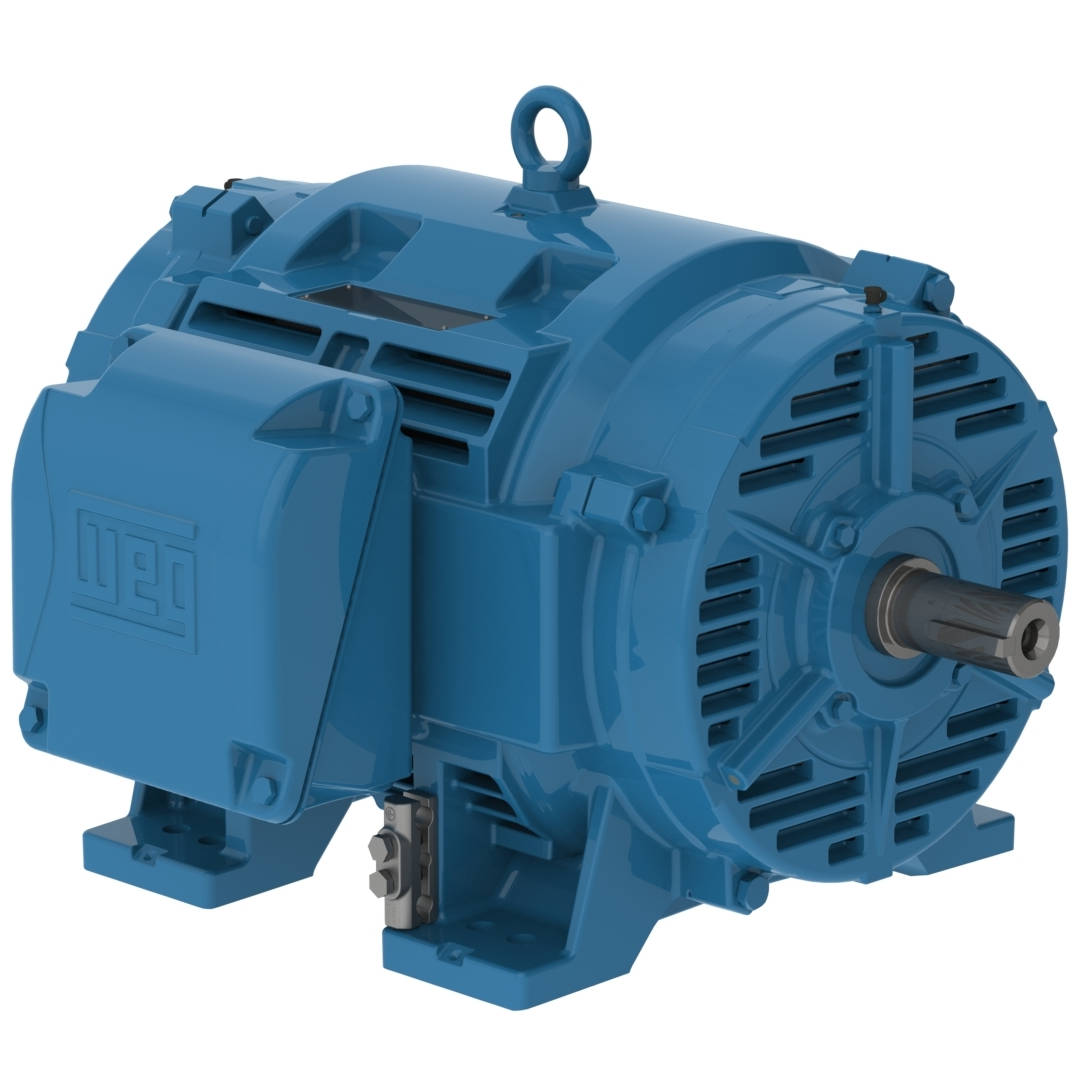

07512OT3E405T-W40 WEG 75 HP, General Purpose Electric Motor, 1200 RPM

MFG: WEG Electric Corporation
MFG Part Number: 07512OT3E405T-W40

Selected accessories will also be added to cart

$6,268.50 / Each

Quantity:

IC01 - ODP, IP23, 404T/405T Frame, 230/460/380VAC 50/60Hz 3 Phase, 14045967, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 2-7/8" Keyed Shaft

Details
Purchase Components

Electric Motors

Frame	404/5T
Output	75 HP (55 kW)
Number of Poles	6
Frequency	60 Hz
Rated speed	1185 rpm
Slip	1.25 %
Rated voltage	230/460 V
Rated current	172/85.9 A
L. R. Amperes	1151/576 A
LRC	6.7x(Code G)
No load current	60.0/30.0 A
Rated torque	332 ft.lb
Locked rotor torque	240 %
Breakdown torque	270 %
Locked rotor time	19s (cold) 11s (hot)

Moment of inertia (J)	31.6 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	68.0 dB(A)
Approx. weight³	967 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
94.1	94.5	94.5

Power factor

50%	75%	100%
0.72	0.81	0.85

Frame	404/5T
Output	60 HP (45 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	985 rpm
Slip	1.50 %
Rated voltage	380 V
Rated current	84.8 A
L. R. Amperes	585 A
LRC	6.9x(Code H)
No load current	29.6 A
Rated torque	320 ft.lb
Locked rotor torque	220 %
Breakdown torque	250 %
Locked rotor time	18s (cold) 10s (hot)

Moment of inertia (J)	31.6 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	68.0 dB(A)
Approx. weight³	967 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
93.3	93.7	93.7

Power factor

50%	75%	100%
0.75	0.83	0.86

Frame	404/5T
Output	60 HP (45 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	985 rpm
Slip	1.50 %
Rated voltage	400 V
Rated current	81.6 A
L. R. Amperes	571 A
LRC	7.0x(Code H)
No load current	32.1 A
Rated torque	320 ft.lb
Locked rotor torque	250 %
Breakdown torque	280 %
Locked rotor time	19s (cold) 11s (hot)

Moment of inertia (J)	31.6 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	68.0 dB(A)
Approx. weight³	967 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
93.3	93.7	93.7

Power factor

50%	75%	100%
0.71	0.81	0.85

Frame	404/5T
Output	60 HP (45 kW)
Number of Poles	6
Frequency	50 Hz
Rated speed	985 rpm
Slip	1.50 %
Rated voltage	415 V
Rated current	79.5 A
L. R. Amperes	596 A
LRC	7.5x(Code J)
No load current	34.2 A
Rated torque	320 ft.lb
Locked rotor torque	270 %
Breakdown torque	300 %
Locked rotor time	19s (cold) 11s (hot)

Moment of inertia (J)	31.6 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP23
Enclosure	IC01 - ODP
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	68.0 dB(A)
Approx. weight³	967 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
93.3	93.7	93.7

Power factor

50%	75%	100%
0.68	0.79	0.84

Features

Frame Material	Cast Iron
Impregnation Method	Constant Resin Flow
Regreasing System	At Drive end and Non-drive end
Main terminal box hole	NPT 3"
Terminal Block	Without
Shaft Locking Device	Without
Shaft Material	SAE 1040/45 Carbon Steel
Painting	RAL 5009 203A (ISO 12944 - C2)
Grounding Lugs	Double
Fan Cover material	Without Fan Cover
Tropicalized Painting	Without
Fan material	Without fan
Bearing cap	Yes- Bearing Cap
Bolt Material	Carbon Steel
Balancing Method	1/2 Key
Drip Cover	Without
Overload protector (phenolic)	Without overload protector

Bearing details

	Drive End	Non Drive End
Bearing type	6316 C3	6212 Z C3
Sealing	Without Bearing Seal	Without Bearing Seal
Lubrication interval	20000 h	20000 h
Lubricant amount	34 g	13 g
Grease Type	Mobil Polyrex EM
