07512ET3E405T-W22 WEG 75HP Severe Duty Electric Motor, 1200RPM

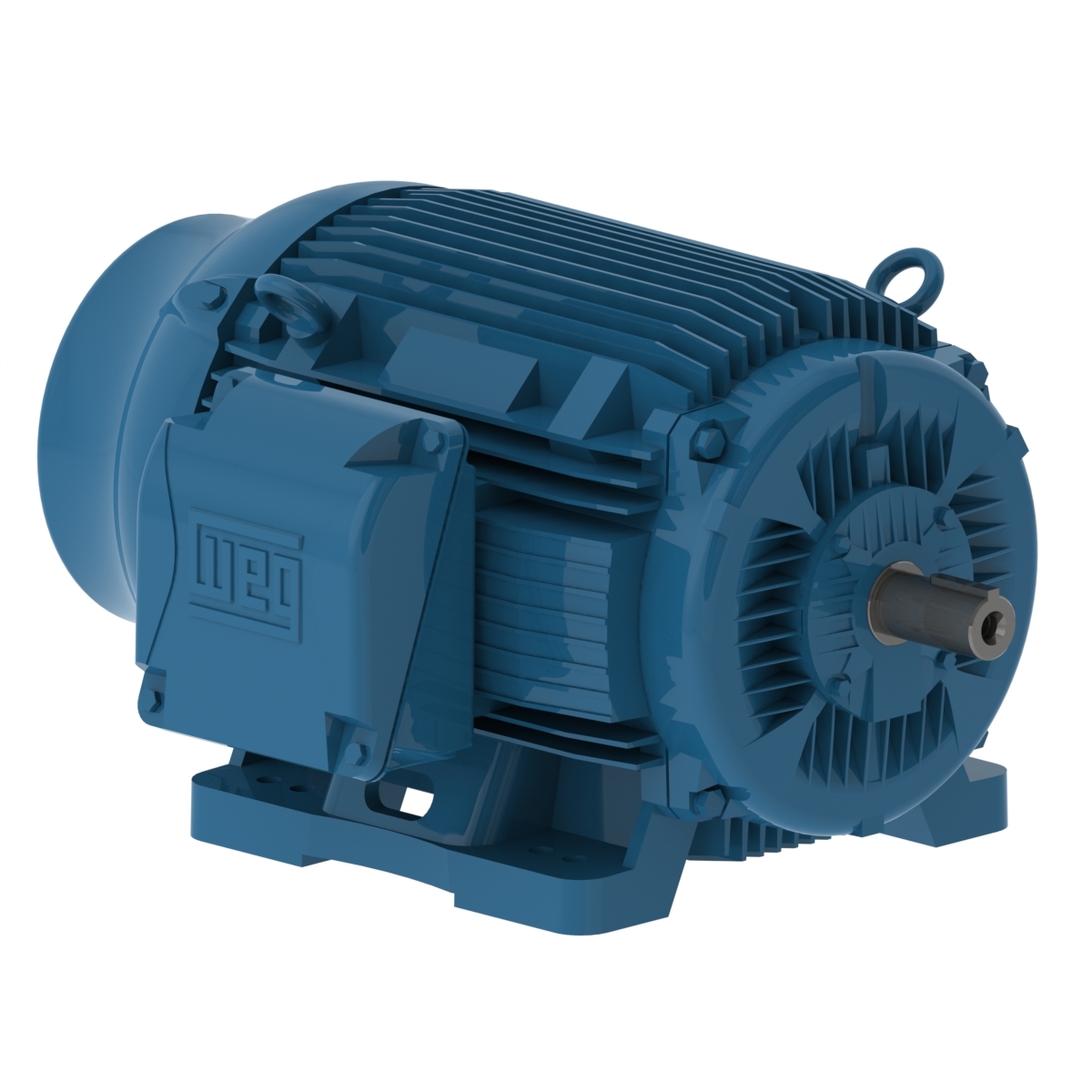

Enlarge Photo

Product ID: 07512ET3E405T-W22

07512ET3E405T-W22 WEG 75HP Severe Duty Electric Motor, 1200RPM

MFG: WEG Electric Corporation
MFG Part Number: 07512ET3E405T-W22

Selected accessories will also be added to cart
$10,731.62 / Each
Quantity:
IC411 - TEFC, IP55, 404T/405T Frame, 230/460VAC 60Hz 3 Phase, 11413125, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 2-7/8" Keyed Shaft

Electric Motors

Frame404/5T
Output75 HP (55 kW)
Number of Poles6
Frequency60 Hz
Rated speed1184 rpm
Slip1.33 %
Rated voltage230/460 V
Rated current170/84.9 A
L. R. Amperes1087/543 A
LRC6.4x(Code G)
No load current60.0/30.0 A
Rated torque333 ft.lb
Locked rotor torque229 %
Breakdown torque229 %
Locked rotor time30s (cold) 17s (hot)
Moment of inertia (J)40.2 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?68.0 dB(A)
Approx. weight?1191 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
94.1  94.5  94.5

Power factor

50%75%100%
0.74  0.83  0.86
Frame404/5T
Output50 HP (37 kW)
Number of Poles6
Frequency50 Hz
Rated speed988 rpm
Slip1.20 %
Rated voltage380 V
Rated current70.9 A
L. R. Amperes546 A
LRC7.7x(Code J)
No load current29.7 A
Rated torque266 ft.lb
Locked rotor torque250 %
Breakdown torque300 %
Locked rotor time25s (cold) 14s (hot)
Moment of inertia (J)40.2 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?64.0 dB(A)
Approx. weight?1191 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
90.6  91.7  93.3

Power factor

50%75%100%
0.66  0.79  0.85
Frame404/5T
Output50 HP (37 kW)
Number of Poles6
Frequency50 Hz
Rated speed990 rpm
Slip1.00 %
Rated voltage400 V
Rated current69.0 A
L. R. Amperes573 A
LRC8.3x(Code J)
No load current31.8 A
Rated torque265 ft.lb
Locked rotor torque280 %
Breakdown torque330 %
Locked rotor time25s (cold) 14s (hot)
Moment of inertia (J)40.2 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?64.0 dB(A)
Approx. weight?1191 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
91.1  92.3  93.3

Power factor

50%75%100%
0.62  0.75  0.83
Frame404/5T
Output50 HP (37 kW)
Number of Poles6
Frequency50 Hz
Rated speed991 rpm
Slip0.90 %
Rated voltage415 V
Rated current68.1 A
L. R. Amperes606 A
LRC8.9x(Code K)
No load current33.5 A
Rated torque265 ft.lb
Locked rotor torque310 %
Breakdown torque360 %
Locked rotor time25s (cold) 14s (hot)
Moment of inertia (J)40.2 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?64.0 dB(A)
Approx. weight?1191 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
91.0  92.3  93.3

Power factor

50%75%100%
0.60  0.74  0.81
Frame404/5T
Output75 HP (55 kW)
Number of Poles6
Frequency50 Hz
Rated speed978 rpm
Slip2.20 %
Rated voltage380 V
Rated current104 A
L. R. Amperes541 A
LRC5.2x(Code E)
No load current29.7 A
Rated torque403 ft.lb
Locked rotor torque170 %
Breakdown torque180 %
Locked rotor time25s (cold) 14s (hot)
Moment of inertia (J)40.2 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?64.0 dB(A)
Approx. weight?1191 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
91.8  92.2  92.4

Power factor

50%75%100%
0.79  0.86  0.87
Frame404/5T
Output75 HP (55 kW)
Number of Poles6
Frequency50 Hz
Rated speed981 rpm
Slip1.90 %
Rated voltage400 V
Rated current99.3 A
L. R. Amperes566 A
LRC5.7x(Code F)
No load current31.8 A
Rated torque401 ft.lb
Locked rotor torque190 %
Breakdown torque200 %
Locked rotor time25s (cold) 14s (hot)
Moment of inertia (J)40.2 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?64.0 dB(A)
Approx. weight?1191 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
92.4  92.8  93.0

Power factor

50%75%100%
0.76  0.84  0.86
Frame404/5T
Output75 HP (55 kW)
Number of Poles6
Frequency50 Hz
Rated speed983 rpm
Slip1.70 %
Rated voltage415 V
Rated current95.7 A
L. R. Amperes593 A
LRC6.2x(Code G)
No load current33.5 A
Rated torque401 ft.lb
Locked rotor torque210 %
Breakdown torque220 %
Locked rotor time25s (cold) 14s (hot)
Moment of inertia (J)40.2 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?64.0 dB(A)
Approx. weight?1191 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
92.4  92.8  93.0

Power factor

50%75%100%
0.74  0.83  0.86

Features

Frame MaterialCast Iron
Impregnation MethodConstant Resin Flow
Regreasing SystemAt Drive end and Non-drive end
Main terminal box holeNPT 3"
Terminal BlockWithout
Shaft Locking DeviceWithout
DrainRubber, automatic
Shaft MaterialSAE 4140 Carbon Steel
PaintingRAL 5009 203A (ISO 12944 - C2)
Grounding LugsDouble
Fan Cover materialCast Iron
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capYes- Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Type
Electric Motor
Input Phase
3-Phase
Speed
1200RPM
Application
Severe Duty
Horsepower
75HP
Enclosure
TEFC
Enclosure
TEFC
Input Voltage
230VAC
Input Voltage
460VAC
Frame
404T/405T
