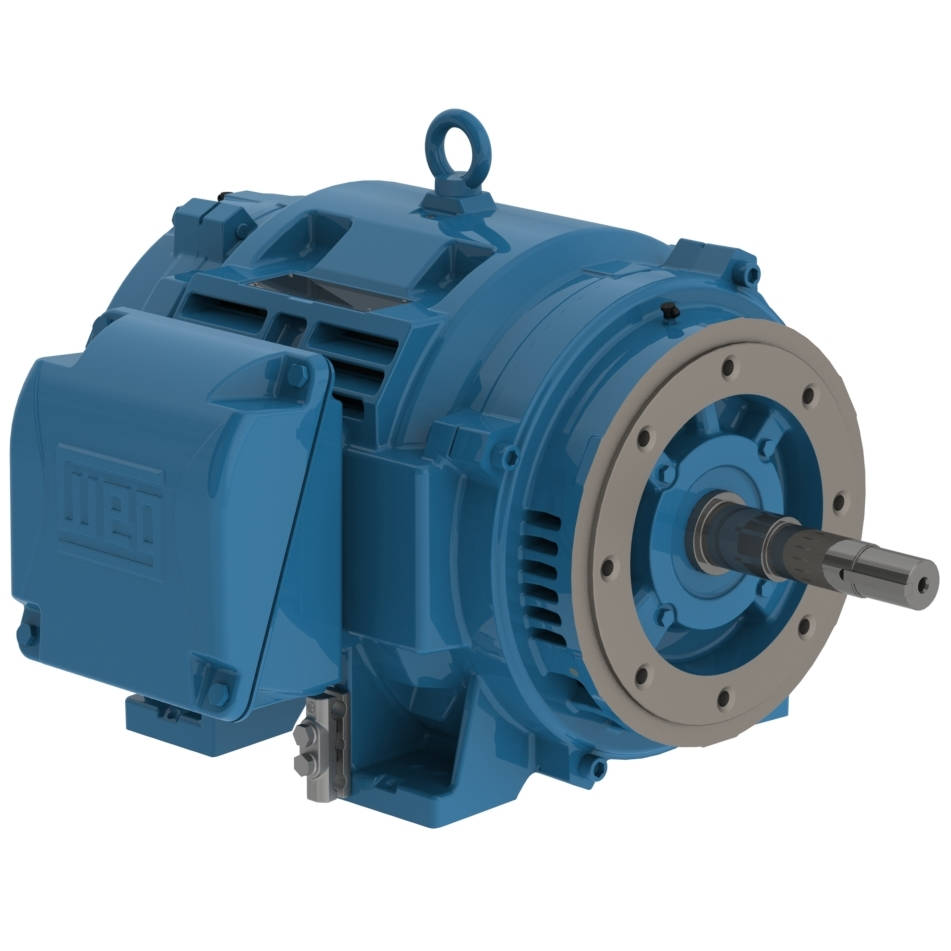

07518OT3H365JP-W40 WEG 75HP JP Close-Coupled Pump Electric Motor, 1800RPM
Enlarge Photo

Product ID: 07518OT3H365JP-W40

07518OT3H365JP-W40 WEG 75HP JP Close-Coupled Pump Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 07518OT3H365JP-W40

Selected accessories will also be added to cart
$6,169.48 / Each
Quantity:
IC01 - ODP, IP23, 364JP/365JP Frame, 575VAC 60Hz 3 Phase, 14270426, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame

Electric Motors

Frame364/5JP
Output75 HP (55 kW)
Number of Poles4
Frequency60 Hz
Rated speed1780 rpm
Slip1.11 %
Rated voltage575 V
Rated current68.4 A
L. R. Amperes465 A
LRC6.8x(Code G)
No load current24.4 A
Rated torque221 ft.lb
Locked rotor torque220 %
Breakdown torque260 %
Locked rotor time25s (cold) 14s (hot)
Moment of inertia (J)16.8 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP23
EnclosureIC01 - ODP
MountingF-1
Rotation?Both (CW and CCW)
Noise level?69.0 dB(A)
Approx. weight?811 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
94.5  95.0  95.0

Power factor

50%75%100%
0.73  0.82  0.85

Features

Frame MaterialCast Iron
Impregnation MethodConstant Resin Flow
Regreasing SystemAt Drive end and Non-drive end
Main terminal box holeNPT 3"
Terminal BlockWithout
Shaft Locking DeviceWithout
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 203A (ISO 12944 - C2)
Grounding LugsDouble
Fan Cover materialWithout Fan Cover
Tropicalized PaintingWithout
Fan materialWithout fan
Bearing capYes- Bearing Cap
Bolt MaterialCarbon Steel
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Connection Cables Quantity6
Type
Electric Motor
Input Phase
3-Phase
Speed
1800RPM
Horsepower
75HP
Enclosure
ODP
Input Voltage
575VAC
Frame
364JP/365JP
