/Products/Electric Motors/3 Phase/WEG 3-Phase Electric Motors/W22 General Purpose, TEFC/Foot Mount/07518ET3E365T-W22 WEG 75HP Severe Duty Electric Motor, 1800RPM

Product ID: 07518ET3E365T-W22

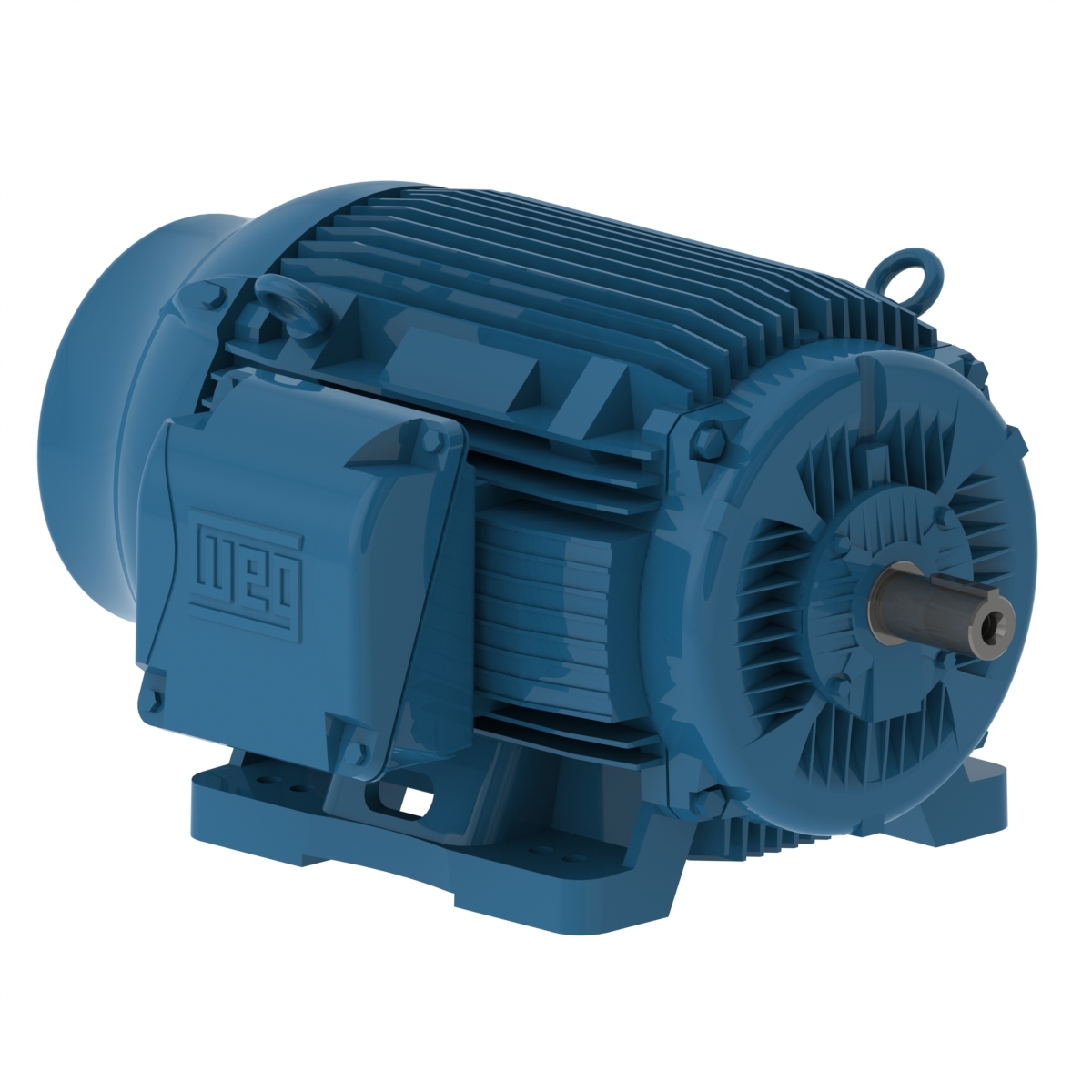

07518ET3E365T-W22 WEG 75HP Severe Duty Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 07518ET3E365T-W22

Selected accessories will also be added to cart

$7,747.45 / Each

Quantity:

IC411 - TEFC, IP55, 364T/365T Frame, 208-230/460VAC 60Hz 3-Phase, 11166657, Foot Mounted, Cast Iron Frame, NEMA Premium Efficiency, 2-3/8" Keyed Shaft

Electric Motors

Frame	364/5T
Output	75 HP (55 kW)
Number of Poles	4
Frequency	60 Hz
Rated speed	1775 rpm
Slip	1.39 %
Rated voltage	208-230/460 V
Rated current	186-168/84.1 A
L. R. Amperes	1190-1076/538 A
LRC	6.4x(Code G)
No load current	51.7-60.0/30.0 A
Rated torque	219 ft.lb
Locked rotor torque	240 %
Breakdown torque	260 %
Locked rotor time	25s (cold) 14s (hot)

Moment of inertia (J)	23.3 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.25
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	67.0 dB(A)
Approx. weight³	939 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
94.5	95.0	95.4

Power factor

50%	75%	100%
0.73	0.82	0.86

Frame	364/5T
Output	60 HP (45 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1475 rpm
Slip	1.67 %
Rated voltage	380 V
Rated current	86.4 A
L. R. Amperes	605 A
LRC	7.0x(Code H)
No load current	29.5 A
Rated torque	211 ft.lb
Locked rotor torque	240 %
Breakdown torque	250 %
Locked rotor time	18s (cold) 10s (hot)

Moment of inertia (J)	23.3 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	63.0 dB(A)
Approx. weight³	939 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
93.7	94.2	94.2

Power factor

50%	75%	100%
0.65	0.78	0.84

Frame	364/5T
Output	60 HP (45 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1480 rpm
Slip	1.33 %
Rated voltage	400 V
Rated current	82.9 A
L. R. Amperes	622 A
LRC	7.5x(Code J)
No load current	31.5 A
Rated torque	210 ft.lb
Locked rotor torque	270 %
Breakdown torque	280 %
Locked rotor time	18s (cold) 10s (hot)

Moment of inertia (J)	23.3 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	63.0 dB(A)
Approx. weight³	939 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
93.6	94.2	94.4

Power factor

50%	75%	100%
0.64	0.77	0.83

Frame	364/5T
Output	60 HP (45 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1480 rpm
Slip	1.33 %
Rated voltage	415 V
Rated current	80.7 A
L. R. Amperes	646 A
LRC	8.0x(Code J)
No load current	33.4 A
Rated torque	210 ft.lb
Locked rotor torque	300 %
Breakdown torque	310 %
Locked rotor time	18s (cold) 10s (hot)

Moment of inertia (J)	23.3 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	80 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	63.0 dB(A)
Approx. weight³	939 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
93.5	94.2	94.6

Power factor

50%	75%	100%
0.62	0.76	0.82

Frame	364/5T
Output	75 HP (55 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1465 rpm
Slip	2.33 %
Rated voltage	380 V
Rated current	103 A
L. R. Amperes	525 A
LRC	5.1x(Code E)
No load current	29.5 A
Rated torque	265 ft.lb
Locked rotor torque	190 %
Breakdown torque	200 %
Locked rotor time	18s (cold) 10s (hot)

Moment of inertia (J)	23.3 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	63.0 dB(A)
Approx. weight³	939 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
94.5	94.1	93.6

Power factor

50%	75%	100%
0.78	0.85	0.87

Frame	364/5T
Output	75 HP (55 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1470 rpm
Slip	2.00 %
Rated voltage	400 V
Rated current	97.0 A
L. R. Amperes	543 A
LRC	5.6x(Code F)
No load current	31.5 A
Rated torque	264 ft.lb
Locked rotor torque	210 %
Breakdown torque	229 %
Locked rotor time	18s (cold) 10s (hot)

Moment of inertia (J)	23.3 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	63.0 dB(A)
Approx. weight³	939 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%	75%	100%
94.5	94.5	94.1

Power factor

50%	75%	100%
0.75	0.83	0.87

Frame	364/5T
Output	75 HP (55 kW)
Number of Poles	4
Frequency	50 Hz
Rated speed	1475 rpm
Slip	1.67 %
Rated voltage	415 V
Rated current	94.2 A
L. R. Amperes	575 A
LRC	6.1x(Code F)
No load current	33.4 A
Rated torque	263 ft.lb
Locked rotor torque	229 %
Breakdown torque	250 %
Locked rotor time	18s (cold) 10s (hot)

Moment of inertia (J)	23.3 sq.ft.lb
Design	B
Insulation Class	F
Service factor	1.00
Temperature rise	105 K
Duty Cycle	Cont.(S1)
Starting Method	Direct On Line
Ambient temperature	-20°C to +40°C
Altitude	1000 m.a.s.l.
Degree of Protection	IP55
Enclosure	IC411 - TEFC
Mounting	F-1
Rotation¹	Both (CW and CCW)
Noise level²	63.0 dB(A)
Approx. weight³	939 lb

(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.
