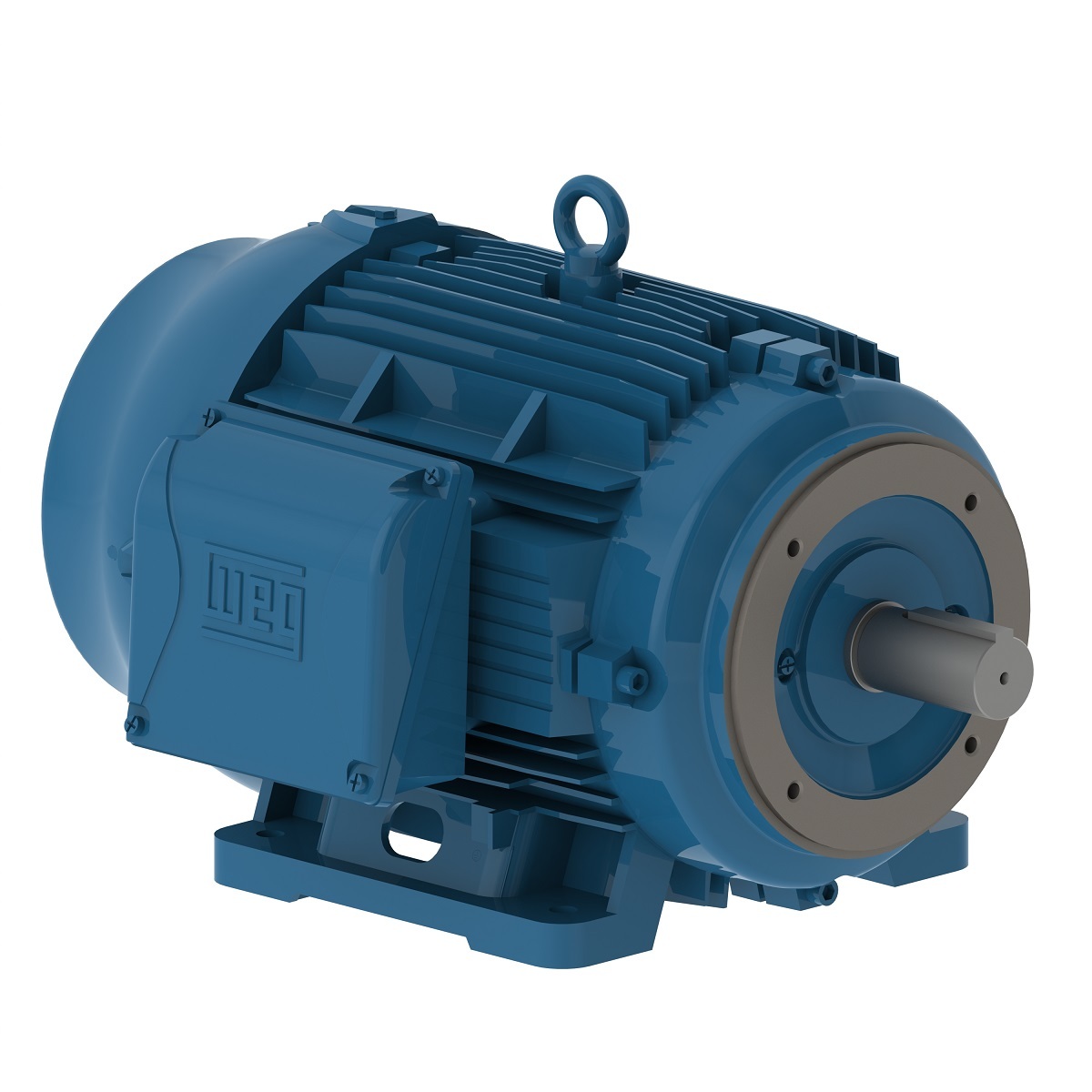

07518ET3E365TC-W22 WEG 75HP Severe Duty Electric Motor, 1800RPM
Enlarge Photo

Product ID: 07518ET3E365TC-W22

07518ET3E365TC-W22 WEG 75HP Severe Duty Electric Motor, 1800RPM

MFG: WEG Electric Corporation
MFG Part Number: 07518ET3E365TC-W22

Selected accessories will also be added to cart
$8,141.72 / Each
Quantity:
IC411 - TEFC, IP55, 364TC/365TC Frame, 230/460VAC 60Hz 3 Phase, 12076589, NEMA Premium Efficiency, Foot Mounted, C-Face, Cast Iron Frame, 2-3/8" Keyed Shaft

Electric Motors

Frame364/5TC
Output75 HP (55 kW)
Number of Poles4
Frequency60 Hz
Rated speed1780 rpm
Slip1.11 %
Rated voltage230/460 V
Rated current174/87.2 A
L. R. Amperes1116/558 A
LRC6.4x(Code G)
No load current66.0/33.0 A
Rated torque221 ft.lb
Locked rotor torque240 %
Breakdown torque260 %
Locked rotor time25s (cold) 14s (hot)
Moment of inertia (J)23.3 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?67.0 dB(A)
Approx. weight?949 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
94.5  95.0  95.4

Power factor

50%75%100%
0.68  0.78  0.83
Frame364/5TC
Output60 HP (45 kW)
Number of Poles4
Frequency50 Hz
Rated speed1480 rpm
Slip1.33 %
Rated voltage380 V
Rated current88.5 A
L. R. Amperes620 A
LRC7.0x(Code H)
No load current33.0 A
Rated torque213 ft.lb
Locked rotor torque210 %
Breakdown torque250 %
Locked rotor time18s (cold) 10s (hot)
Moment of inertia (J)23.3 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?63.0 dB(A)
Approx. weight?949 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
93.7  94.2  94.2

Power factor

50%75%100%
0.68  0.78  0.82
Frame364/5TC
Output60 HP (45 kW)
Number of Poles4
Frequency50 Hz
Rated speed1480 rpm
Slip1.33 %
Rated voltage400 V
Rated current84.9 A
L. R. Amperes637 A
LRC7.5x(Code J)
No load current35.0 A
Rated torque213 ft.lb
Locked rotor torque240 %
Breakdown torque280 %
Locked rotor time18s (cold) 10s (hot)
Moment of inertia (J)23.3 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?63.0 dB(A)
Approx. weight?949 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
93.6  94.2  94.4

Power factor

50%75%100%
0.64  0.75  0.81
Frame364/5TC
Output60 HP (45 kW)
Number of Poles4
Frequency50 Hz
Rated speed1485 rpm
Slip1.00 %
Rated voltage415 V
Rated current82.7 A
L. R. Amperes662 A
LRC8.0x(Code J)
No load current38.0 A
Rated torque212 ft.lb
Locked rotor torque260 %
Breakdown torque310 %
Locked rotor time18s (cold) 10s (hot)
Moment of inertia (J)23.3 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?63.0 dB(A)
Approx. weight?949 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
93.5  94.2  94.6

Power factor

50%75%100%
0.61  0.73  0.80
Frame364/5TC
Output75 HP (55 kW)
Number of Poles4
Frequency50 Hz
Rated speed1470 rpm
Slip2.00 %
Rated voltage380 V
Rated current106 A
L. R. Amperes541 A
LRC5.1x(Code E)
No load current33.0 A
Rated torque268 ft.lb
Locked rotor torque170 %
Breakdown torque200 %
Locked rotor time18s (cold) 10s (hot)
Moment of inertia (J)23.3 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?63.0 dB(A)
Approx. weight?949 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
94.5  94.1  93.6

Power factor

50%75%100%
0.75  0.82  0.84
Frame364/5TC
Output75 HP (55 kW)
Number of Poles4
Frequency50 Hz
Rated speed1475 rpm
Slip1.67 %
Rated voltage400 V
Rated current102 A
L. R. Amperes571 A
LRC5.6x(Code F)
No load current35.0 A
Rated torque267 ft.lb
Locked rotor torque200 %
Breakdown torque220 %
Locked rotor time18s (cold) 10s (hot)
Moment of inertia (J)23.3 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?63.0 dB(A)
Approx. weight?949 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
94.5  94.5  94.1

Power factor

50%75%100%
0.70  0.80  0.83
Frame364/5TC
Output75 HP (55 kW)
Number of Poles4
Frequency50 Hz
Rated speed1480 rpm
Slip1.33 %
Rated voltage415 V
Rated current98.7 A
L. R. Amperes602 A
LRC6.1x(Code G)
No load current38.0 A
Rated torque266 ft.lb
Locked rotor torque210 %
Breakdown torque240 %
Locked rotor time18s (cold) 10s (hot)
Moment of inertia (J)23.3 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?63.0 dB(A)
Approx. weight?949 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
94.1  94.5  94.5

Power factor

50%75%100%
0.67  0.78  0.82

Features

Frame MaterialCast Iron
Impregnation MethodConstant Resin Flow
Regreasing SystemAt Drive end and Non-drive end
Main terminal box holeNPT 3"
Terminal BlockWithout
Shaft Locking DeviceWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 203A (ISO 12944 - C2)
Grounding LugsDouble
Fan Cover materialCast Iron
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capYes- Bearing Cap
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Type
Electric Motor
Input Phase
3-Phase
Speed
1800RPM
Application
Severe Duty
Horsepower
75HP
Enclosure
TEFC
Enclosure
TEFC
Input Voltage
230VAC
Input Voltage
460VAC
Frame
364TC/365TC
