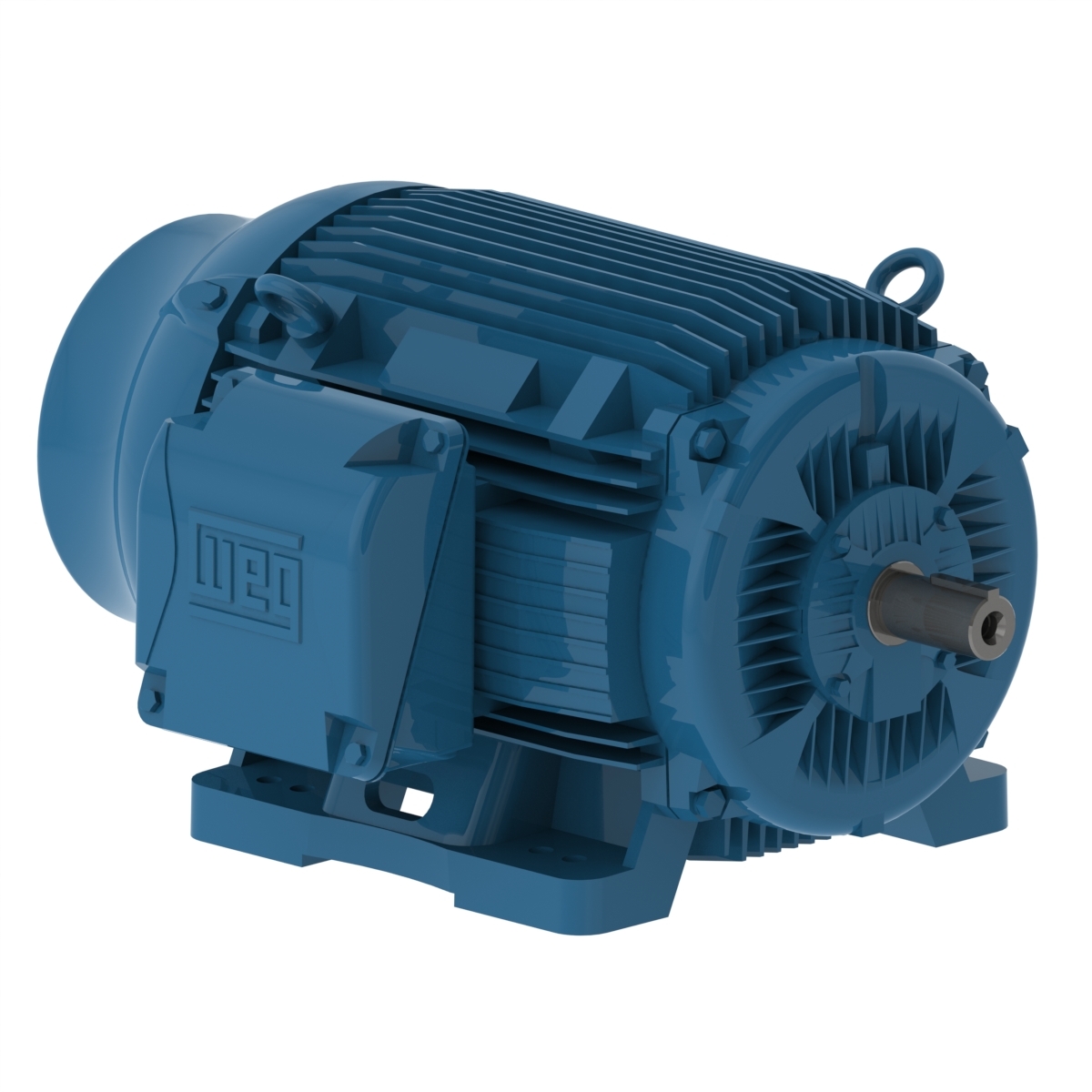

07536ET3E365TS-W22 WEG 75HP Severe Duty Electric Motor, 3600RPM
Enlarge Photo

Product ID: 07536ET3E365TS-W22

07536ET3E365TS-W22 WEG 75HP Severe Duty Electric Motor, 3600RPM

MFG: WEG Electric Corporation
MFG Part Number: 07536ET3E365TS-W22

Selected accessories will also be added to cart
$8,090.99 / Each
Quantity:
IC411 - TEFC, IP55, 364TS/365TS Frame, 230/460VAC 60Hz 3 Phase, 11355296, NEMA Premium Efficiency, Foot Mounted, Cast Iron Frame, 1-7/8" Keyed Shaft

Electric Motors

Frame364/5TS
Output75 HP (55 kW)
Number of Poles2
Frequency60 Hz
Rated speed3555 rpm
Slip1.25 %
Rated voltage230/460 V
Rated current164/81.9 A
L. R. Amperes1097/549 A
LRC6.7x(Code G)
No load current40.0/20.0 A
Rated torque111 ft.lb
Locked rotor torque200 %
Breakdown torque250 %
Locked rotor time18s (cold) 10s (hot)
Moment of inertia (J)11.9 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.25
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?79.0 dB(A)
Approx. weight?857 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
92.4  93.6  93.6

Power factor

50%75%100%
0.83  0.88  0.90
Frame364/5TS
Output50 HP (37 kW)
Number of Poles2
Frequency50 Hz
Rated speed2960 rpm
Slip1.33 %
Rated voltage380 V
Rated current66.7 A
L. R. Amperes527 A
LRC7.9x(Code H)
No load current19.0 A
Rated torque88.7 ft.lb
Locked rotor torque240 %
Breakdown torque310 %
Locked rotor time12s (cold) 7s (hot)
Moment of inertia (J)11.9 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?74.0 dB(A)
Approx. weight?857 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
91.2  92.5  93.7

Power factor

50%75%100%
0.75  0.85  0.90
Frame364/5TS
Output50 HP (37 kW)
Number of Poles2
Frequency50 Hz
Rated speed2965 rpm
Slip1.17 %
Rated voltage400 V
Rated current64.8 A
L. R. Amperes557 A
LRC8.6x(Code J)
No load current20.0 A
Rated torque88.6 ft.lb
Locked rotor torque260 %
Breakdown torque340 %
Locked rotor time12s (cold) 7s (hot)
Moment of inertia (J)11.9 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?74.0 dB(A)
Approx. weight?857 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
91.5  93.0  93.7

Power factor

50%75%100%
0.72  0.83  0.88
Frame364/5TS
Output50 HP (37 kW)
Number of Poles2
Frequency50 Hz
Rated speed2970 rpm
Slip1.00 %
Rated voltage415 V
Rated current62.4 A
L. R. Amperes574 A
LRC9.2x(Code K)
No load current21.5 A
Rated torque88.4 ft.lb
Locked rotor torque290 %
Breakdown torque370 %
Locked rotor time12s (cold) 7s (hot)
Moment of inertia (J)11.9 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise80 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?74.0 dB(A)
Approx. weight?857 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
91.8  93.1  93.7

Power factor

50%75%100%
0.70  0.82  0.88
Frame364/5TS
Output75 HP (55 kW)
Number of Poles2
Frequency50 Hz
Rated speed2940 rpm
Slip2.00 %
Rated voltage380 V
Rated current99.4 A
L. R. Amperes527 A
LRC5.3x(Code E)
No load current19.0 A
Rated torque134 ft.lb
Locked rotor torque160 %
Breakdown torque200 %
Locked rotor time12s (cold) 7s (hot)
Moment of inertia (J)11.9 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?74.0 dB(A)
Approx. weight?857 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
92.4  93.0  92.4

Power factor

50%75%100%
0.86  0.90  0.91
Frame364/5TS
Output75 HP (55 kW)
Number of Poles2
Frequency50 Hz
Rated speed2945 rpm
Slip1.83 %
Rated voltage400 V
Rated current94.8 A
L. R. Amperes559 A
LRC5.9x(Code F)
No load current20.0 A
Rated torque134 ft.lb
Locked rotor torque175 %
Breakdown torque220 %
Locked rotor time12s (cold) 7s (hot)
Moment of inertia (J)11.9 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?74.0 dB(A)
Approx. weight?857 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
92.4  93.0  93.0

Power factor

50%75%100%
0.84  0.89  0.90
Frame364/5TS
Output75 HP (55 kW)
Number of Poles2
Frequency50 Hz
Rated speed2950 rpm
Slip1.67 %
Rated voltage415 V
Rated current91.4 A
L. R. Amperes576 A
LRC6.3x(Code F)
No load current21.5 A
Rated torque134 ft.lb
Locked rotor torque190 %
Breakdown torque240 %
Locked rotor time12s (cold) 7s (hot)
Moment of inertia (J)11.9 sq.ft.lb
DesignB
Insulation ClassF
Service factor1.00
Temperature rise105 K
Duty CycleCont.(S1)
Starting MethodDirect On Line
Ambient temperature-20?C to +40?C
Altitude1000 m.a.s.l.
Degree of ProtectionIP55
EnclosureIC411 - TEFC
MountingF-1
Rotation?Both (CW and CCW)
Noise level?74.0 dB(A)
Approx. weight?857 lb
(1) Looking the motor from the shaft end.; (2) Measured at 1m and with tolerance of +3dB(A).; (3) Approximate weight, subject to be changed after manufacturing process.; (4) At 100% of full load.

Efficiency

50%75%100%
93.0  93.6  93.0

Power factor

50%75%100%
0.83  0.88  0.90

Features

Frame MaterialCast Iron
Impregnation MethodConstant Resin Flow
Regreasing SystemAt Drive end and Non-drive end
Main terminal box holeNPT 3"
Terminal BlockWithout
Shaft Locking DeviceWithout
DrainRubber, automatic
Shaft MaterialSAE 1040/45 Carbon Steel
PaintingRAL 5009 203A (ISO 12944 - C2)
Grounding LugsDouble
Fan Cover materialCast Iron
Tropicalized PaintingWithout
Fan materialPlastic
Bearing capYes- Bearing Cap
Winding thermal protectionThermistor - 2 wires 1 per phase 155?C
Balancing Method1/2 Key
Drip CoverWithout
Overload protector (phenolic)Without overload protector
Type
Electric Motor
Input Phase
3-Phase
Speed
3600RPM
Application
Severe Duty
Horsepower
75HP
Enclosure
TEFC
Enclosure
TEFC
Input Voltage
230VAC
Input Voltage
460VAC
Frame
364TS/365TS
